Application and functionality

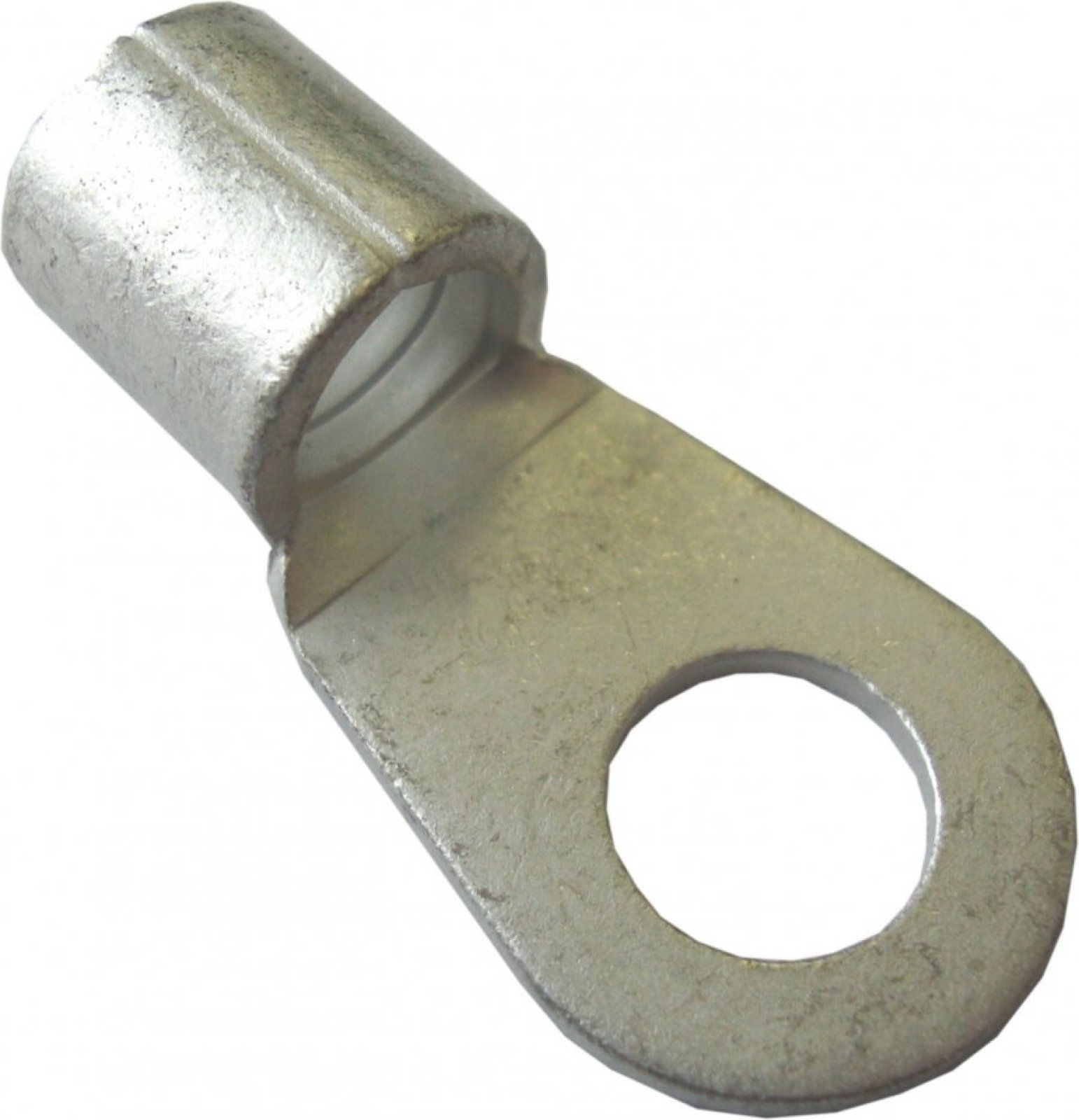

These uninsulated starter eyes are designed for connecting 1mm² electrical cables to M4 bolts. They are often used in the automotive sector for connecting cables to battery terminals and other electrical components.

Advantages of uninsulated starter eyes

• Direct inspection: The lack of insulation allows for visual inspection of the connection for correct installation.
• Flexibility in use: Suitable for both soldering and crimping, depending on preference and application.
• Compact design: Takes up less space, which is useful in tight installations.

Specifications

• Conductor cross-section: 1mm²
• Bolt size: M4
• Material: Copper with tinned finish for improved corrosion resistance
• Packaging: Set of 10 pieces

Installation instructions

1. Preparing the cable: Strip about 5 mm of insulation from the cable to expose the copper conductor.
2. Placing the starter eye: Slide the starter eye over the exposed conductor until it is fully inside the sleeve.
3. Securing: Crimp the starter eye firmly with a suitable crimping tool or solder the connection for extra strength.
4. Mounting: Attach the starter eye to the desired M4 bolt and tighten securely.

Areas of application

• Automotive: Connecting cables to battery terminals, starters, and other electrical components.
• Industrial installations: Connections in switch cabinets and electrical panels.
• Household appliances: Repair and maintenance of electrical appliances.

Compatibility

These starter eyes are compatible with standard 1mm² cables and M4 bolts, making them versatile for various applications.
