Application and functionality

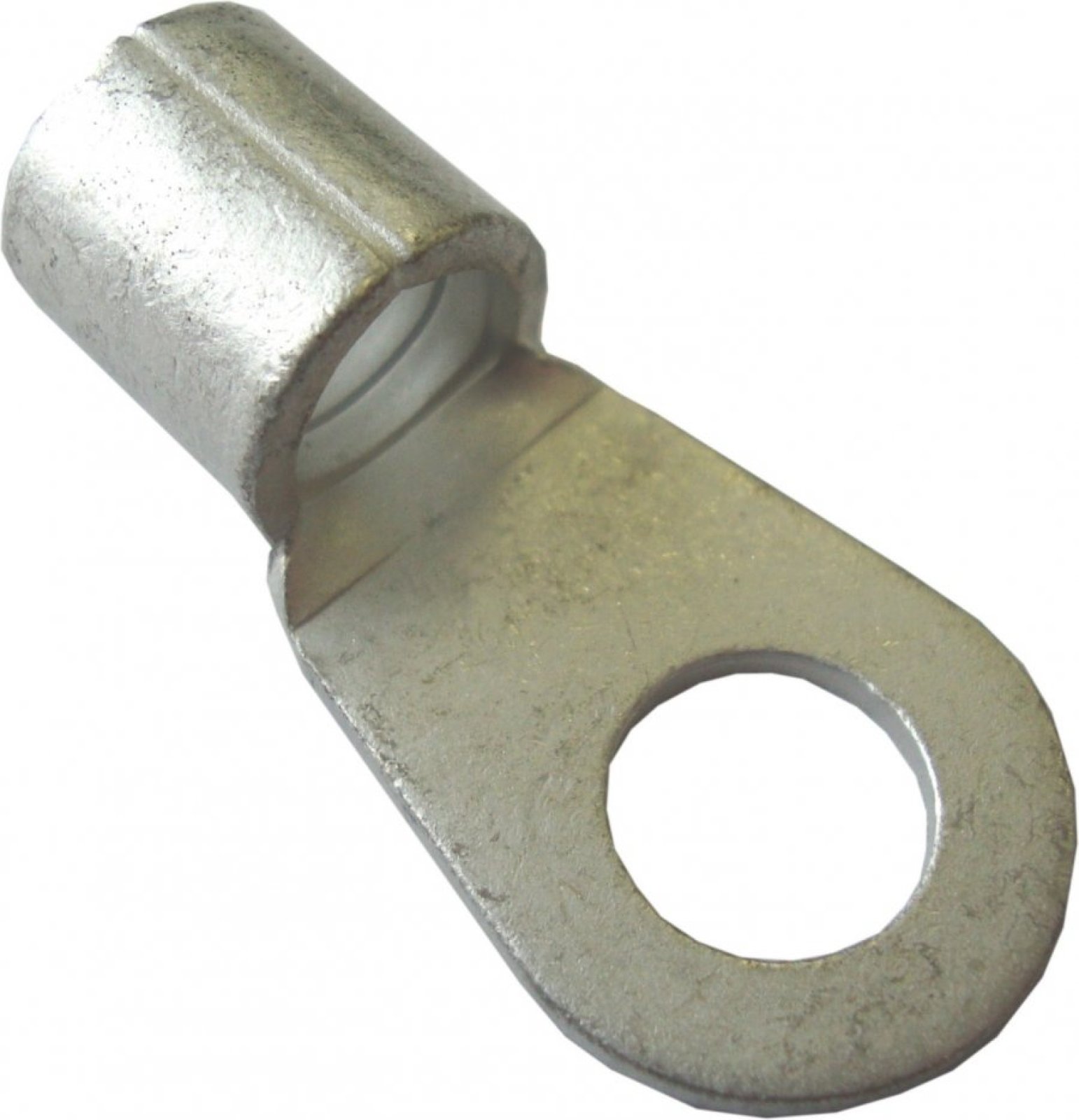

The uninsulated ring terminal is designed for connecting 2.5 mm² cables to M12 bolts. This type of cable lug is widely used in the automotive sector to create strong and reliable electrical connections.

Material and construction

This ring terminal is made from high-quality copper, ensuring excellent electrical conductivity. The uninsulated design allows for visual inspection of the connection and offers flexibility when soldering or crimping the cable.

Specifications

• Nominal cross-section: 2.5 mm²
• Bolt size: M12
• Material: Copper
• Insulation: None

Advantages of uninsulated ring terminals

• Visual inspection: The absence of insulation makes it easy to check the quality of the connection.
• Flexibility: Suitable for both soldering and crimping, depending on preference and application.
• Versatile: Applicable in various electrical systems within the automotive sector.

Installation instructions

For an optimal connection, it is important to strip the cable correctly and securely attach the ring terminal with appropriate tools. Ensure the connection is firm to minimize resistance and potential malfunctions.

Areas of application

This type of ring terminal is often used in:

• Battery connections: For connecting cables to battery terminals.
• Grounding systems: For creating reliable ground connections.
• Electrical wiring: In various vehicles for connecting electrical components.

Maintenance and inspection

Regularly checking the connections is recommended to prevent corrosion or loosening. If there are signs of wear or damage, the ring terminal should be replaced to ensure safety and functionality.
