Application and functionality

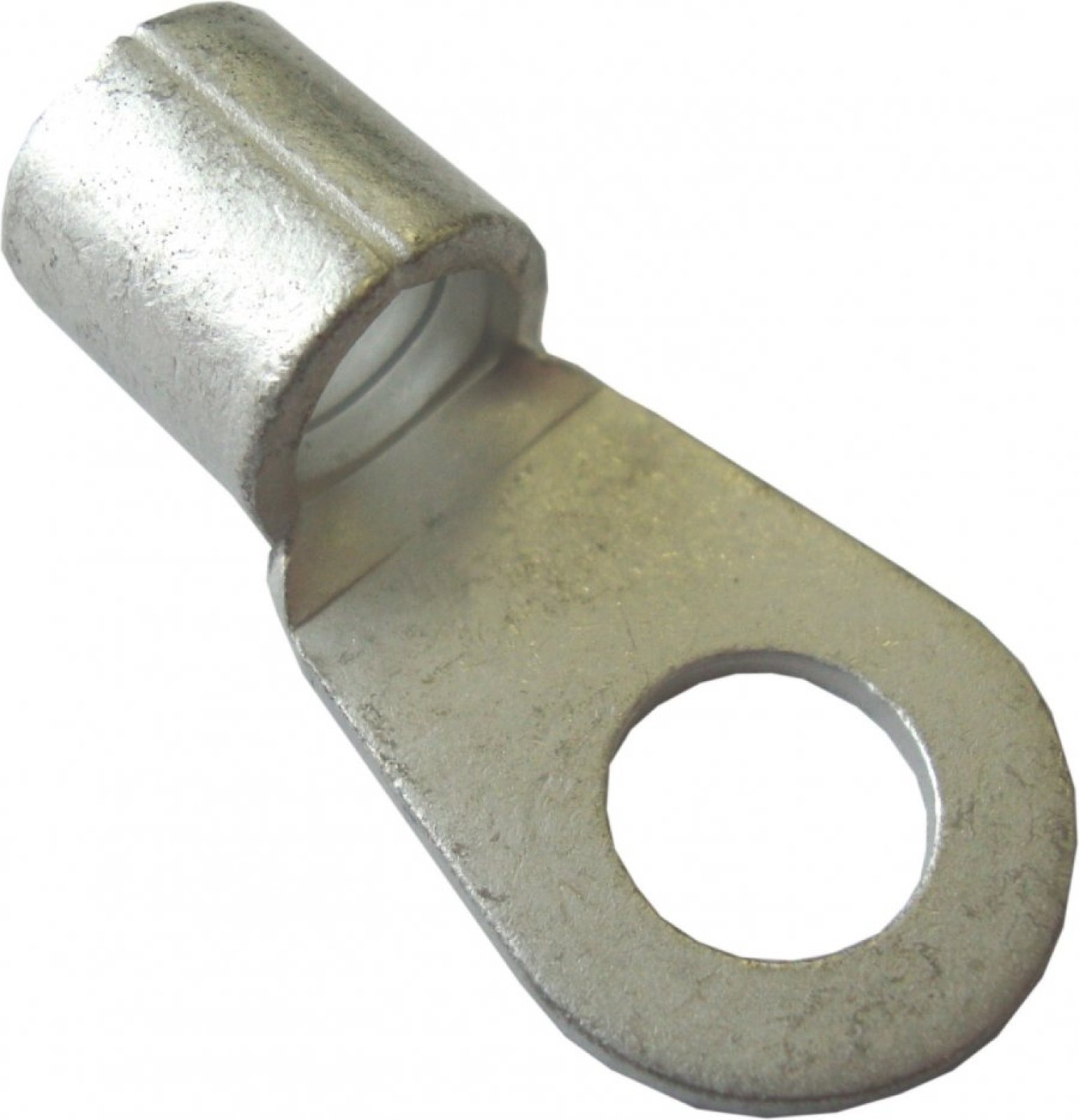

The uninsulated ring terminal is designed for connecting 2.5 mm² cables with M3.5 bolts. This makes it suitable for various electrical applications, such as in cars, industrial machines, and household appliances.

Technical specifications

• Cable cross-section: 2.5 mm²
• Bolt hole diameter: M3.5
• Type: Uninsulated ring terminal
• Standard: DIN 46234

Advantages of uninsulated ring terminals

• Flexibility: Suitable for various applications without the limitations of insulation material.
• Easy installation: Quick and simple attachment to cables using a crimping tool.
• Reliable connection: Ensures a strong and durable electrical connection.

Installation instructions

1. Preparation: Strip the end of the 2.5 mm² cable to a length that matches the crimp section of the ring terminal.
2. Placement: Slide the ring terminal over the stripped part of the cable.
3. Crimping: Use a suitable crimping tool to securely attach the ring terminal to the cable.
4. Attachment: Place the ring terminal over the M3.5 bolt and tighten the nut for a solid connection.

Application areas

• Automotive: Connections in car electrical systems.
• Industrial installations: Connections in machines and equipment.
• Household appliances: Electrical connections in various devices.

Compatibility and alternatives

This ring terminal is specifically designed for 2.5 mm² cables and M3.5 bolts. For other cable cross-sections or bolt sizes, alternative ring terminals are available, such as:

• 1-2.5 mm² M4: Suitable for slightly larger bolts.
• 0.5-1 mm² M3: For thinner cables and smaller bolts.

Quality standards

This product complies with the DIN 46234 standard, which guarantees high quality and reliability in electrical connections.
