Compact and powerful design

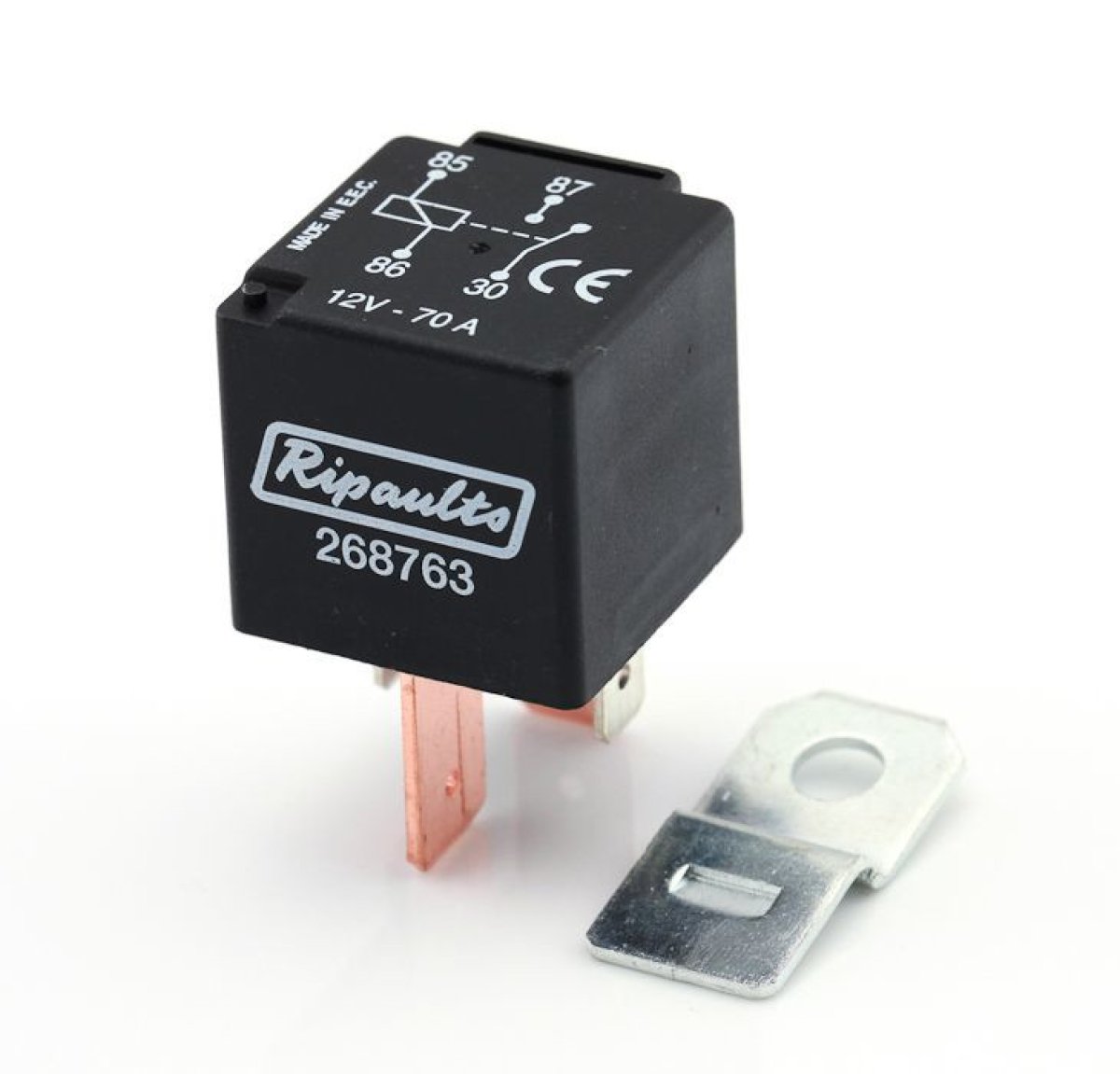

The Ripca starter relay 12V 70A 4-pin combines robust capacity with a compact size. With dimensions of approximately 26 x 28 x 26 mm (LxWxH) without terminals and mounting tab, and a height of 42 mm including terminals, this relay fits effortlessly into various installations.

High current capacity

This relay is designed to switch a nominal current of 70 amps, making it suitable for applications that require high current.

Easy installation

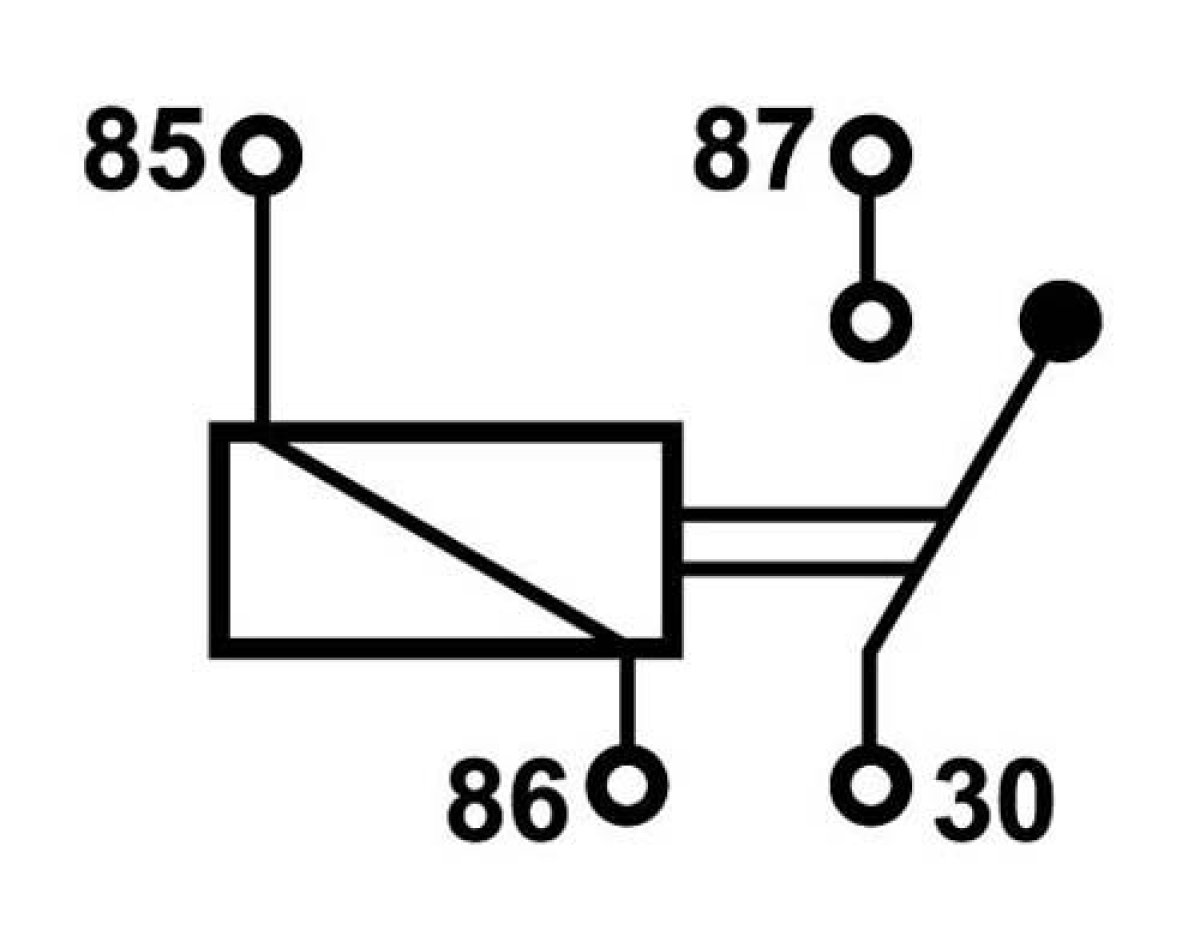

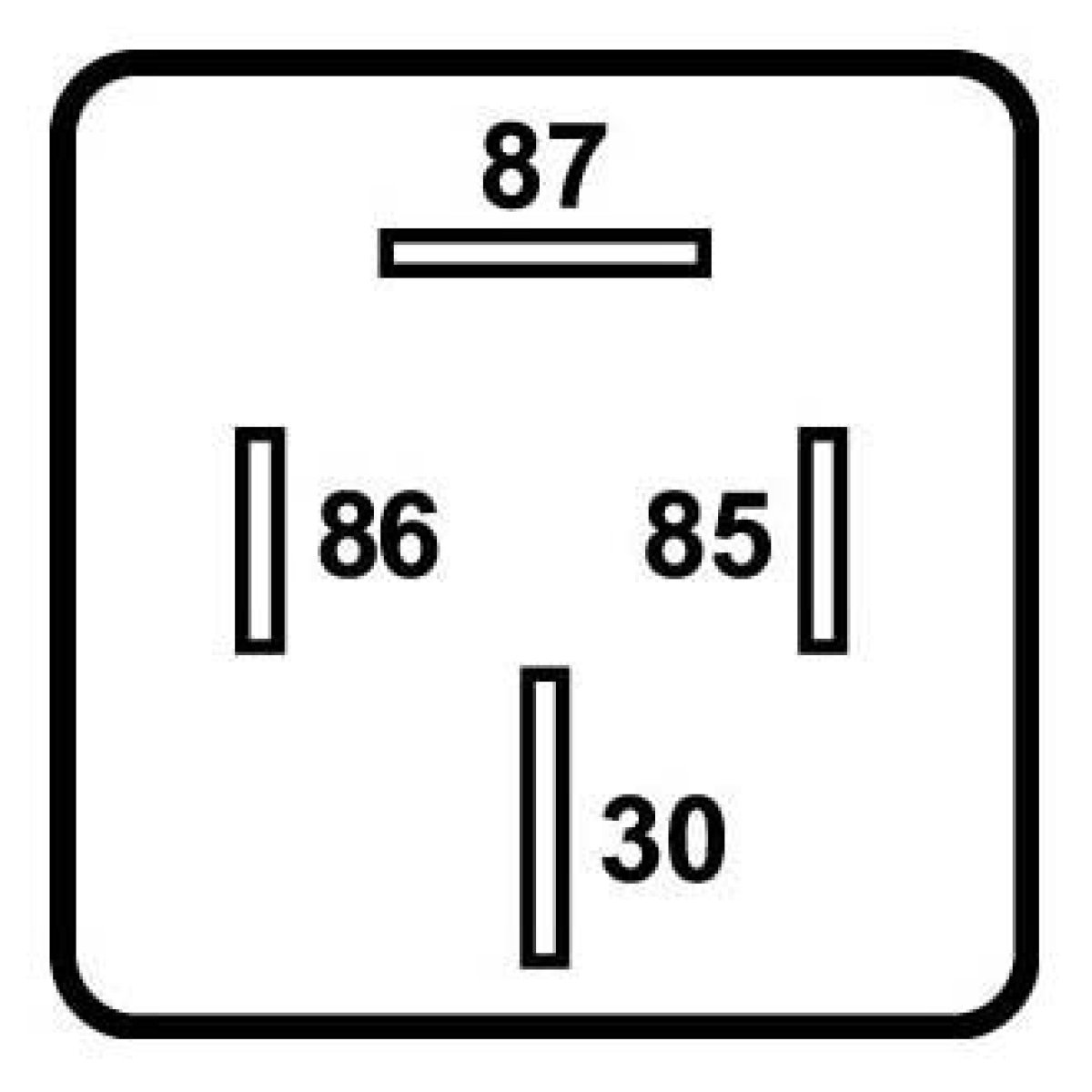

The relay features four terminals:

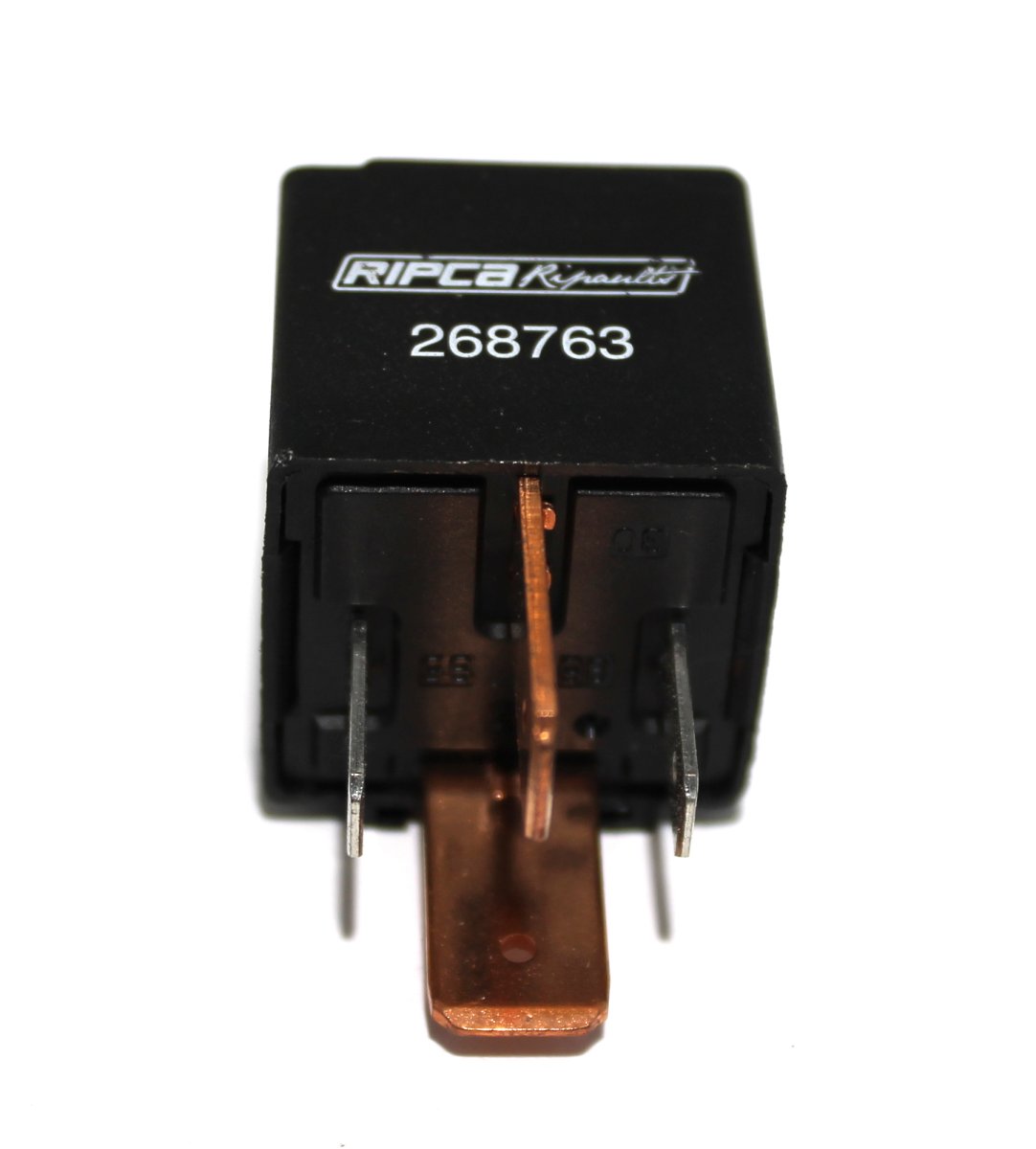

• 2 terminals of 6.3 mm : Suitable for standard flat connectors.
• 2 terminals of 9.5 mm : For applications that require greater current capacity.

This configuration ensures flexible and easy installation in different electrical systems.

Versatile application possibilities

Thanks to the high current capacity and compact design, this relay is ideal for various applications, including:

• Automotive applications : Starting systems and other high-power circuits.
• Industrial machines : Control of heavy electrical loads.
• Marine installations : Reliable switching solutions for marine applications.

Compatibility with relay sockets

For safe and organized mounting, the relay is compatible with various relay sockets, such as:

• RELH005B
• RELH10247
• RELH55

Note: when using the RELH55 relay socket, the installation may be tighter. Using separate cable lugs may offer a better solution in some situations.

Reliable performance

The Ripca starter relay is designed for durability and reliability, even under tough conditions. It withstands high currents and provides consistent performance over a long lifespan.

Specifications

• Voltage : 12V
• Current capacity : 70A
• Number of pins : 4
• Dimensions : 26 x 28 x 26 mm (LxWxH) without terminals and mounting tab; 42 mm height including terminals
• Terminals : 2 x 6.3 mm and 2 x 9.5 mm

With the Ripca starter relay 12V 70A 4-pin, you choose a powerful and compact solution for your electrical circuits.
