Reliable power switching for heavy-duty applications

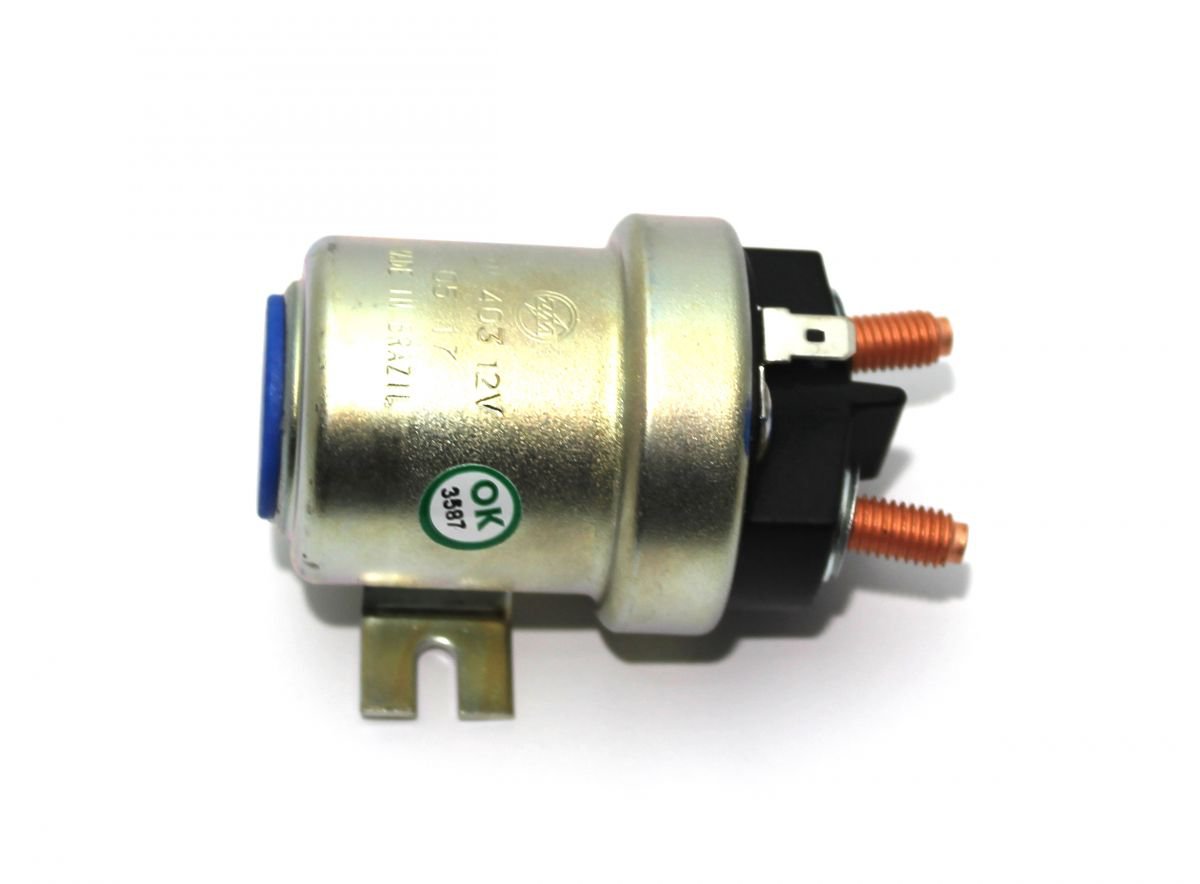

This 12V relay is designed to deliver a continuous current of 200 amps, with a peak current capacity of up to 800 amps for a maximum of 5 seconds. This makes it ideal for applications with high current demands, such as starter motors and powerful audio installations.

Robust construction and dimensions

With a total length of 104 mm and a diameter of 54 mm, this relay is compact and sturdy. The housing is designed to withstand the harsh conditions in automotive environments, ensuring a long lifespan and reliable performance.

Easy installation and compatibility

The relay features four terminals, including two M8 bolts for the main connections and two 6.3 mm tab terminals for the control current. This configuration allows for a simple and safe installation in various vehicles and systems.

• Voltage: 12V
• Continuous current: 200A
• Peak current: 800A (max. 5 seconds)
• Dimensions: Length 104 mm, diameter 54 mm
• Connections: 2x M8 bolt, 2x 6.3 mm tab

Versatile applications

This relay is suitable for a wide range of applications, including:

• Starter motors
• Electric winches
• Heavy-duty audio installations
• Other high-power electrical systems

Durability and performance

Thanks to high-quality materials and construction, this relay offers reliable performance under tough conditions. It is resistant to vibrations and temperature fluctuations, which is essential for use in vehicles and industrial applications.

Technical specifications

• Voltage: 12V
• Continuous current: 200A
• Peak current: 800A (max. 5 seconds)
• Dimensions: Length 104 mm, diameter 54 mm
• Connections: 2x M8 bolt, 2x 6.3 mm tab

With this 12V 200A relay, you are assured of a reliable and powerful switching solution for all your heavy-duty electrical applications.
