Reliable switching for your vehicle

This 24V micro changeover relay with a switching capacity of 5A for the break contact and 10A for the make contact is designed to ensure reliable switching in your vehicle. Thanks to the built-in diode, the lifespan of electronic components is extended.

Built-in diode for protection

The integrated diode protects electronic switches and control units from harmful inductive voltages that occur when switching off the coil. This prevents possible damage to sensitive electronic systems.

Compact and versatile design

With dimensions of 15 x 23 x 26 mm (excluding terminals), this relay is compact and easy to integrate into various applications. It features five terminals: two 6.3 mm for the make contact and three 4.8 x 0.8 mm for the coil and break contact.

Easy installation

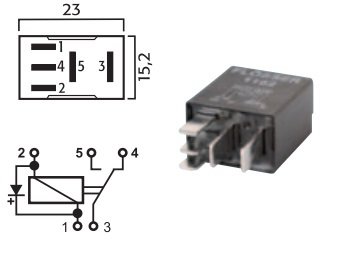

The terminals are as follows:

• 1 and 2 : Coil (mind the polarity)
• 3 : P-contact
• 4 : Break contact
• 5 : Make contact

For optimal installation, suitable relay sockets such as RELH003B and RELH705 can be used, or separate slide connectors.

Applications

This relay is ideal for applications where electronic control units are used to operate switches, such as in modern vehicles and industrial systems.

Specifications

• Voltage : 24V
• Switching capacity : 5A (break contact), 10A (make contact)
• Terminals : 5-pin
• Dimensions : 15 x 23 x 26 mm (excluding terminals)
• Terminals : Two 6.3 mm for make contact, three 4.8 x 0.8 mm for coil and break contact

With this micro changeover relay, you ensure efficient and safe switching in your vehicle or system.
