Reliable switching for your electrical systems

This 24V micro changeover relay offers an efficient solution for switching electrical circuits in various applications. With a switching capacity of 5A for the break contact and 10A for the make contact, this relay is suitable for a wide range of loads.

Built-in resistor for protection

The integrated resistor in parallel with the coil absorbs voltage spikes that occur when the relay is switched off. This protects connected electronic switches and prevents damage to components such as switches with built-in LEDs.

Compact and versatile design

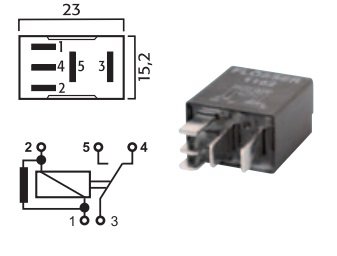

With dimensions of 15 x 23 x 26 mm (excluding terminals), this micro relay is compact and easy to integrate into existing systems. The connections are as follows:

• Two 6.3 mm terminals for the make contact
• Three 4.8 x 0.8 mm terminals for the coil and break contact

Easy installation and compatibility

This relay is compatible with various relay sockets, such as the RELH003B and RELH705. For a safe and reliable connection, separate slide connectors can also be used.

Applications in various sectors

Thanks to the built-in resistor and compact size, this micro changeover relay is ideal for use in:

• Automotive applications
• Industrial automation
• Electronic circuits

Technical specifications

• Voltage: 24V
• Switching capacity: 5A (break contact), 10A (make contact)
• Connections:
• 2 x 6.3 mm terminals for make contact
• 3 x 4.8 x 0.8 mm terminals for coil and break contact
• Dimensions: 15 x 23 x 26 mm (excluding terminals)

Advantages at a glance

• Protection against voltage spikes thanks to built-in resistor
• Compact design for easy integration
• Suitable for various applications and loads

With this micro changeover relay, you choose a reliable and efficient switching solution that protects and optimizes your electrical systems.
