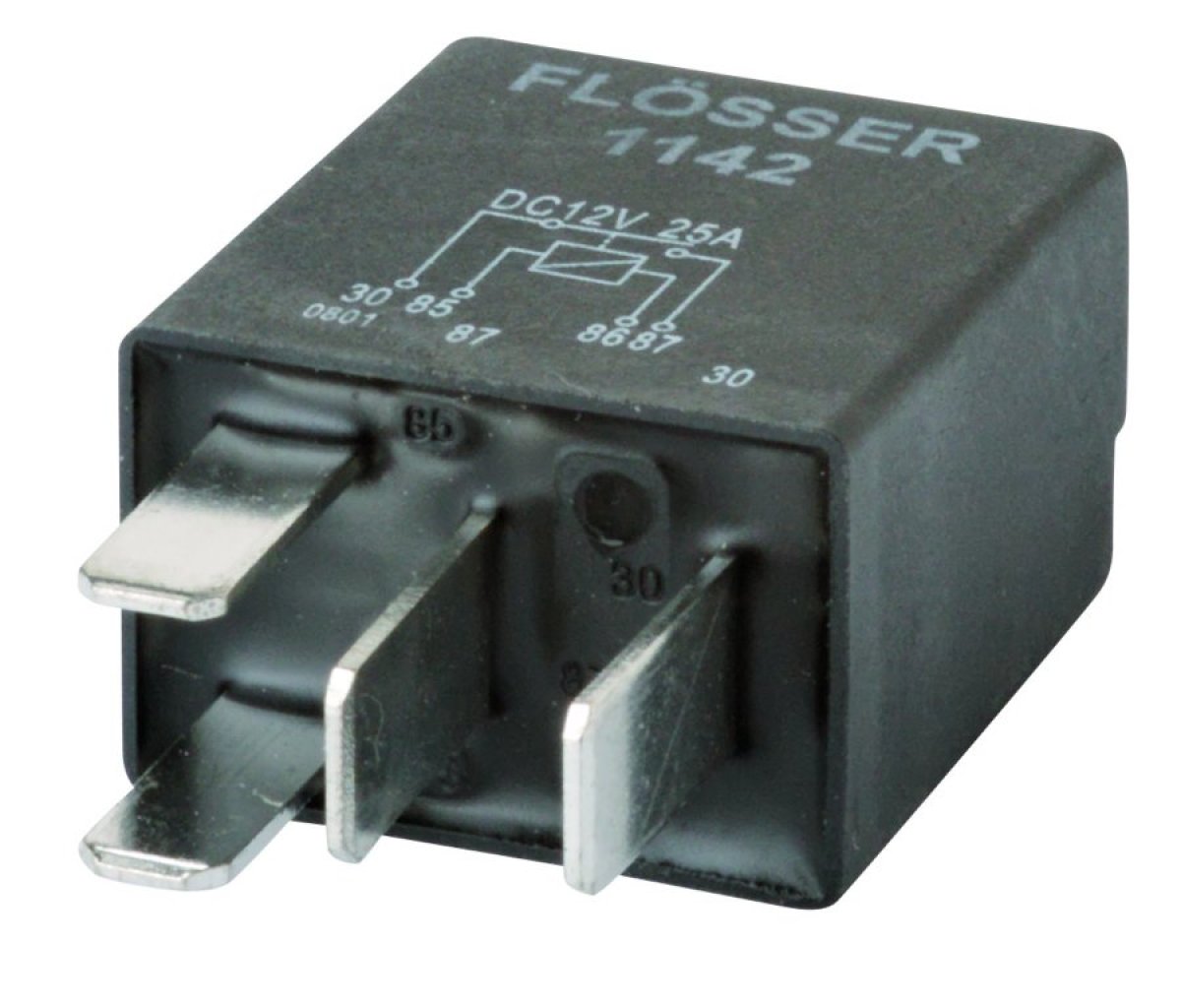

Reliable power switching for your vehicle

This micro contact make relay is designed to switch a nominal current of 25A at a voltage of 12V. Thanks to the built-in diode, the induction voltage is effectively suppressed when the coil is switched off, extending the lifespan of connected electronic components.

Compact and versatile design

With dimensions of 22.8 x 15.3 x 25.5 mm, this relay fits easily into tight spaces within your car's electrical system. The connections consist of two 6.3 x 0.8 mm and two 4.8 x 0.8 mm contacts, ensuring a simple and secure installation.

Applications in the automotive sector

This relay is ideal for switching various electrical circuits in vehicles, such as lighting, heating systems, and other accessories. The built-in diode protects sensitive electronics against voltage spikes, which is especially important when using modern vehicle electronics.

Technical specifications

• Nominal voltage: 12V
• Nominal current: 25A
• Dimensions: 22.8 x 15.3 x 25.5 mm
• Connections:
• 2 x 6.3 x 0.8 mm
• 2 x 4.8 x 0.8 mm
• Built-in diode: Yes

Installation and compatibility

This relay is compatible with standard micro relay sockets and can be easily installed in existing electrical systems. Ensure the polarity is correct when connecting to prevent damage to the diode. The compact dimensions make it suitable for use in various vehicles and applications.

Durability and reliability

The robust construction and the presence of a diode ensure a long lifespan and reliable operation, even under tough conditions. This makes the relay an excellent choice for both professional mechanics and DIYers looking for a high-quality component for their vehicle.

Important considerations

When installing this relay, it is essential to respect the correct polarity. The diode is designed to suppress voltage spikes but can be damaged if the connections are made incorrectly. Consult the technical documentation or a professional if you are unsure about the installation.

Summary

This micro contact make relay 12V 25A with diode offers a reliable and efficient solution for switching electrical circuits in vehicles. The compact size, easy installation, and built-in protection make it a valuable addition to any electrical system.
