Compatibility and Application

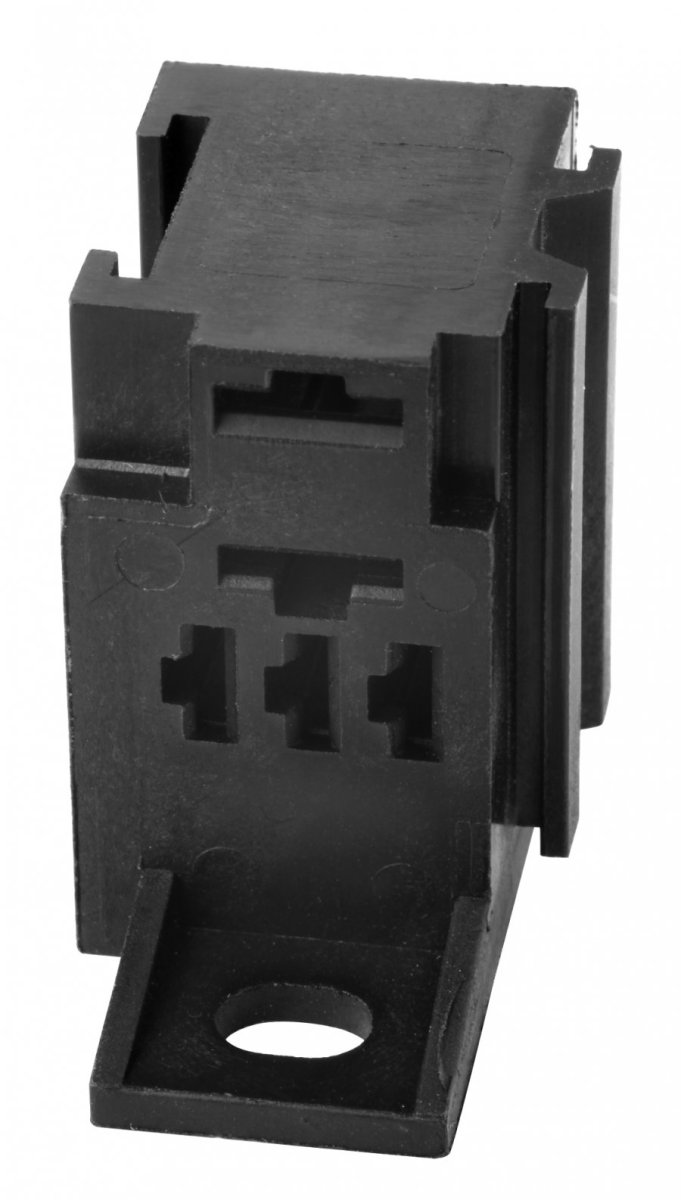

This 5-pin relay socket is designed for use with standard mini relays. Thanks to its universal fit, this socket is suitable for almost all mini relays with up to five 6.3 mm terminals. This makes it a versatile choice for various electrical applications.

Ease of Installation

The relay socket features screw terminals, ensuring simple and safe installation. The compact dimensions of 29 x 25 x 25 mm allow the socket to be used either standalone or mounted in a thin plate of about 1 mm thickness. For this, a rectangular cutout of approximately 24 x 22 mm is required, with extra cutouts on both sides. The socket then protrudes 7 mm above the plate and 16 mm below it.

Technical Specifications

• Number of pins: 5
• Terminals: 6.3 mm
• Dimensions: 29 x 25 x 25 mm
• Mounting: Standalone or in thin plate (1 mm thickness)

Application Possibilities

This relay socket is ideal for use in various electrical systems, including:

• Automotive applications: Suitable for installation in cars for connecting various relays.
• Industrial installations: Applicable in machines and equipment where mini relays are used.
• Household appliances: Can be used in various electronic devices to facilitate relay connections.

Advantages

• Universal compatibility: Suitable for almost all mini relays with 6.3 mm terminals.
• Easy installation: Thanks to the screw terminals and compact size, installation is quick and easy.
• Flexible mounting: Can be used standalone or mounted in a thin plate, depending on the application.

Note

When installing, it is important to use the correct terminals for the wire thickness. Standard terminals are supplied for wires of 1.0-2.5 mm². For thicker or thinner wires, other terminals are available with order number 3-2922... Make sure to use the correct terminals to ensure a safe and reliable connection.
