Overview

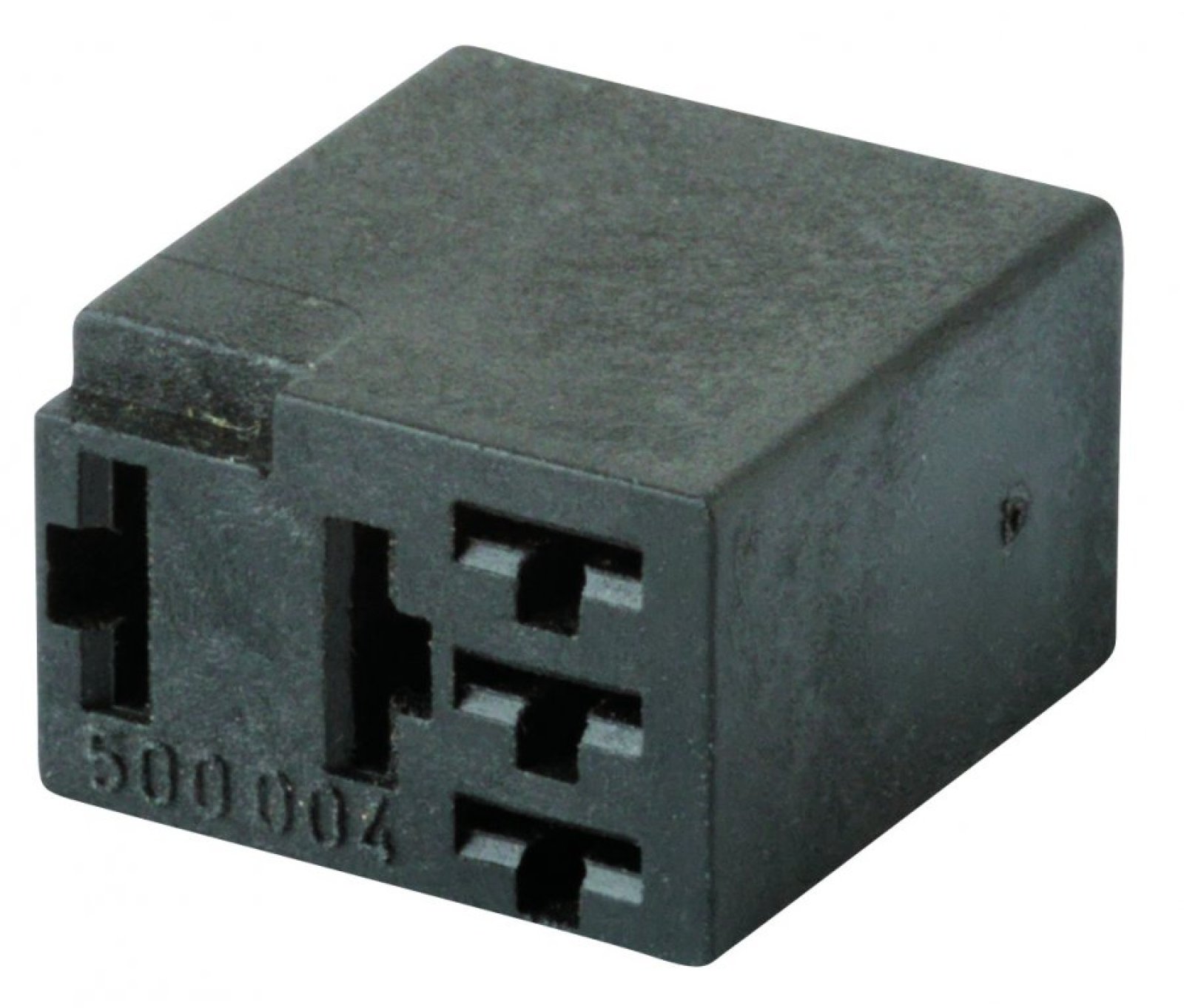

This 5-pole relay base is designed for micro relays and features 6.3 mm terminals. Thanks to its compact design without a mounting bracket, this base is suitable for applications where space is limited.

Specifications

• Number of poles: 5
• Terminals: 6.3 mm terminals
• Mounting: Without bracket
• Compatibility: Suitable for micro relays with 5-pole configuration

Applications

This relay base is ideal for use in various automotive applications, including:

• Lighting systems: For switching headlights, fog lights, and other lighting.
• Accessories: Control of additional equipment such as fans or heating systems.
• Electrical systems: Integration into various electrical circuits within vehicles.

Installation

The relay base is supplied with matching contacts, suitable for wire sections from 1.0 to 2.5 mm². The 6.3 mm contacts are designed for 1.0-2.5 mm² wires, while the 4.8 mm contacts are suitable for 0.5-1.0 mm² wires. The locking mechanism is located in the base itself, ensuring a firm and reliable connection.

Dimensions

• Length: 27.1 mm
• Width: 20.8 mm
• Height: 15.8 mm

Advantages

• Compact design: Ideal for applications with limited space.
• Easy installation: Supplied with suitable contacts for various wire sections.
• Versatility: Suitable for a wide range of automotive applications.

Compatibility

This relay base is compatible with various micro relays, including models with two 6.3 mm terminals and three 4.8 mm terminals. It is recommended to check the relay specifications to ensure compatibility.
