Robust 9-pin relay base for heavy-duty relays

This 9-pin relay base is specially designed for the safe and efficient mounting of heavy-duty relays in various applications. Thanks to its sturdy construction and versatile connection options, this base is ideal for both automotive and industrial applications.

Compatibility and connections

The relay base is suitable for heavy-duty relays with connections of:

• 4 x 2.8 mm (at the corners)
• 3 x 6.3 mm
• 2 x 9.5 mm

This configuration allows for the mounting of different relay models, including relay 268763. The base is interconnectable and can be combined with models such as RELH45B and RELH003B.

Easy installation

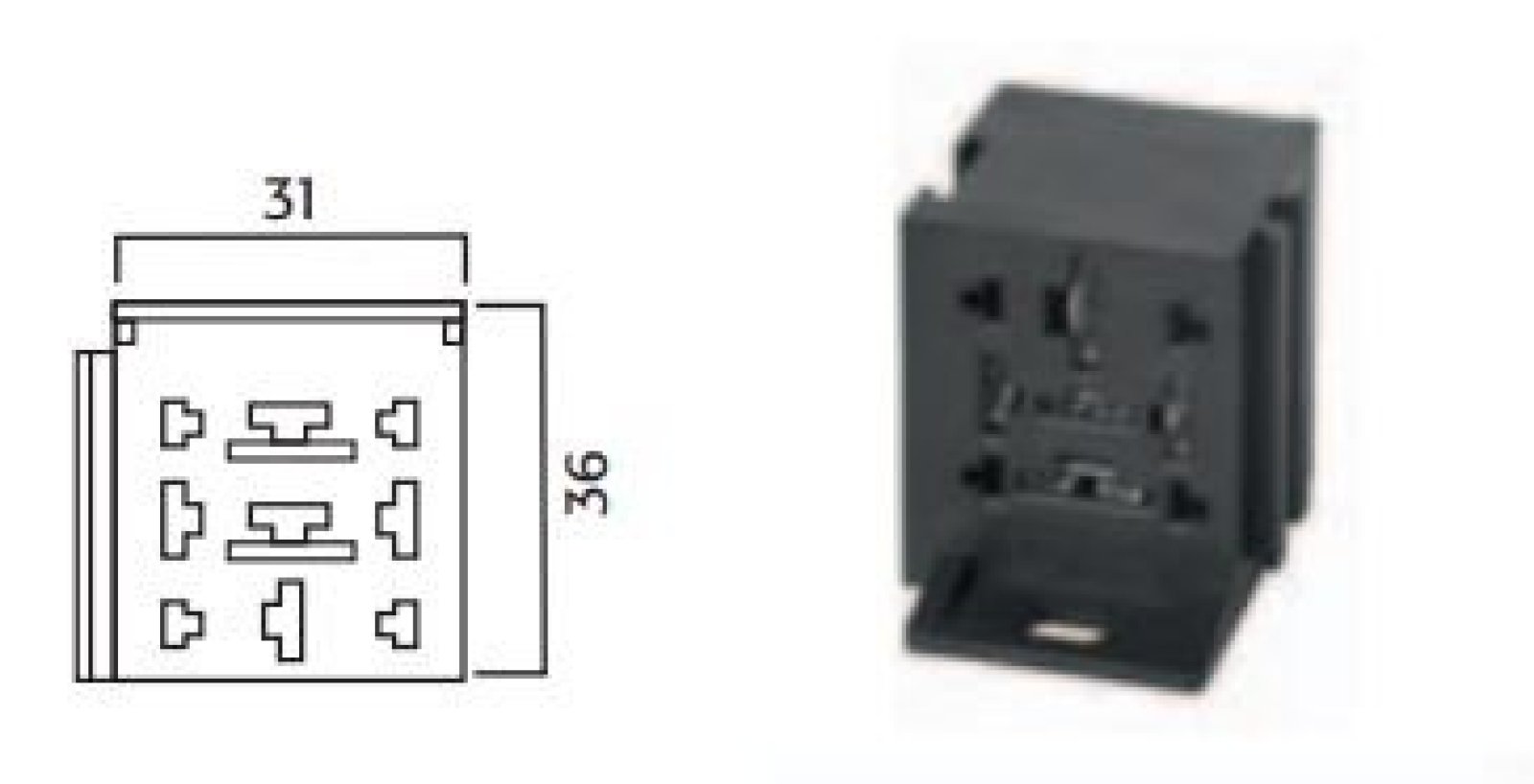

The relay base is designed for easy mounting with a 6 mm mounting hole. The dimensions of the base are 38 x 33 x 46 mm, ensuring a compact and space-saving installation.

Supplied components

The following contacts are supplied with the relay base:

• 3 x 6.3 mm contacts (3-2922/1T or equivalent)
• 2 x 9.5 mm contacts for wire of 4-6 mm²

Note: the 2.8 mm contacts are not included, as these are rarely needed. If desired, these can be ordered separately (3-2923/1 or 3-2923/1T).

Ease of use and reliability

This relay base provides a reliable foundation for mounting heavy-duty relays. Please note that inserting and removing relays may require some force. For a simpler alternative, the R01660 relay base is available, suitable for two relays.

Application areas

This relay base is ideal for use in:

• Automotive applications
• Industrial installations
• Electrical control cabinets

Thanks to the versatile connection options and robust construction, this relay base is an excellent choice for professionals looking for a reliable solution for mounting heavy-duty relays.

Important considerations

When installing this relay base, it is important to use the correct contacts and wire sizes to ensure safe and efficient operation. Make sure the mounting is secure and all connections are properly installed to achieve optimal performance.
