Reliable switching with integrated fuse

This mini contact relay is designed for 12V systems and can switch currents up to 30 amps. Thanks to the built-in 30A fuse, it offers extra protection for your electrical circuits.

Compact and robust design

With dimensions of 26 x 34 x 44 mm (including terminals and fuse), this relay is compact and easy to integrate into various applications. The metal mounting tab ensures secure installation.

Standard 4-pin configuration

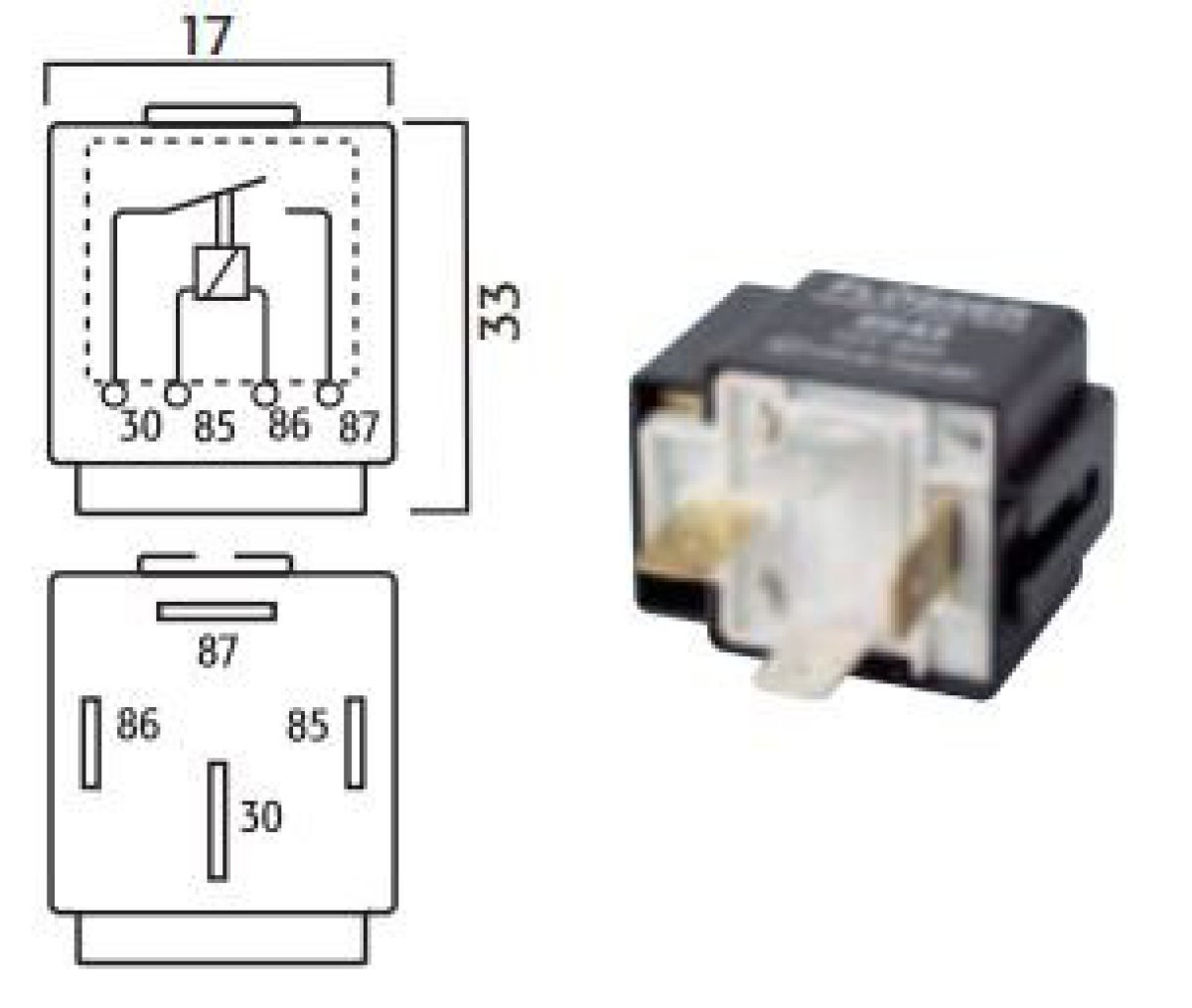

This relay features a standard 4-pin configuration with terminals for the coil (85 and 86) and the switch contact (30 and 87). The terminals are 6.3 mm wide, ensuring compatibility with common relay sockets and connectors.

Versatile applications

This relay is suitable for various applications, such as:

• Switching lighting
• Controlling fans
• Operating pumps
• Other automotive and industrial applications

Easy installation

The included metal mounting tab allows for secure installation. For optimal performance, it is recommended to use a suitable relay socket, such as the RELH007B.

Specifications

• Voltage: 12V
• Current capacity: 30A
• Number of pins: 4
• Dimensions: 26 x 34 x 44 mm (including terminals and fuse)
• Terminals: 6.3 mm wide
• Mounting: Metal mounting tab
• Fuse: Built-in 30A fuse

With this mini contact relay, you are assured of a reliable and safe switching solution for your electrical systems.
