Reliable power interruption for heavy-duty applications

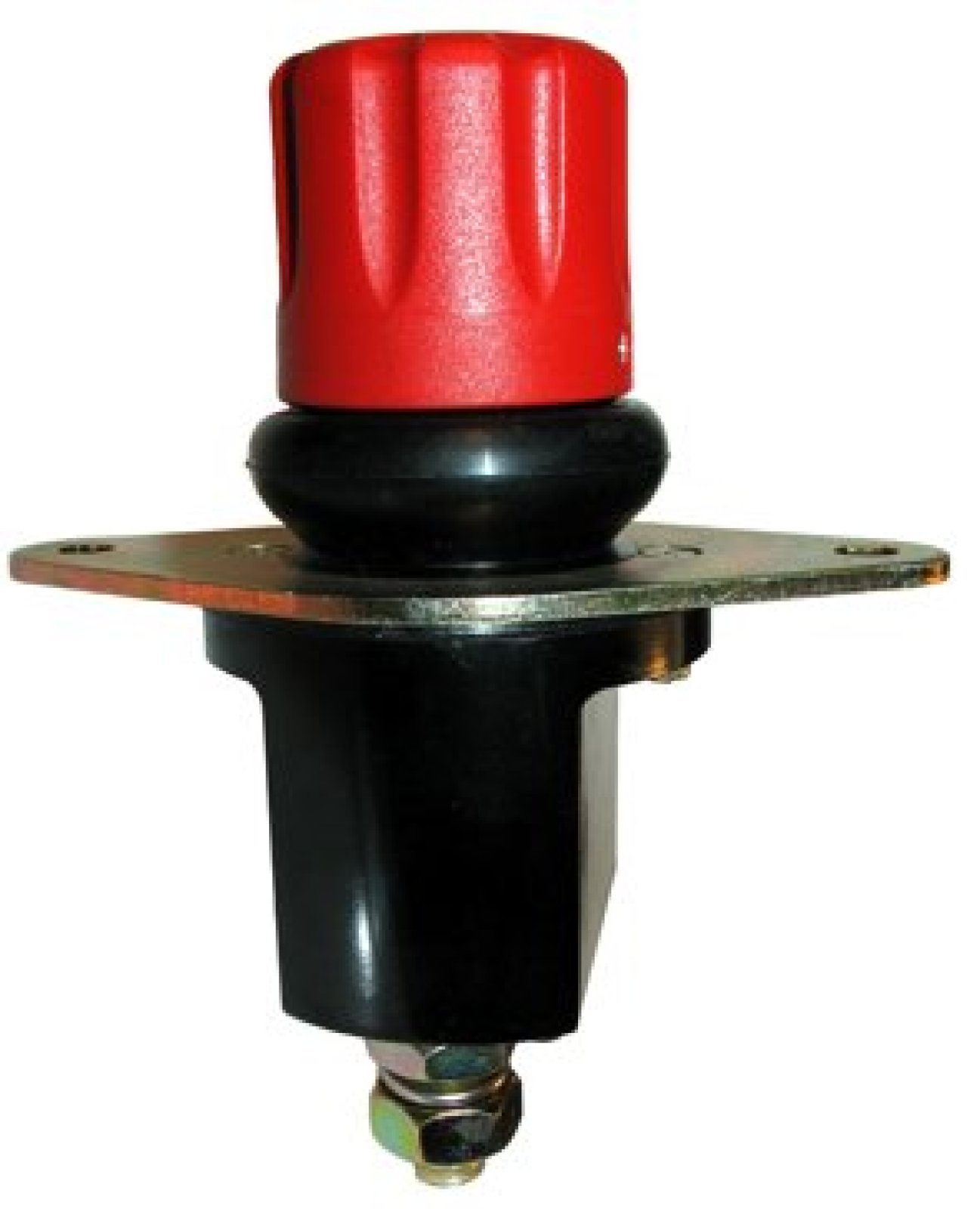

This heavy duty emergency stop switch is designed to safely interrupt electrical circuits with a continuous current up to 250A at 24V. Ideal for use in vehicles and installations where quick and reliable power interruption is required.

Easy operation

• Turn to connect: Activate the circuit by turning the knob.
• Press to disconnect: Immediately cut the power supply by pressing the button.

Durable and robust design

• Housing: Made from high-quality materials that withstand harsh conditions.
• Connection bolts: M10 bolts made of galvanized steel ensure a strong and corrosion-resistant connection.

Technical specifications

• Rated voltage: Maximum 24 VDC
• Maximum continuous current: 250A
• Peak load: 2500A for 5 seconds
• Protection rating: IP44
• Operating temperature: -40°C to +85°C
• Contact material: Copper (non-polarized)
• Weight: 0.56 kg

Application areas

This emergency stop switch is suitable for various applications, including:

• Vehicles: Trucks, buses, and other heavy vehicles.
• Marine sector: Boats and ships with electrical installations.
• Industrial installations: Machines and equipment that require reliable power interruption.

Installation and use

The switch is easy to install and operate. Thanks to the clear rotary knob and push function, the power supply can be managed quickly and safely, contributing to the safety of the electrical installation.

Safety measures

The use of this emergency stop switch increases the safety of electrical systems by enabling rapid interruption of the power supply in emergencies. This helps prevent equipment damage and protects users from potential electrical hazards.
