Compact and versatile design

This mini round LED switch is designed for use in 12V systems and offers a maximum current capacity of 10A. With a mounting diameter of 20mm and a total diameter of 23mm, this switch is ideal for applications where space is limited.

Easy installation

The switch features three terminals:

• Terminal 1: For the positive (+) of the lighting.
• Terminal 2: For the positive (+) of the power supply.
• Terminal 3: Optional, for the negative (-) of the power supply to activate the LED indicator.

Thanks to this configuration, installation is simple and quick.

Visual feedback with orange LED

The built-in orange LED indicator provides clear visual feedback on the status of the switch. When the switch is in the 'on' position, the light illuminates, contributing to ease of use and safety, especially in dark environments.

Durability and reliability

This switch is made from high-quality materials and designed for a long service life. For applications with a current higher than 8A, it is recommended to use a relay to extend the switch's lifespan.

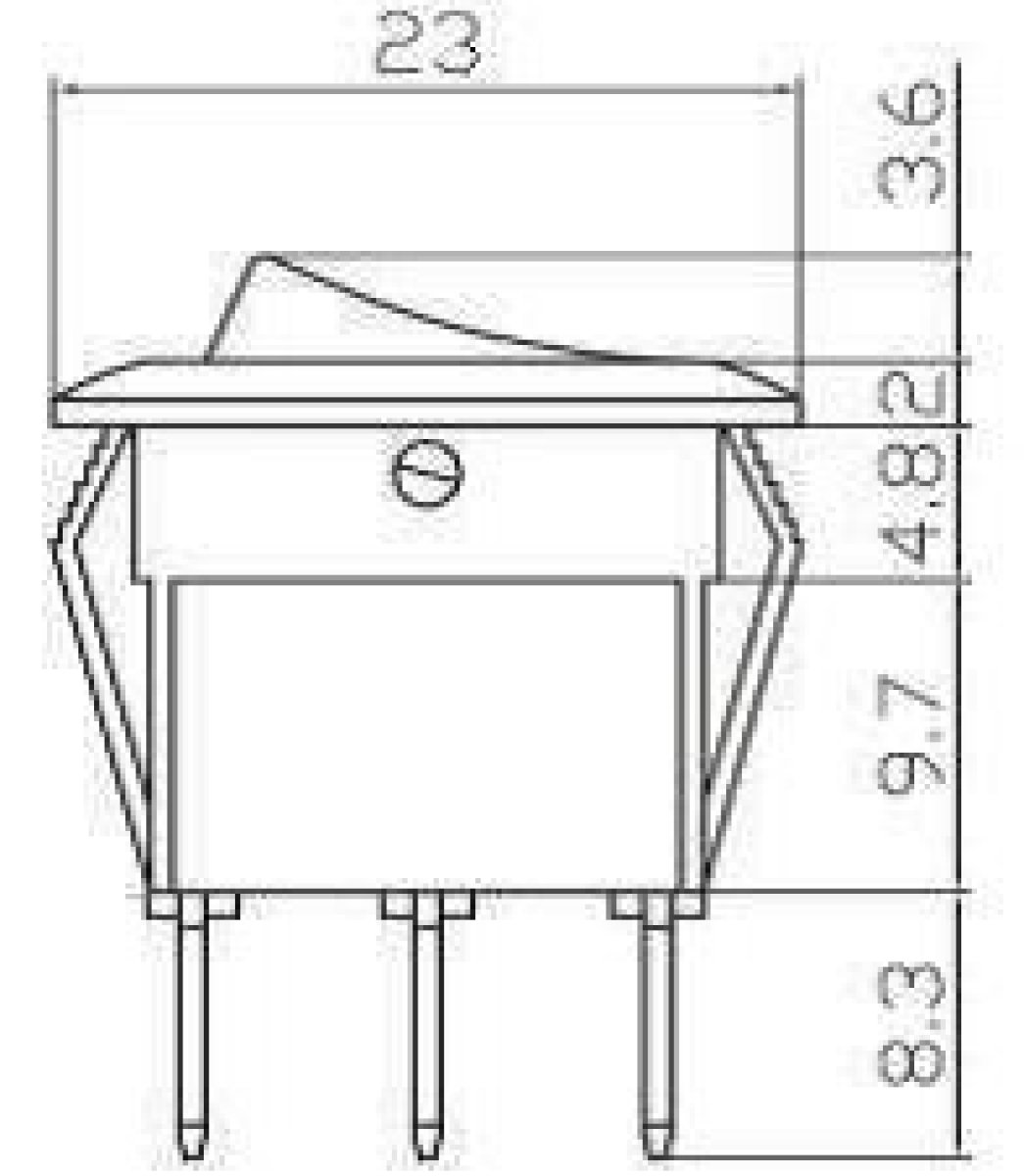

Specifications

• Type: Rocker switch ON/OFF
• Connection: 3-pin
• Shape: Round
• Mounting diameter: 20mm
• Total diameter: 23mm
• Voltage: 12V DC
• Maximum current: 10A
• Indicator light: Orange LED

Applications

This mini rocker switch is suitable for various applications, including:

• Cars: For switching additional lighting or accessories.
• Boats: Suitable for marine applications thanks to the compact shape.
• DIY projects: Ideal for hobbyists building or modifying electrical circuits.

With its compact size, easy installation, and clear LED indication, this mini round LED switch is an excellent choice for a wide range of 12V applications.
