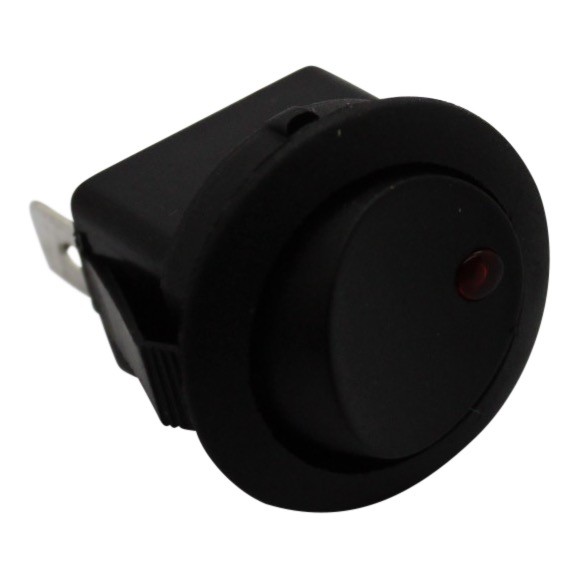

Compact and versatile design

This mini round switch is designed for easy installation in various vehicles. With a diameter of 23 mm and a mounting hole of 20 mm, it fits seamlessly into dashboards and control panels. The compact dimensions make it suitable for cars, boats, motorhomes, and other vehicles.

Red LED indicator for clear status display

The built-in red LED indicator lights up when the switch is in the 'on' position. This provides a clear visual confirmation of the status, which is especially useful in dark environments or low light conditions.

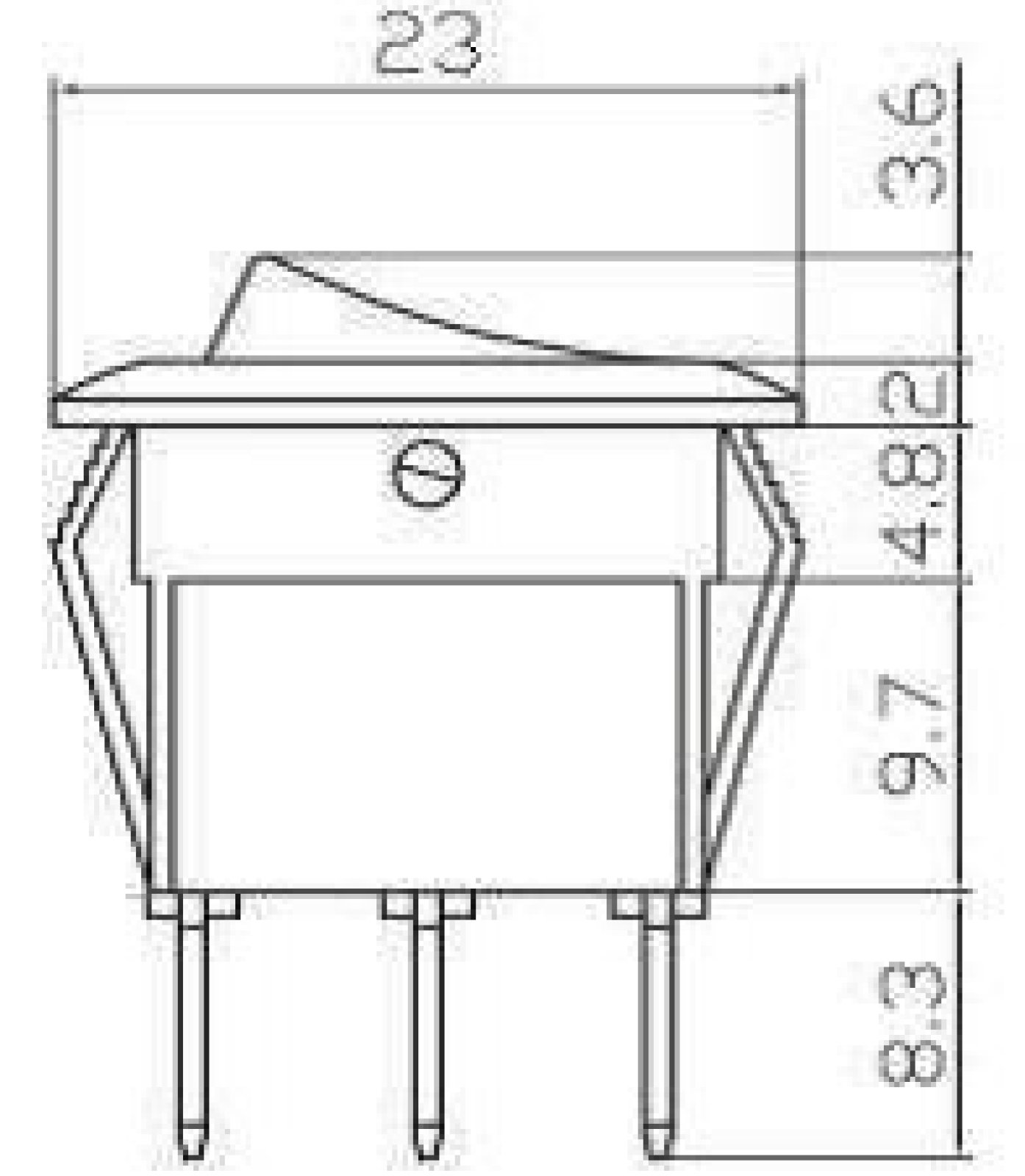

Technical specifications

• Voltage: 12V
• Maximum current: 10A
• Switch diameter: 23 mm
• Mounting hole diameter: 20 mm

Easy installation

The switch is equipped with three terminals:

1. Input (+): Connection for the positive power wire.
2. Output (+): Connection for the positive wire to the device to be switched.
3. Ground (-): Optional connection for the negative wire, if the LED indicator is used.

Thanks to these terminals, installation is quick and easy.

Application possibilities

This switch is ideal for controlling various 12V devices, such as:

• Interior lighting
• Additional lighting
• Electrical accessories

Its versatility makes it suitable for both professional and DIY applications.

Durability and reliability

Made from high-quality materials, this switch offers a long lifespan and reliable performance. The sturdy housing and reliable contacts ensure consistent operation, even under tough conditions.

Safety recommendation

For applications requiring higher current, it is recommended to use a relay to extend the switch's lifespan and ensure optimal performance.

Summary

With its compact design, clear LED indicator, and easy installation, this mini round switch is an excellent choice for controlling 12V devices in various vehicles. Its versatility and reliability make it indispensable for both professionals and hobbyists.
