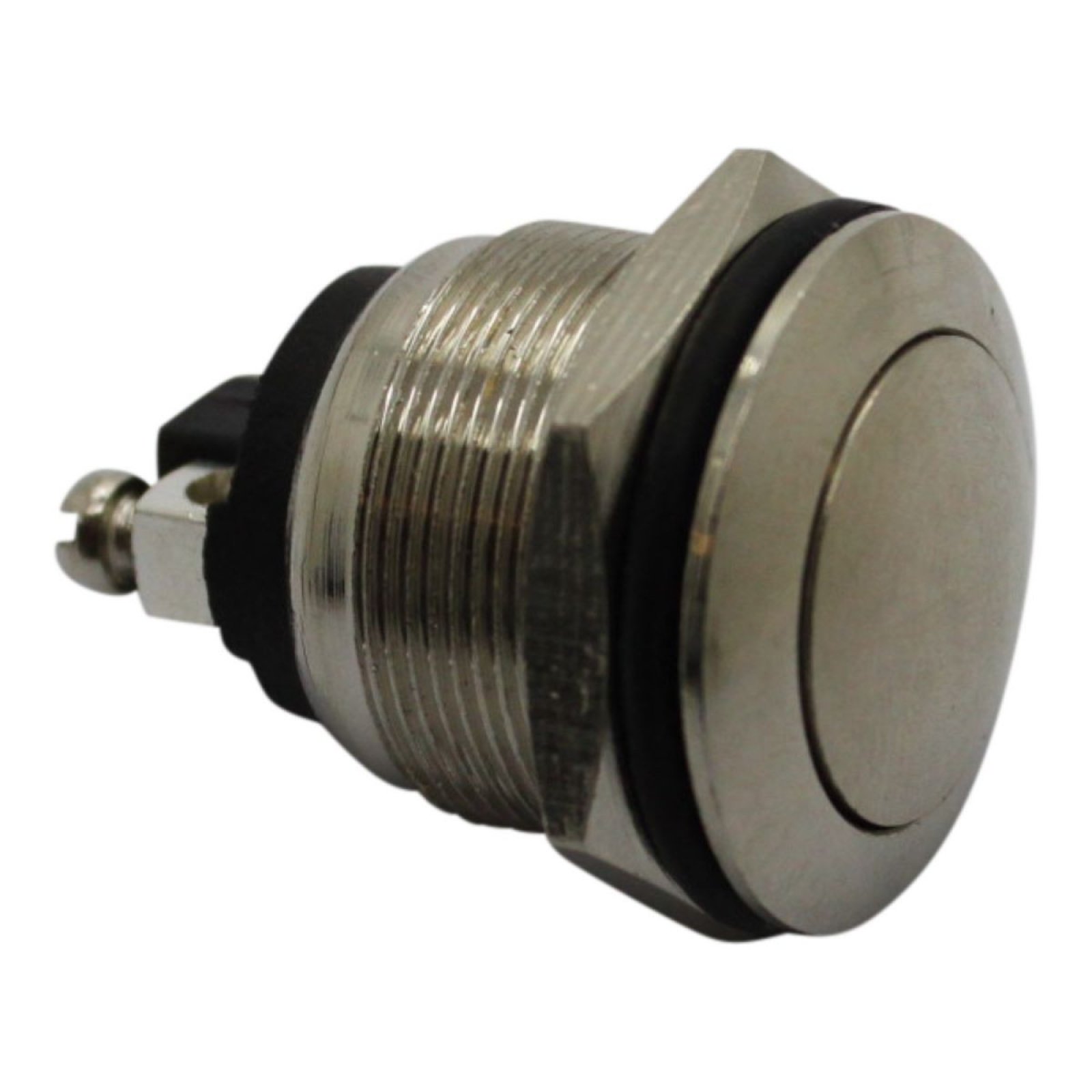

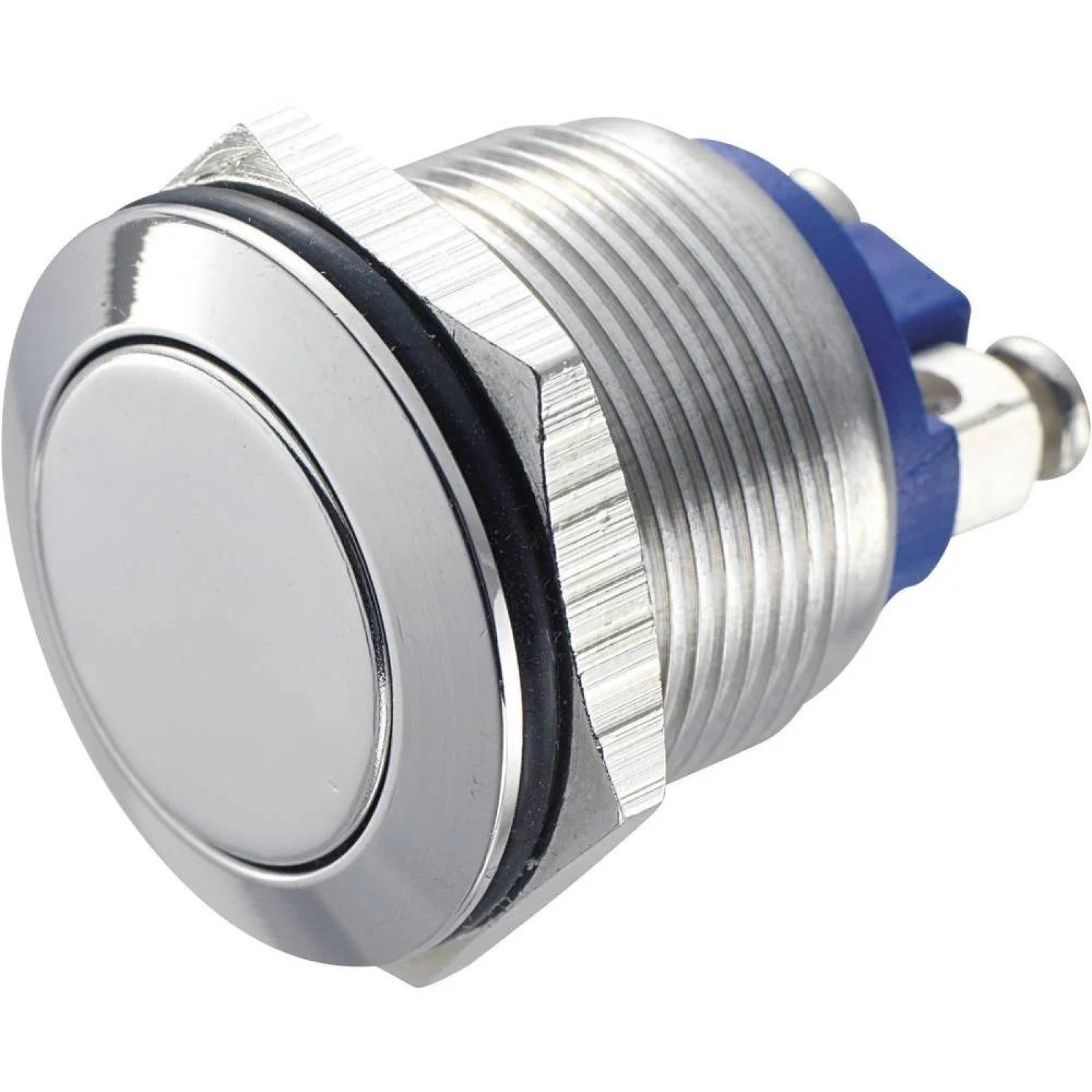

Robust brass push button switch for 12V systems

This high-quality push button switch is made of brass and designed for 12V systems with a maximum current of 20A. Thanks to its vandal-resistant construction, this switch is ideal for applications where durability and reliability are essential.

Technical specifications

• Voltage: 12V
• Maximum current: 20A
• Mounting diameter: 19 mm
• Outer diameter: 22 mm
• Housing material: Chrome-plated brass
• Switch function: Momentary (spring return) or Latching (locking)

Application possibilities

This push button switch is suitable for various applications, including:

• Automotive: Controls for lighting, horns, or other accessories in cars.
• Marine: Suitable for use on boats thanks to its robust and water-resistant properties.
• Industrial environments: Controls for machines and equipment where a sturdy switch is required.

Installation and use

The switch fits in a standard 19 mm round hole and has an outer diameter of 22 mm. Depending on the selected switch function (momentary or latching), the switch can be used for temporary or permanent switching. The solid construction ensures a long service life, even with intensive use.

Advantages of this push button switch

• High current capacity: Switches up to 20A without the need for additional relays.
• Vandal-resistant design: Withstands harsh conditions and rough handling.
• Easy installation: Standard mounting size of 19 mm for quick assembly.
• Versatile in use: Suitable for various applications in different sectors.

Maintenance and lifespan

Thanks to the use of high-quality materials such as brass and the robust construction, this switch requires minimal maintenance. The mechanical lifespan exceeds 55,000 operations, ensuring long-term reliability.

Available variants

This push button switch is available in various versions, including models with LED indication in different colors and switch functions such as momentary or latching. This allows you to choose the switch that best suits your specific application and preferences.
