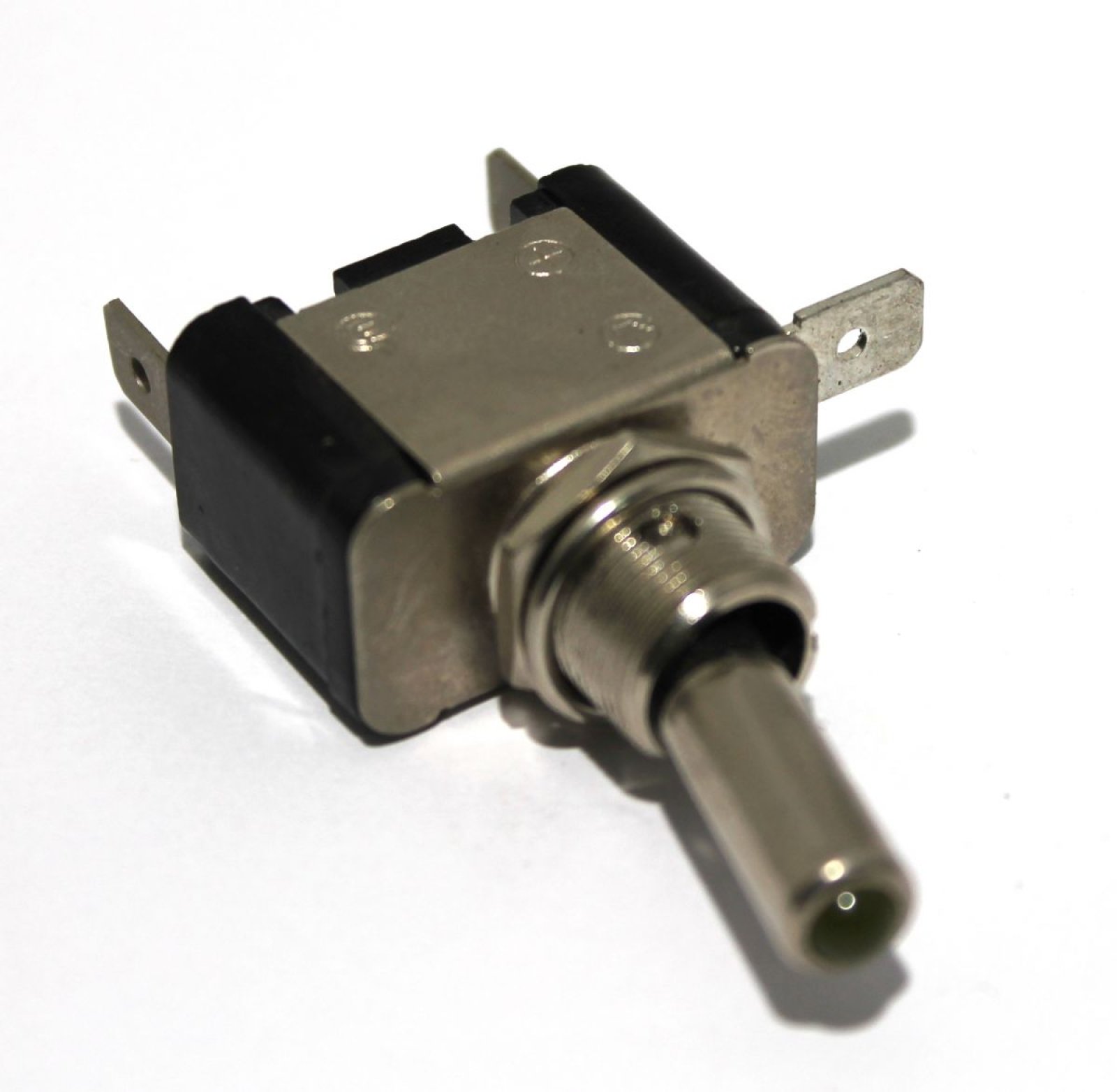

Reliable switch for various applications

This single-pole toggle switch is designed for a wide range of applications, from vehicles to industrial machines. With a switching capacity of 12V and 20A, this switch provides reliable control for your electrical systems.

Integrated yellow LED indicator

The built-in yellow LED indicator provides a clear visual display of the switch status. This increases user-friendliness and safety, especially in low-light environments.

Easy panel mounting

With a mounting hole diameter of 12 mm and a thread length of 11 mm, this switch is easy to install. The installation depth of 30 mm allows the switch to be mounted in panels of various thicknesses.

Technical specifications

• Type: Single-pole, ON/OFF
• Switching capacity: 12V / 20A
• Mounting hole diameter: 12 mm
• Thread length: 11 mm
• Installation depth: 30 mm
• Maximum material thickness: 7 mm
• Connection: 6.3 mm flat connector or solder terminal
• Dimensions: 37 x 16 x 61.7 mm
• Operating temperature range: -25 °C to +85 °C

Versatile applications

This toggle switch is ideal for use in cars, boats, machines, and other electrical installations where reliable switching with visual status indication is desired.

Durable and reliable design

Made from high-quality materials, this switch offers a long lifespan and reliable performance, even under tough conditions.

Easy installation and use

Thanks to standard connections and compact dimensions, installation is quick and easy. The clear ON/OFF function and bright LED indicator make operation intuitive.

Compatibility with various systems

This switch is compatible with 12V electrical systems and can switch up to 20A, making it suitable for a wide range of applications.

Safety and compliance

The switch meets relevant safety standards and is designed for safe use in various environments.
