Reliable control for your electrical systems

This toggle switch from Sinatec offers reliable ON/OFF functionality for various electrical applications in vehicles and other 12V systems. With a maximum current capacity of 20 amps, this switch is suitable for controlling a wide range of devices and circuits.

Features and specifications

• Voltage: 12V DC
• Current capacity: 20A

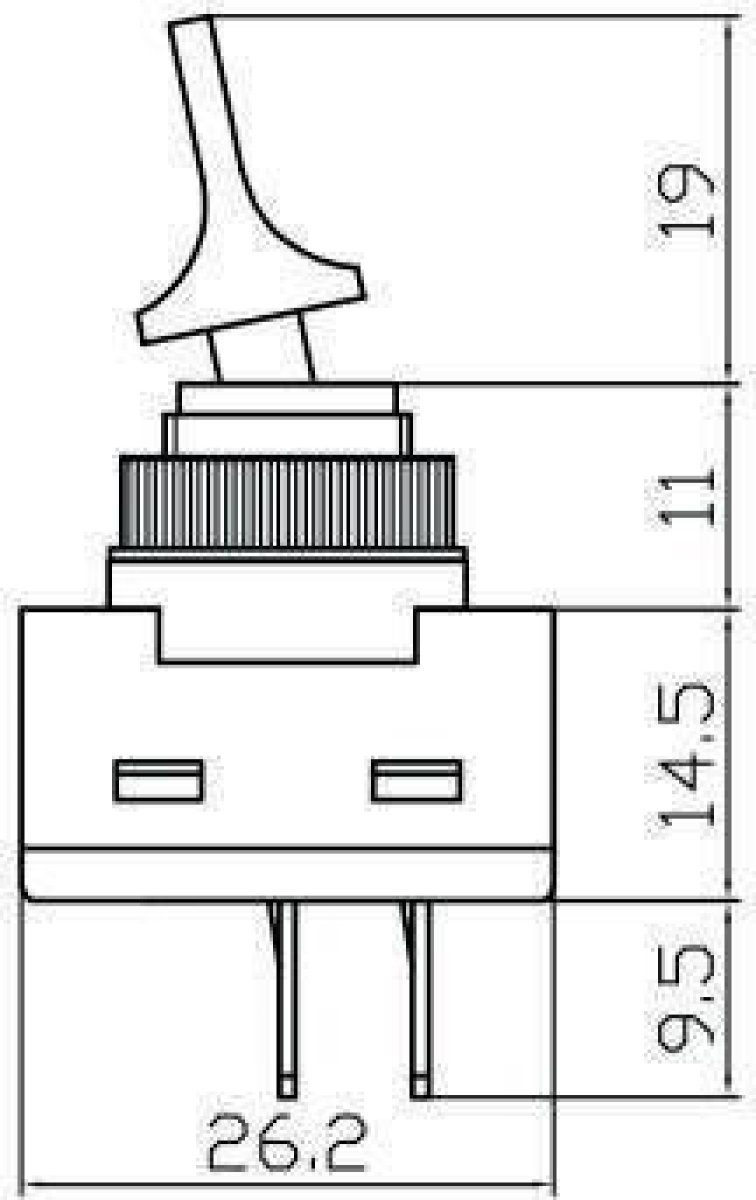

• Mounting hole diameter: 12.5 mm
• Lever length: 19 mm
• Switch type: SPST (Single Pole Single Throw)

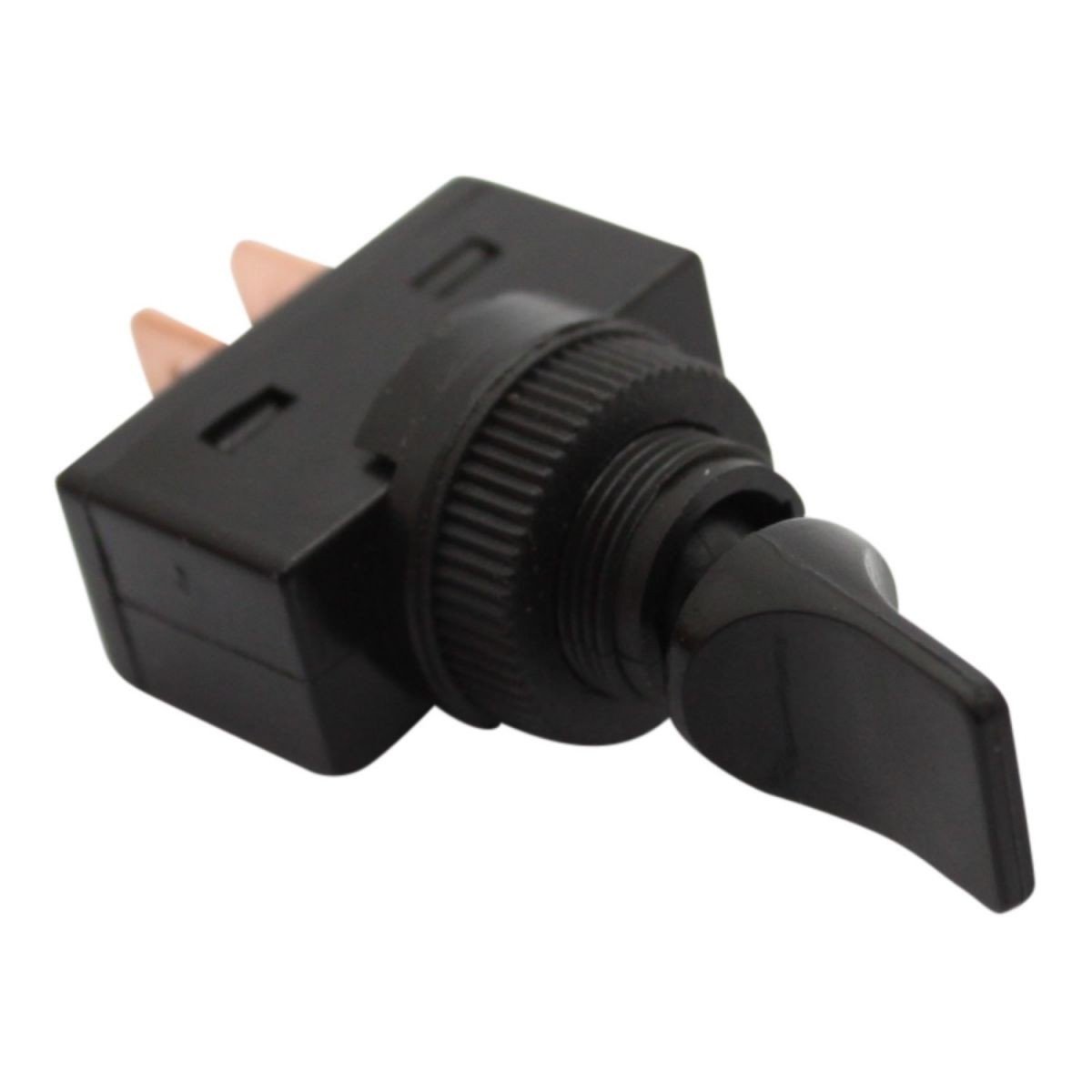

Durable design with duckbill lever

The switch is equipped with a duckbill lever, providing a firm grip and easy operation. The robust design ensures a long lifespan, even with frequent use.

Easy installation

Thanks to the standard mounting hole diameter of 12.5 mm, installing this switch is simple and compatible with common panel designs. The terminals are clearly marked, making wiring connections easier.

Versatile applications

This toggle switch is ideal for use in cars, boats, campers, and other vehicles with a 12V system. Whether you want to control additional lighting, accessories, or other electrical devices, this switch offers the reliability you need.

Technical specifications

• Contact resistance: Maximum 50 mΩ
• Insulation resistance: Minimum 100 MΩ at 500V DC
• Dielectric strength: 1500V AC for 1 minute
• Operating temperature range: -25°C to +85°C
• Lifespan: 10,000 cycles

Quality and reliability

Sinatec is known for its high-quality electrical components. This toggle switch is no exception and offers the quality and reliability you expect from Sinatec.
