Overview of the assortment

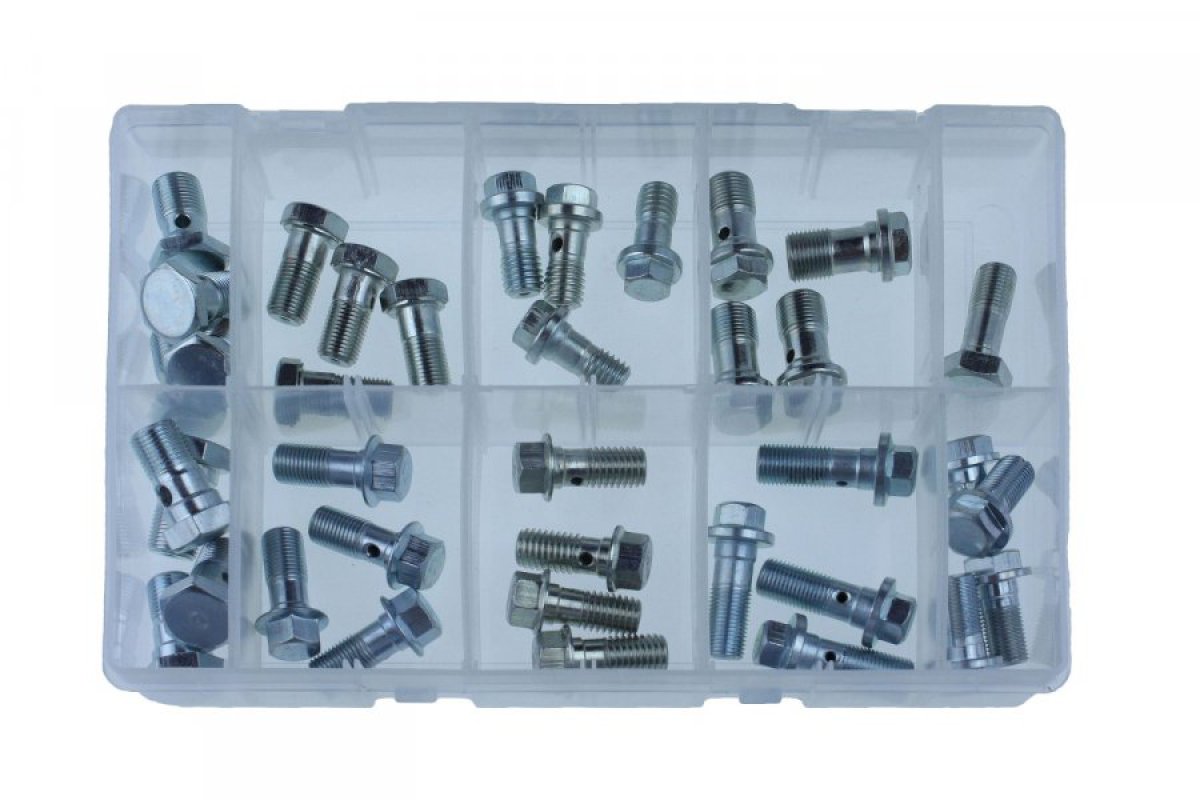

This 40-piece banjo bolt assortment offers a comprehensive selection of high-quality fasteners for various hydraulic applications. The set includes different sizes and types, ensuring you always have the right bolt on hand for your specific needs.

Contents of the set

• 4x BAN1 : Banjo bolt M12x1.00x24 SW17
• 4x BAN2 : Banjo bolt M10x1.00x27.1 SW14
• 4x BAN3 : Banjo bolt M10x1.50x28.1 SW11
• 4x BAN4 : Banjo bolt M12x1.00x28.9 SW13
• 4x BAN5 : Banjo bolt M10x1.00x32.3 SW16
• 4x BAN6 : Banjo bolt M12x1.00x28 SW17
• 4x BAN7 : Banjo bolt M10x1.00x31.4 SW12
• 4x BAN8 : Banjo bolt M10x1.50x30.5 SW12
• 4x BAN9 : Banjo bolt M10x1.00x37 SW11
• 4x BAN10 : Banjo bolt M10x1.00x27.2 SW13

Applications of banjo bolts

Banjo bolts, also known as hollow bolts, are essential in hydraulic systems for securing pipes and hoses. Thanks to their hollow design, fluids can flow through the bolt, providing efficient and compact connections. They are often used in:

• Brake systems : For connecting brake lines to master cylinders and calipers.
• Fuel systems : For connecting fuel lines to injectors and pumps.
• Hydraulic circuits : In industrial machines and vehicles for various hydraulic applications.

Advantages of this assortment

• Versatility : With 10 different types and sizes, you are prepared for various applications.
• Quality : Made from durable materials that withstand high pressure and wear.
• Convenient packaging : Organized in a clear set, so you can quickly find the right bolt.

Specifications

• Material : High-quality steel
• Thread sizes : M10 and M12
• Wrench sizes : Ranging from SW11 to SW17
• Number of pieces : 40 (4 pieces per type)

Maintenance and installation

For optimal performance, it is important to install the banjo bolts correctly and regularly inspect them for wear or corrosion. Make sure the bolts are tightened firmly to prevent leaks, but avoid excessive force to prevent damage.
