Optimal fastening in thin materials

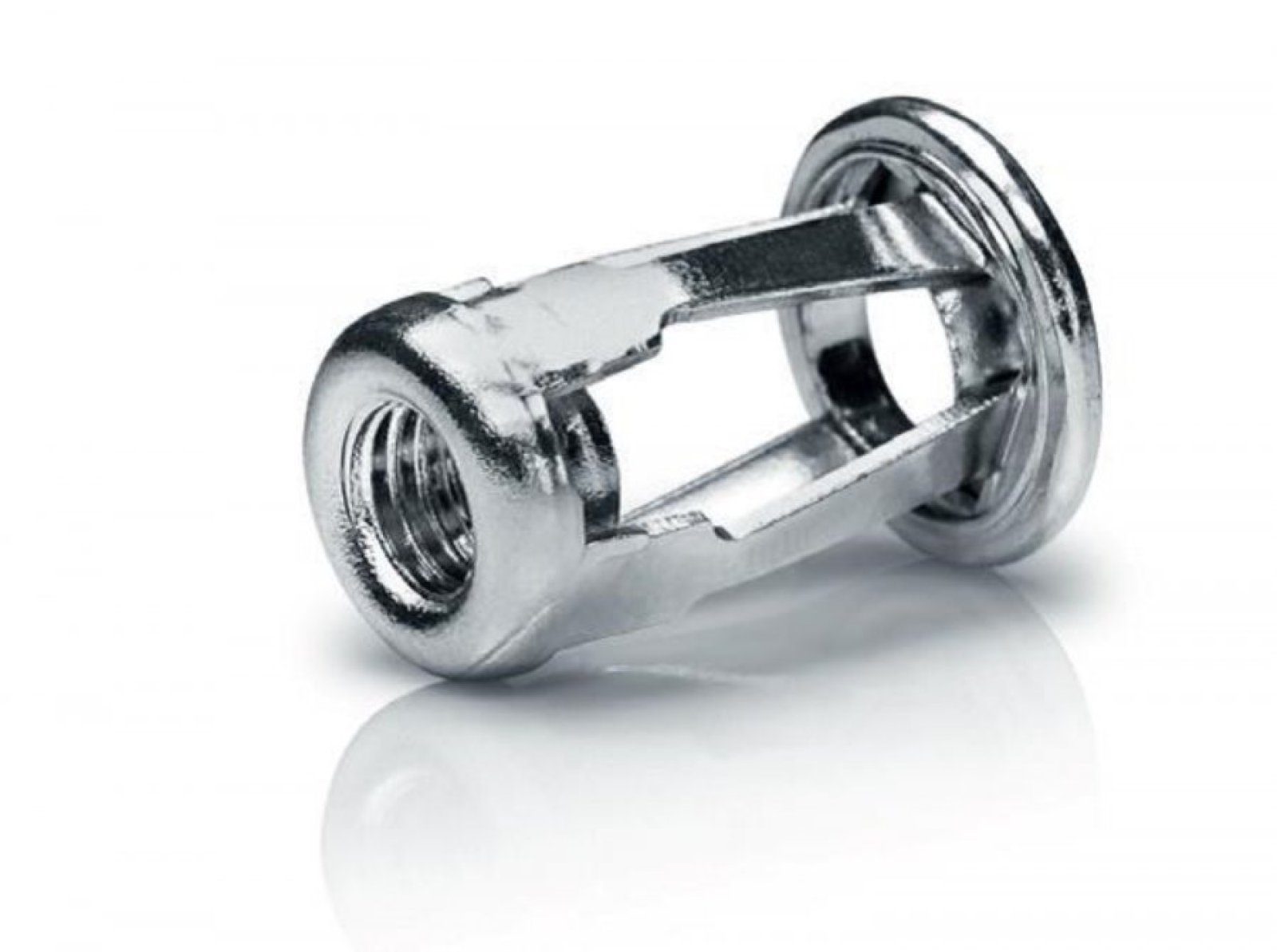

The blind rivet expansion nut M5x18 is specially designed to create strong threaded connections in thin and soft materials. Thanks to its unique expansion mechanism, this nut provides a reliable grip, even on surfaces with limited thickness.

Technical specifications

• Thread size: M5
• Length: 18 mm
• Clamping range: 0.1 - 5.0 mm
• Material: Steel, galvanized
• Head diameter: 10.0 mm
• Head height: 1.6 mm
• Drill hole diameter: 7.0 mm

Advantages of the expansion nut

• Strong grip: The expansion mechanism ensures a firm anchoring in the material.
• Suitable for various materials: Ideal for thin and soft materials such as aluminum, plastic, and thin sheet metal.
• Vibration resistant: Provides a stable connection that withstands vibrations.
• Easy installation: Can be quickly and easily installed with standard tools.

Areas of application

This blind rivet expansion nut is versatile for use in various sectors, including:

• Automotive: For fastening components in bodywork and interiors.
• Construction: Suitable for mounting cladding and other building materials.
• Electronics: For securing enclosures and panels.

Installation instructions

1. Preparation: Drill a hole with a diameter of 7.0 mm in the material.
2. Placement: Insert the expansion nut into the drilled hole.
3. Fastening: Use a suitable blind rivet nut tool to install the nut. As you tighten, the nut expands and anchors firmly in the material.

Important considerations

• Material compatibility: Ensure that the material to be fastened falls within the clamping range of 0.1 - 5.0 mm.
• Tools: Use a blind rivet nut tool suitable for M5 nuts for optimal results.

With the blind rivet expansion nut M5x18, you achieve durable and reliable threaded connections in a wide range of applications.
