Application and functionality

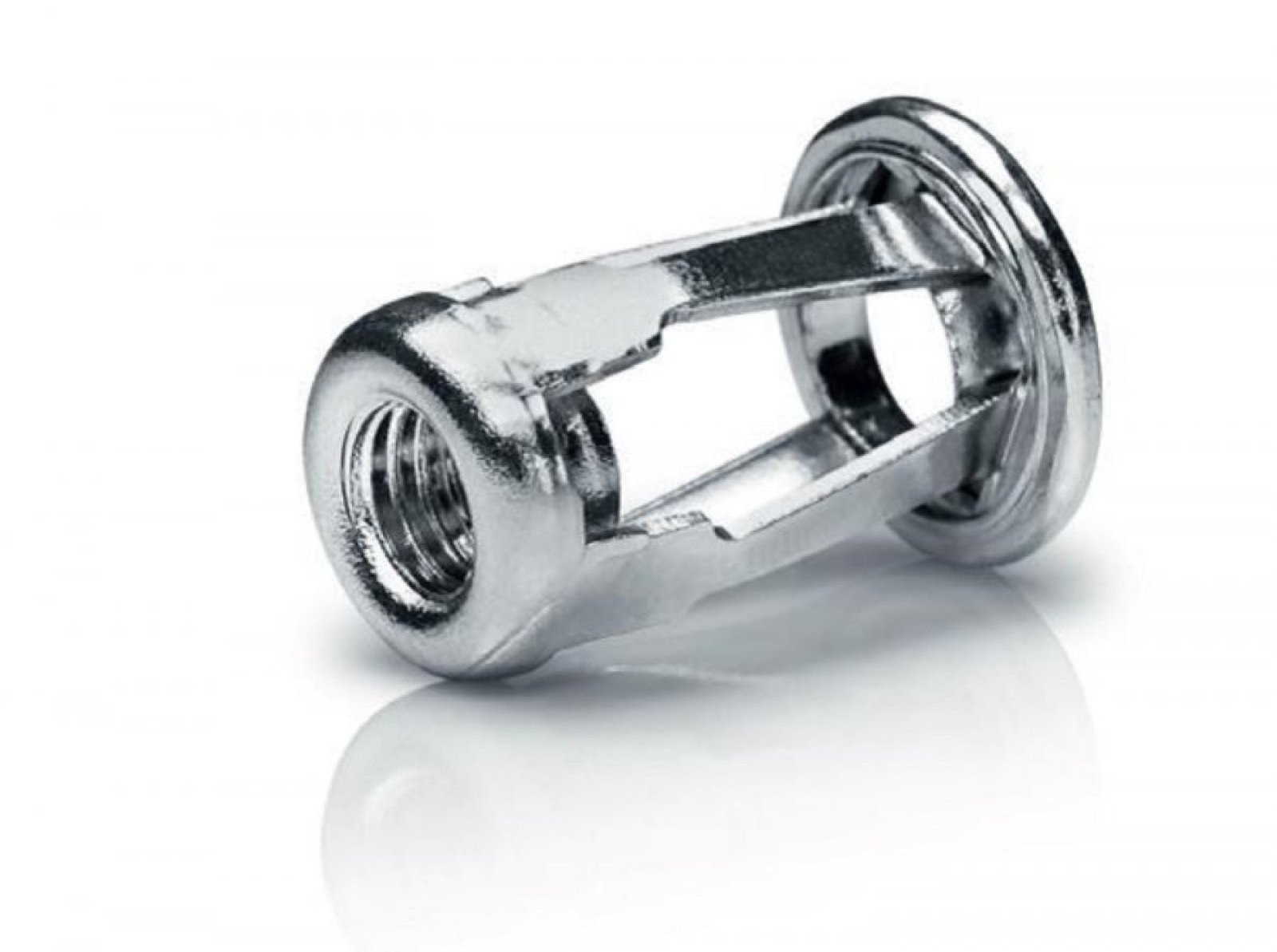

The blind rivet expansion nut M6x23 is designed to create reliable threaded connections in thin, soft, or brittle materials. Thanks to the expansion mechanism, the nut opens at the rear into four sections, ensuring even force distribution and a secure fastening.

Specifications

• Thread size: M6
• Total length: 23 mm
• Clamping range: 5.0 to 10.0 mm
• Material: Steel
• Pre-drill diameter: Ø8.9-9.0 mm

Advantages

• Strong fastening: The expansion nut provides a firm grip, even in thin or soft materials.
• Easy installation: Can be placed in a pre-drilled hole and requires special tools for optimal mounting.
• Vibration resistant: Suitable for applications where vibrations occur, such as in the automotive sector.

Areas of application

These expansion nuts are widely used in the automotive sector, including for commercial vehicle interiors and camper construction. They are ideal for situations where access to the rear of the workpiece is limited.

Installation instructions

1. Drill a hole with a diameter of Ø8.9-9.0 mm in the workpiece.
2. Insert the expansion nut into the hole.
3. Use a suitable tool to install the nut so that it opens at the rear and is firmly secured.

Important considerations

When selecting the correct blind rivet nut, it is essential to measure the thickness of the workpiece. Ensure that it falls within the clamping range of the nut for optimal fastening.

Packaging

The blind rivet expansion nuts M6x23 are supplied in sets of 100 pieces, suitable for both small and larger projects.
