Application and functionality

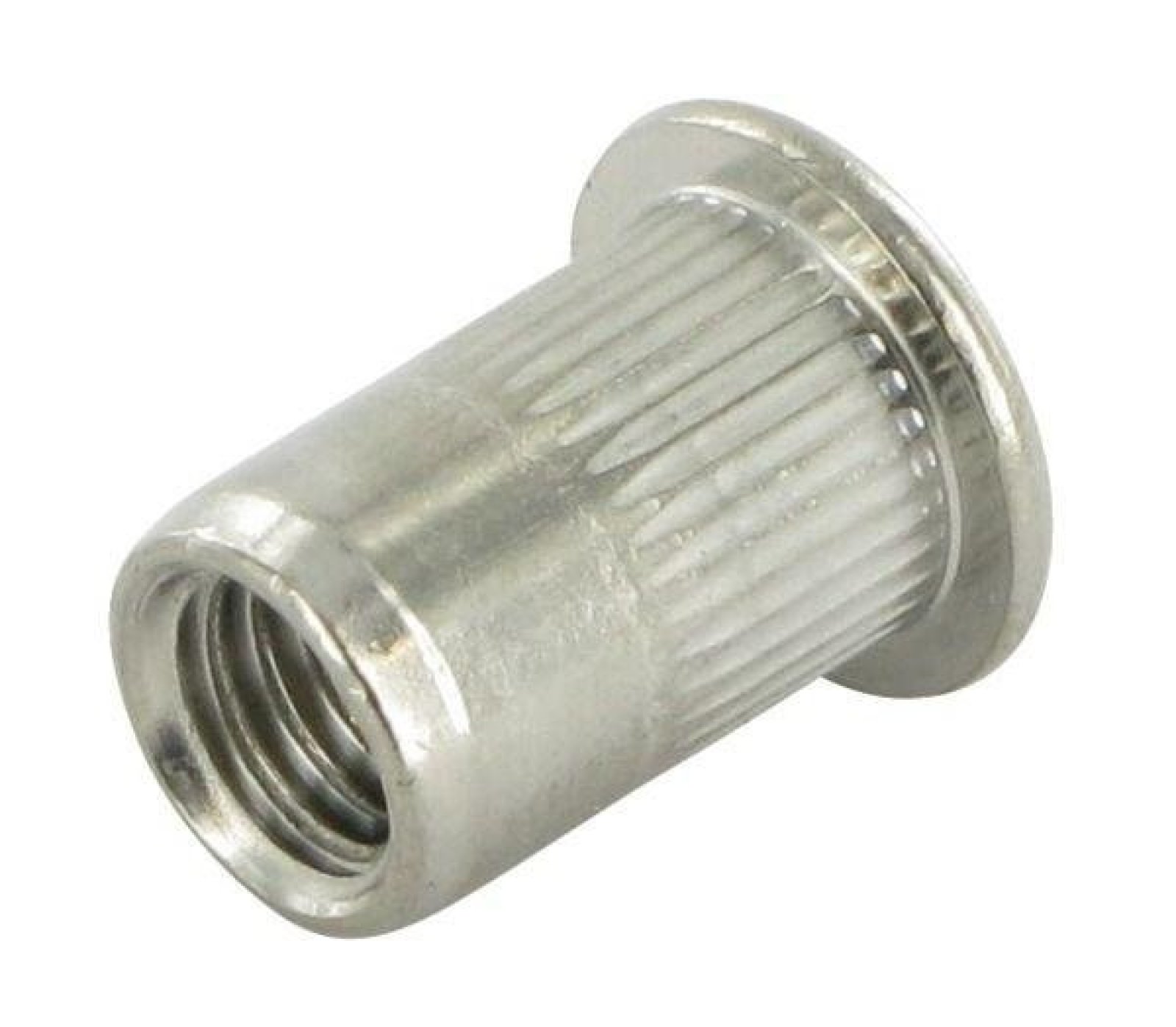

These knurled rivet nuts M4x13mm are ideal for creating strong threaded connections in materials with a thickness between 3.1 and 4.0 mm. They are particularly suitable for situations where you only have access to one side of the workpiece, such as with thin sheets, box and tube profiles.

Design and features

The nuts have a knurled shaft that provides extra grip and prevents the nut from rotating during installation. This design ensures a reliable and durable connection, even in materials with lower strength than the nut itself.

Specifications

• Thread size: M4
• Length: 13 mm
• Clamping range: 3.1 - 4.0 mm
• Drill diameter: 6.0 mm
• Head diameter: 8.5 mm
• Head height: 1.0 mm
• Material: Aluminium
• Tensile strength: 4000 N
• Shear value: 1070 N

Installation

A special rivet nut tool is required to correctly install these rivet nuts. Using the right tool ensures optimal fastening and prevents damage to both the nut and the workpiece.

Packaging

This set contains 100 pieces, which is sufficient for both small and larger projects. The nuts are neatly packed to protect them from damage during transport and storage.

Areas of application

These rivet nuts are widely used in the automotive sector, machine building, and furniture manufacturing. They offer an efficient solution for adding threads to thin materials without access to the rear side.

Benefits

• Easy installation without access to the rear of the workpiece
• Knurled shaft prevents rotation and provides extra grip
• Suitable for various applications in different industries
• High-quality aluminium construction offers a good balance between strength and weight

With these knurled rivet nuts M4x13mm, you have a reliable solution for creating threaded connections in materials with a thickness between 3.1 and 4.0 mm.
