Application and functionality

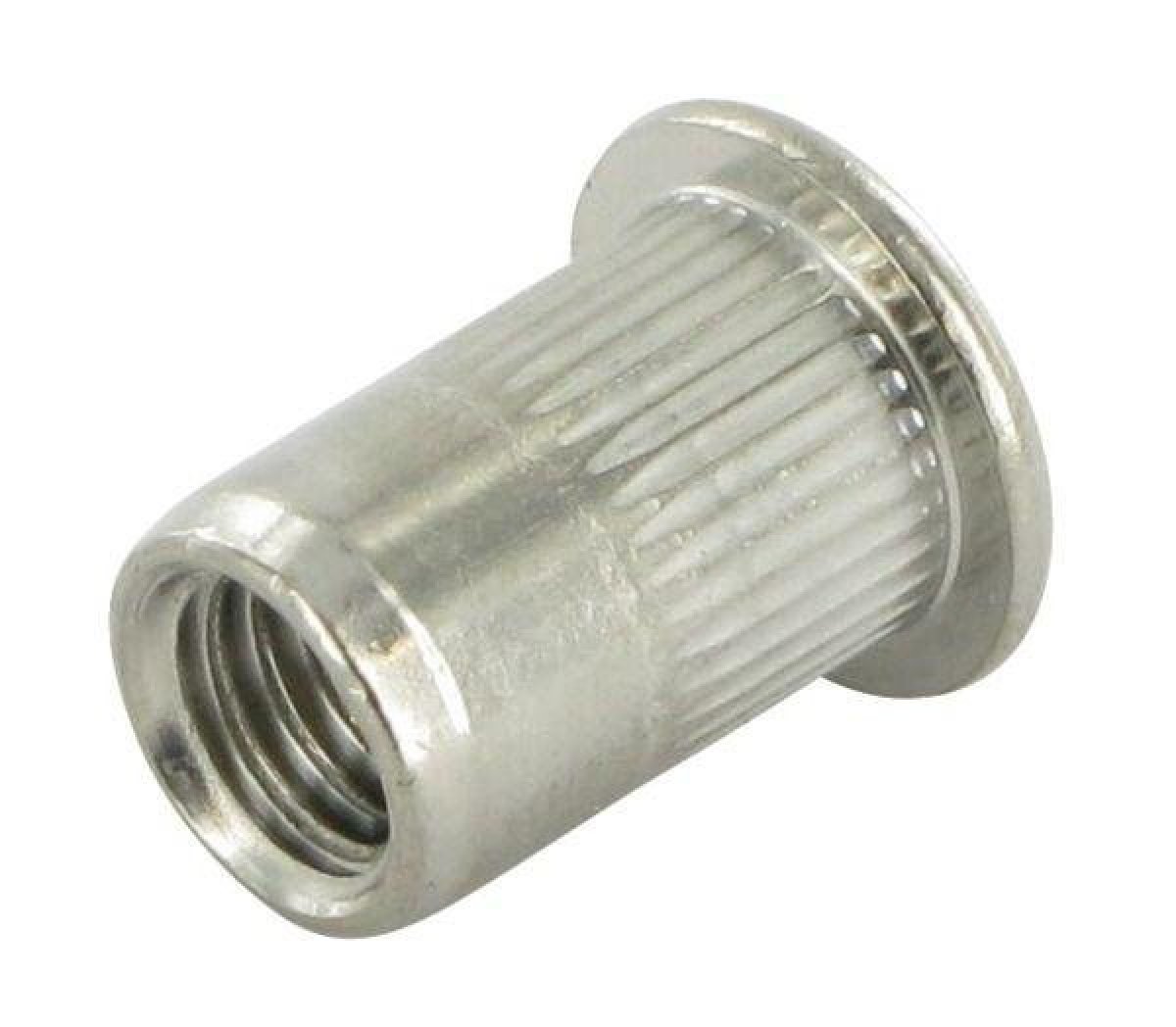

With the knurled rivet nut M8x22mm, you can easily create a reliable threaded connection in sheet metal with a thickness between 5.0 and 8.0 mm. This nut is ideal for situations where you do not have access to the rear of the workpiece.

Features and benefits

• Knurled shaft : Prevents rotation during installation, ensuring a stable and durable connection.
• Cylindrical head : Provides a neat finish and even pressure distribution on the surface.
• Material : Made of steel, guaranteeing strength and reliability.

Technical specifications

• Thread size : M8
• Clamping range : 5.0-8.0 mm
• Total length : 22 mm
• Pre-drill diameter : Ø11.0-11.1 mm
• Head diameter : Ø15.5 mm
• Head height : 1.5 mm
• Pull-out resistance : 27,000 N
• Maximum tightening torque : 24.0 Nm

Installation

To install this rivet nut, use a suitable rivet nut tool, such as a battery-powered, pneumatic, or manual version. Make sure the pre-drilled holes have the correct diameter to ensure optimal fit and grip.

Areas of application

These rivet nuts are suitable for various applications, including:

• Automotive sector : Fastening components in bodywork and interiors.
• Metal constructions : Creating threaded connections in metal frames and structures.
• Machine building : Mounting parts where access to the rear is limited.

Packaging

These rivet nuts are supplied in sets of 20 pieces, ensuring you have enough stock for your projects.

Important considerations

When selecting the right rivet nut, it is essential to measure the thickness of the workpiece accurately. The measured thickness must fall within the clamping range of the nut to ensure a safe and effective connection.
