Application and functionality

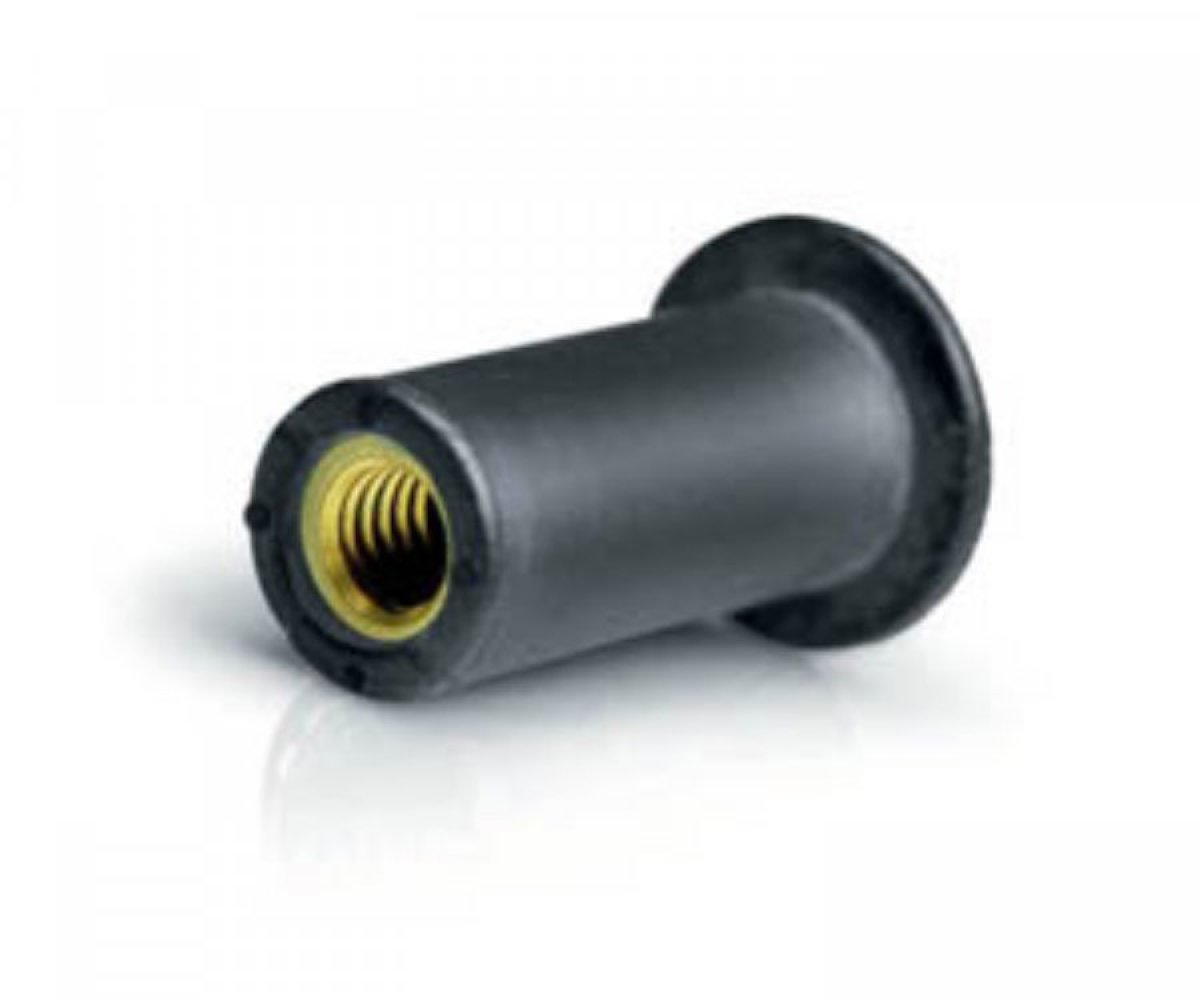

This rubber blind rivet nut with neoprene coating and brass internal thread is designed for applications where vibration damping and acoustic insulation are essential. When a bolt is screwed in, the nut expands, creating a secure connection. When unscrewed, the nut returns to its original shape, allowing for reuse. (junoindustries.eu)

Specifications

• Thread size: M5
• Length: 14 mm
• Clamping range: 4.0 to 10.0 mm
• Material: Neoprene rubber with brass insert
• Head diameter: 14.0 mm
• Outer sleeve diameter: 9.6 mm
• Head height: 0.9 mm
• Pre-drill diameter: 9.7 mm
• Clamping force when properly installed: 0.30-0.90 Nm

Advantages

• Vibration damping: The elastic neoprene rubber absorbs vibrations, extending the lifespan of the connection.
• Acoustic insulation: Reduces sound transmission, ideal for applications where noise reduction is desired.
• Reusability: The nut returns to its original shape after unscrewing, allowing for reuse.
• Easy installation: No special tools required; the nut is simply placed in the pre-drilled hole and expands when the bolt is screwed in. (junoindustries.eu)

Application areas

This blind rivet nut is suitable for various applications, including:

• Automotive sector: Fastening components in cars where vibration damping and sound insulation are required.
• Construction sector: Mounting elements in structures where vibrations and noise must be limited.
• Electronics: Fastening sensitive equipment that needs protection from vibrations.

Installation instructions

1. Preparation: Drill a hole with a diameter of 9.7 mm in the material.
2. Placement: Insert the blind rivet nut into the drilled hole.
3. Fastening: Screw an M5 bolt into the nut; as you tighten, the nut expands and clamps onto the material.
4. Check: Ensure the nut is securely fastened and the desired clamping force is achieved.

Maintenance and storage

• Storage: Store the nuts in a dry place, away from direct sunlight and extreme temperatures.
• Maintenance: Regularly check for wear or damage and replace if necessary to ensure optimal performance.

With this rubber blind rivet nut M5x14, you ensure a reliable and durable connection in applications where vibration damping and acoustic insulation are important.
