Application and functionality

This rivet nut is ideal for situations where you need a strong threaded connection in places where you only have access from one side. Thanks to the rubber neoprene cover, this nut offers excellent vibration damping and is suitable for connecting various materials, such as metal and plastic.

Material and construction

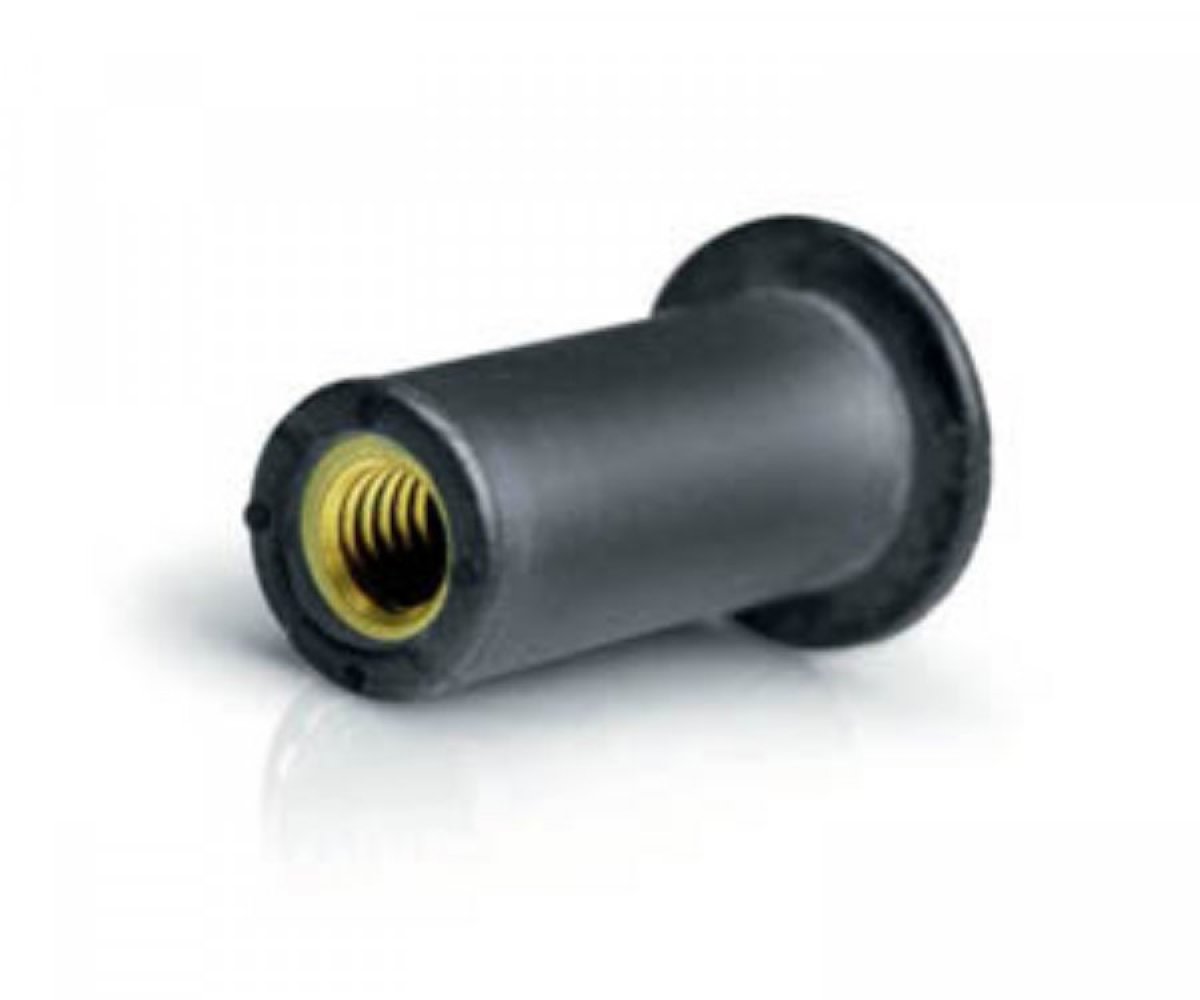

The nut consists of a neoprene (EPDM) rubber body with a brass threaded insert. This provides a combination of flexibility and strength, while the brass insert ensures a durable threaded connection. The elastic material absorbs vibrations and prevents the connection from loosening.

Specifications

• Thread size: M6
• Length: 19 mm
• Clamping range: 0.8 to 4.7 mm
• Material: Neoprene (EPDM) with brass insert
• Head shape: Flat head
• Outer diameter sleeve: 12.7 mm
• Pre-drill diameter: 12.8 mm

Benefits

• Vibration damping: The elastic neoprene material absorbs vibrations, extending the lifespan of the connection.
• Corrosion resistance: Suitable for applications with high corrosion exposure thanks to the use of neoprene and brass.
• Easy installation: Can be easily placed in a pre-drilled hole and does not require special tools for assembly.
• Electrical insulation: The rubber material is electrically non-conductive, providing extra safety in electrical applications.

Installation instructions

1. Drill a hole with a diameter of 12.8 mm at the desired location.
2. Insert the rivet nut fully into the mounting hole.
3. Screw an M6 bolt into the nut; when tightening, the nut will secure itself and form a strong connection.

Areas of application

This rivet nut is suitable for various applications, including:

• Automotive sector: For fastening components in cars where vibration damping is essential.
• Electrical installations: Where electrical insulation and corrosion resistance are required.
• Construction sector: For connecting different materials in constructions with limited access.

With this rivet nut, you ensure reliable and durable connections in a wide range of applications.
