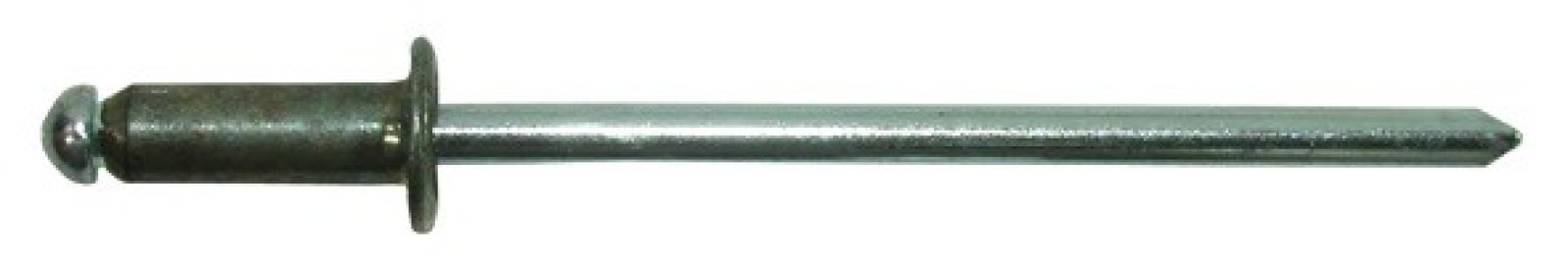

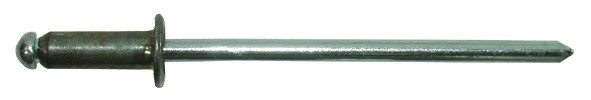

Robust blind rivets for reliable connections

These blind rivets combine an aluminium sleeve with a steel mandrel, providing an optimal balance between lightness and strength. They are ideal for permanently joining materials where a high degree of sturdiness is required.

Technical specifications

• Sleeve diameter: 4.8 mm
• Sleeve length: 25 mm
• Clamping range: 18.0 - 21.0 mm
• Head diameter: 9.5 mm
• Pre-drilling: 4.9 mm
• Tensile strength: 2230 N
• Shear value: 1690 N
• Sleeve material: Aluminium
• Mandrel material: Steel

Applications

These blind rivets are suitable for various applications, including:

• Automotive sector: Attaching body parts and interior components.
• Construction sector: Joining metal profiles and sheets.
• General construction: Applications where a strong and durable connection is required.

Advantages of aluminium/steel blind rivets

• Lightweight: Thanks to the aluminium sleeve, these rivets are light, reducing the overall weight of the construction.
• Strong and durable: The steel mandrel provides high tensile and shear strength, resulting in reliable connections.
• Easy installation: With the right pre-drilling and tools, these rivets are quick and easy to install.

Installation tips

• Pre-drilling: Ensure accurate pre-drilling of 4.9 mm to guarantee an optimal fit.
• Tools: Use suitable tools to prevent damage to the material or the rivet.
• Clamping range: Check that the thickness of the material to be joined falls within the clamping range of 18.0 to 21.0 mm.

With these blind rivets, you are assured of strong and durable connections in all your projects.
