Robust blind rivets for reliable connections

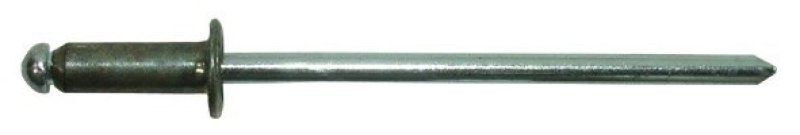

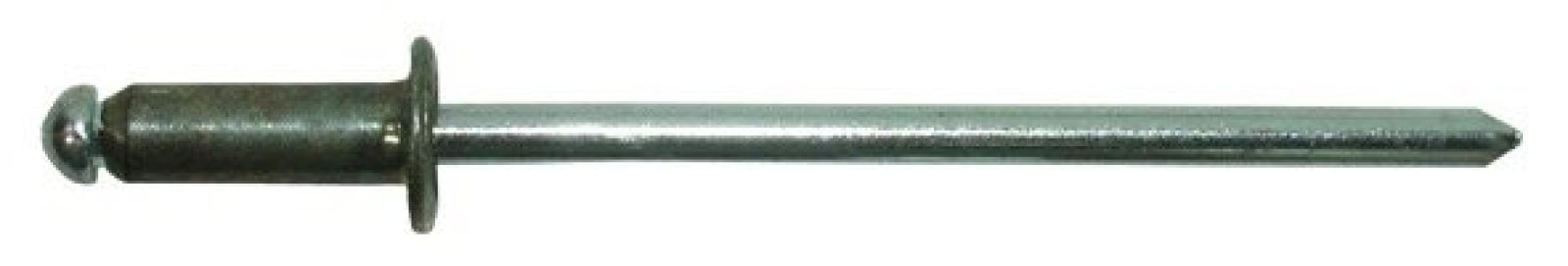

These blind rivets combine an aluminium sleeve with a steel mandrel, providing an optimal balance between lightness and strength. They are designed for securely joining materials with a thickness between 9.0 and 11.0 mm.

Technical specifications

• Sleeve diameter: 6 mm
• Sleeve length: 16 mm
• Clamping range: 9.0 - 11.0 mm
• Head diameter: 12 mm
• Drill diameter: 6.1 mm
• Shear strength: 3,000 N
• Tensile strength: 3,900 N

Applications in various sectors

These blind rivets are suitable for use in construction, automotive, and mechanical engineering. They provide a strong and permanent connection, even when only one side of the workpiece is accessible.

Installation instructions

For optimal fastening, it is important to pre-drill a 6.1 mm hole. Use a suitable rivet tool to place the rivets correctly and prevent damage to the material.

Packaging and availability

This set contains 20 blind rivets, ideal for both small and larger projects. They are immediately available for use in your next job.
