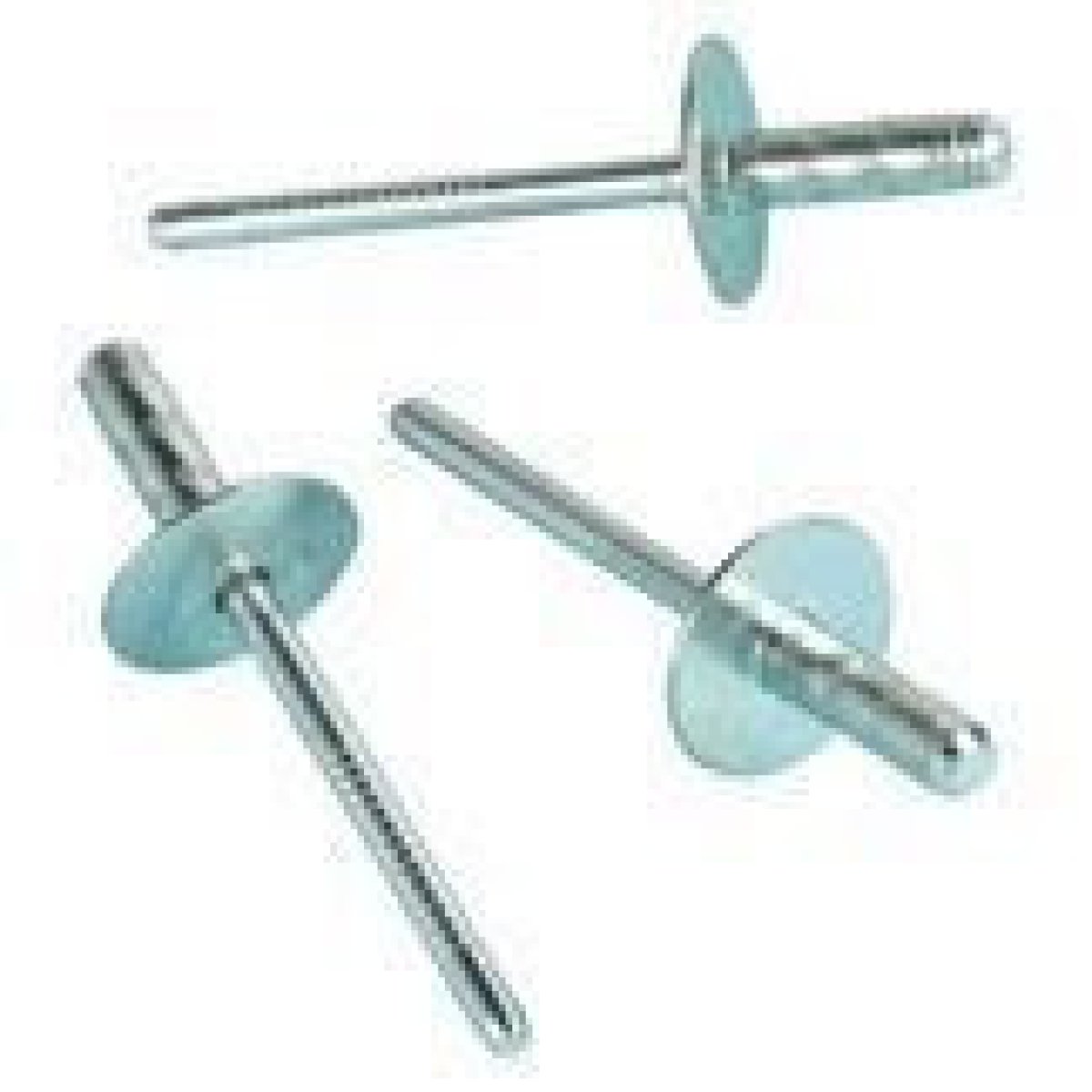

Robust blind rivet for versatile applications

This blind rivet combines an aluminium sleeve with a steel mandrel, resulting in a strong and durable connection. The large head with a diameter of 9.5 mm provides increased clamping force and even pressure distribution across the material surface.

Technical specifications

• Sleeve diameter: 3.2 mm
• Sleeve length: 10 mm
• Head diameter: 9.5 mm
• Clamping range: 5.0 - 7.0 mm
• Pre-drilling: 3.3 mm
• Tensile strength: 980 N
• Shear value: 760 N

Application possibilities

This blind rivet is ideal for joining materials in sectors such as:

• Automotive: Fastening of body panels and interior parts.
• Construction: Installation of cladding and metal structures.
• Mechanical engineering: Assembly of machine parts and enclosures.

Advantages of the large head

• Increased clamping force: The larger head diameter provides better pressure distribution, which is essential when joining softer materials.
• Aesthetic finish: The large head offers a neat and finished appearance on the visible surface.

Installation tips

• Pre-drilling: Use a drill with a diameter of 3.3 mm for optimal fit.
• Tool: Use a suitable rivet tool for efficient and safe installation.
• Material check: Ensure that the clamping range of 5.0 to 7.0 mm matches the thickness of the materials to be joined.

Packaging

These blind rivets are supplied in a pack of 100 pieces, which is sufficient for both small and medium-sized projects.

Quality and reliability

With a tensile strength of 980 N and a shear value of 760 N, these blind rivets offer the reliability you need for strong and durable connections in various applications.
