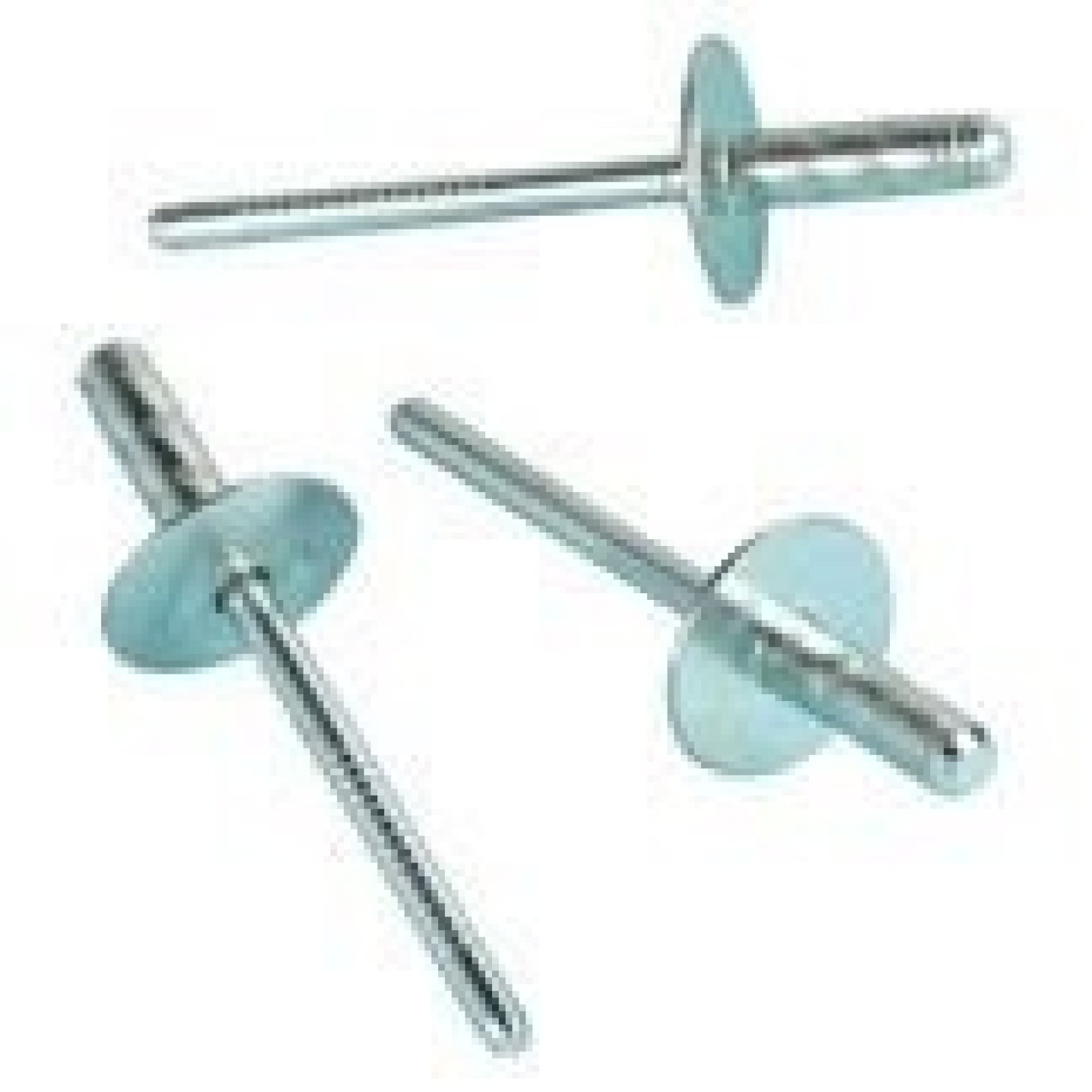

Robust blind rivet for versatile applications

This blind rivet with a diameter of 5.0 mm and a length of 12 mm is designed for securely joining materials where access is only possible from one side. The combination of an aluminium sleeve and a steel mandrel ensures a strong and reliable connection.

Large head for optimal pressure distribution

The large head with a diameter of 14 mm distributes the pressure evenly across the material surface. This reduces the risk of tearing, especially with thin or sensitive materials, and ensures a stable fastening.

Technical specifications

• Sleeve diameter: 5.0 mm
• Sleeve length: 12 mm
• Head diameter: 14 mm
• Clamping range: 6.0 - 8.0 mm
• Sleeve material: Aluminium
• Mandrel material: Steel
• Shear strength: 2000 N
• Tensile strength: 2500 N

Applications in various sectors

These blind rivets are ideal for use in the automotive sector, construction, and mechanical engineering. They offer a quick and efficient way to join materials without needing access from both sides.

Installation tips for optimal performance

• Use a 5.1 mm drill for pre-drilling to ensure the rivet fits perfectly.
• Make sure the material thickness falls within the clamping range of 6.0 to 8.0 mm for optimal grip.
• Use a suitable blind rivet tool to install the rivet correctly and safely.

With these blind rivets, you are assured of a reliable and durable connection in a wide range of applications.
