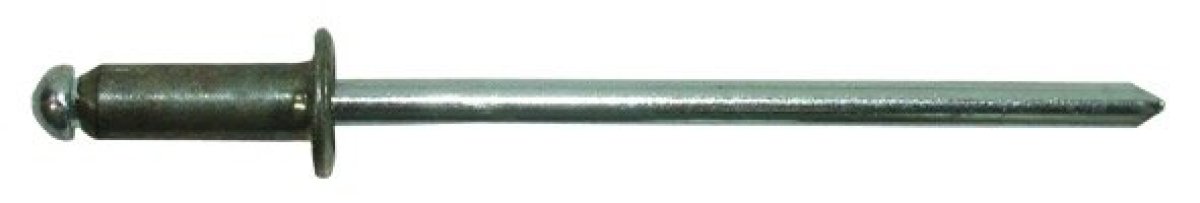

High-quality stainless steel A2/A2 blind rivet 4x10 mm

This blind rivet is made of A2 grade (AISI 304) stainless steel, providing excellent corrosion resistance and durability. With a diameter of 4 mm and a length of 10 mm, this rivet is suitable for various applications where a strong and reliable connection is required.

Technical specifications

• Sleeve diameter (d): 4 mm
• Sleeve length (l): 10 mm
• Clamping range: 4.5 - 6.5 mm
• Head diameter (dk): 7.5 - 8 mm
• Head height (k): 1.7 mm
• Sleeve and mandrel material: Stainless steel A2 (AISI 304)
• Shear strength: 3100 N
• Tensile strength: 3800 N

Applications

This blind rivet is ideal for joining metal sheets and other materials in situations where only one side is accessible. Thanks to the clamping range of 4.5 to 6.5 mm, this rivet is suitable for materials with a combined thickness within this range. The high shear and tensile strength guarantee a strong and reliable connection.

Installation

A suitable blind rivet tool is required for installing this blind rivet. Make sure the material to be joined falls within the specified clamping range for optimal performance. The rivet is installed by pulling the mandrel with the tool, causing the sleeve to expand and create a strong connection.

Advantages of A2 stainless steel material

• Corrosion resistance: Resistant to rust and corrosion, ideal for use in damp or corrosive environments.
• Durability: Longer lifespan and less maintenance required.
• Aesthetic: Neat and professional appearance, suitable for various applications.

Packaging

These blind rivets are supplied in sets of 20 pieces, ensuring you have enough stock for your projects. The packaging is designed to protect the rivets from damage during transport and storage.

Compatibility

These rivets comply with the DIN 7337 standard, ensuring compatibility with standard blind rivet tools and other fasteners. This makes them suitable for both professional and DIY applications.

Important considerations

When choosing the right blind rivet, it is essential to consider the clamping range and material thickness. Make sure the total thickness of the materials to be joined falls within the specified clamping range of 4.5 to 6.5 mm for an optimal and safe connection.
