Product description

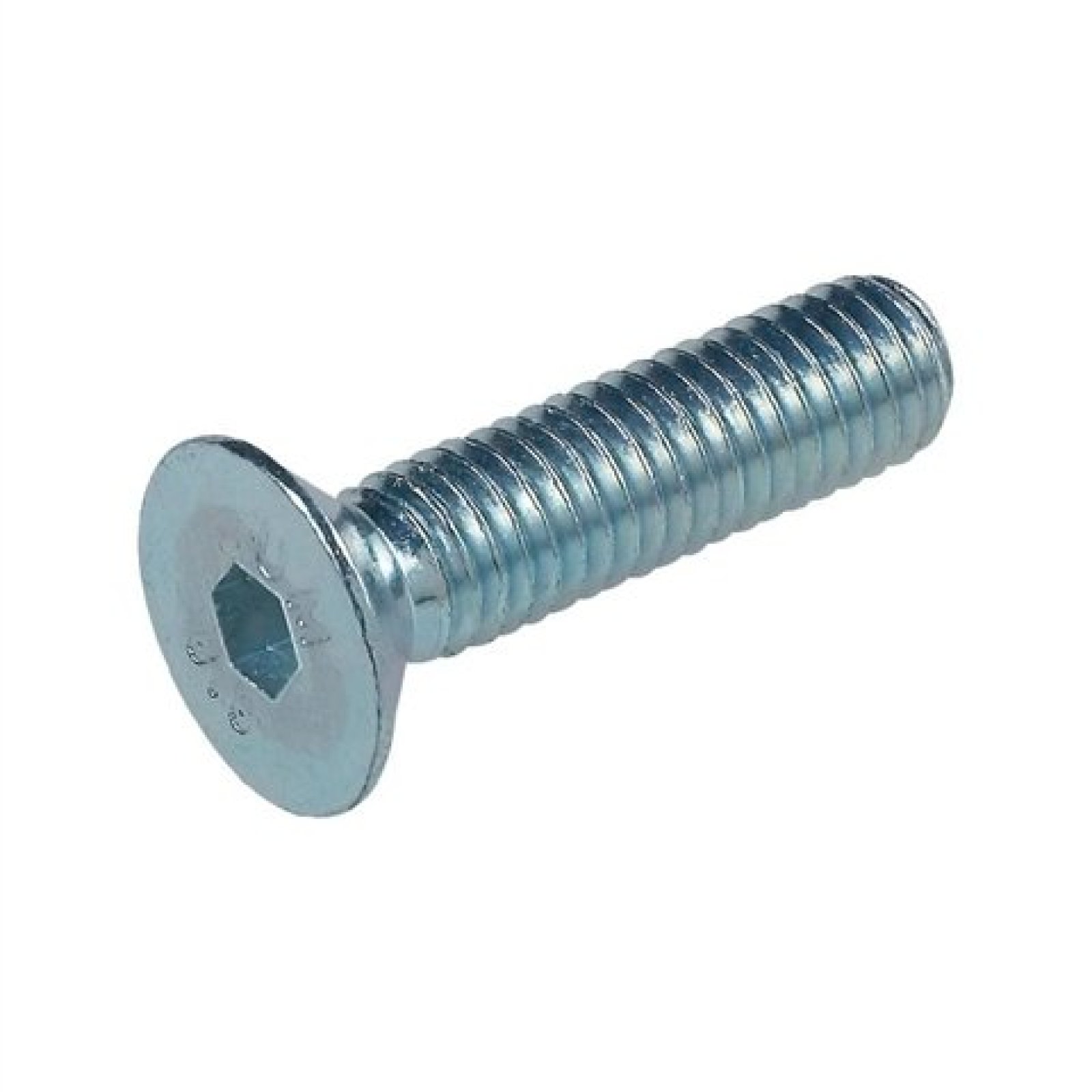

This countersunk head hex socket bolt M5x35 is made from steel with a strength class of 8.8 and features an electrolytically zinc-plated finish. This provides an excellent combination of strength and corrosion resistance, making the bolt suitable for various applications in the automotive sector and other industries.

Technical specifications

• Thread size: M5
• Length: 35 mm
• Strength class: 8.8
• Material: Steel
• Surface treatment: Electrolytically zinc plated
• Head shape: Countersunk head
• Drive type: Hex socket (wrench size 3 mm)
• Head diameter: 10 mm
• Head height: 4.1 mm
• Thread pitch: 0.8 mm

Applications

This bolt is ideal for situations where a flush finish is required, such as:

• Fastening body panels
• Mounting interior components
• Installing accessories

The countersunk head ensures that the bolt sits flush with the surface after installation, contributing to a sleek and professional appearance.

Advantages

• High strength: The 8.8 strength class provides sufficient tensile strength for most applications.
• Corrosion resistant: The zinc-plated finish protects against rust and extends service life.
• Aesthetically pleasing: The countersunk head ensures a smooth finish without protruding parts.

Standards

This hex socket bolt complies with the following standards:

• DIN 7991 : German standard for countersunk head hex socket bolts.
• ISO 10642 : International standard corresponding to DIN 7991.

Packaging

The bolts are supplied in a package of 100 pieces, which is convenient for both professional and private users who need to make multiple fastenings.

Compatibility

These M5x35 bolts are compatible with standard M5 threads and can be used in combination with nuts and other fasteners with the same specifications.

Installation

A 3 mm hex key (Allen key) is required to tighten these bolts. Make sure the bolts are tightened to the correct torque to ensure optimal performance and safety.
