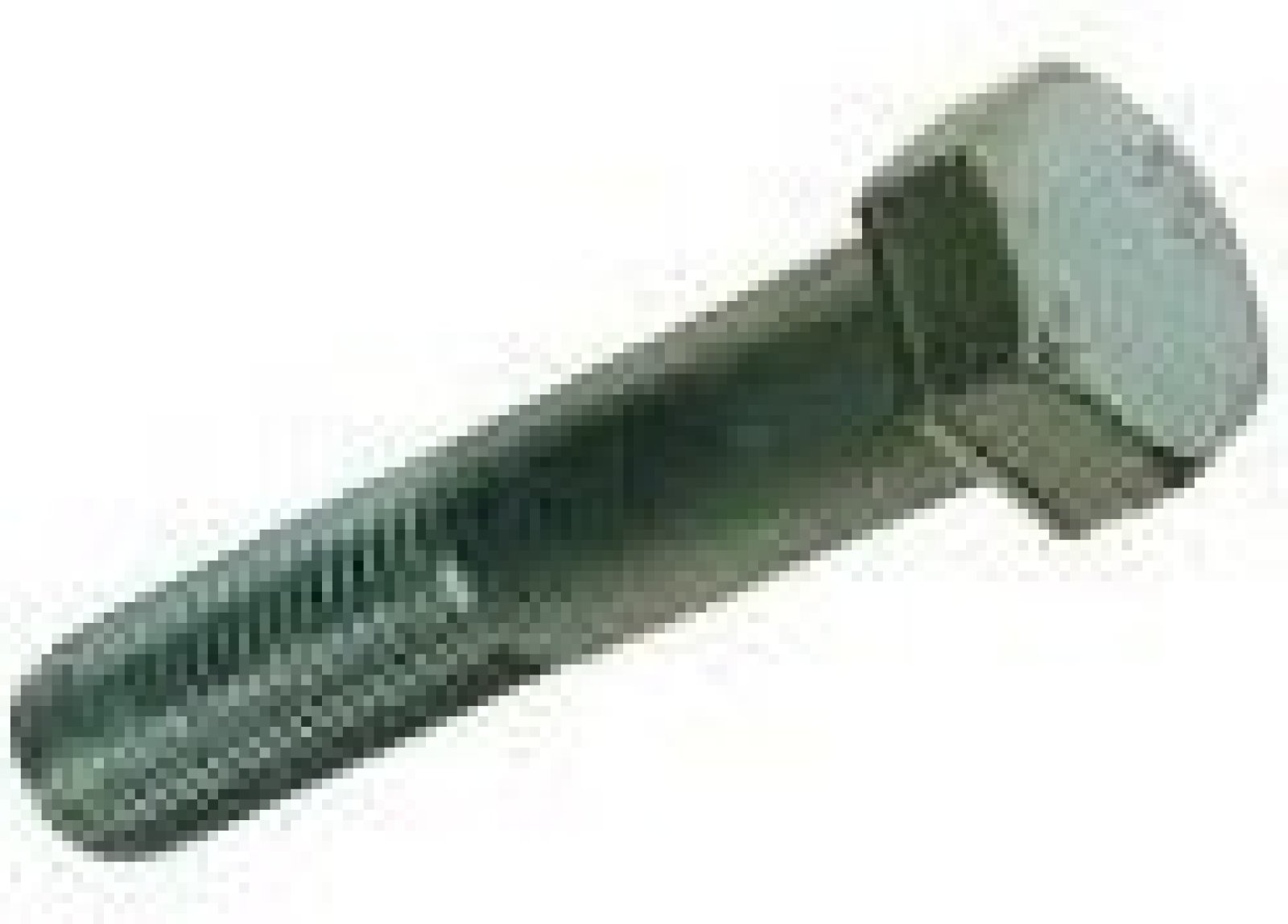

Robust stainless steel A2 hex bolt M16x120 mm for various applications

This hex bolt with a diameter of M16 and a length of 120 mm is made from A2 grade stainless steel. This material is known for its excellent corrosion resistance, making the bolt suitable for both indoor and outdoor use. The hex head allows the bolt to be tightened securely with a standard 24 mm wrench size.

Technical specifications

• Diameter (d): M16
• Length (l): 120 mm
• Thread length (b): 38 mm
• Wrench size (s): 24 mm
• Head height (k): 10 mm
• Thread pitch: 2.0 mm
• Material: Stainless steel A2 (AISI 304)
• Strength class: 70
• Standard: DIN 931 / ISO 4014

Application possibilities

This hex bolt is ideal for constructions where a strong and durable connection is required. Thanks to the corrosion resistance of A2 stainless steel, the bolt is suitable for use in damp environments, such as construction, shipbuilding, and various industrial applications. The partial thread ensures a secure connection, while the smooth part of the shank provides extra strength.

Advantages of A2 stainless steel material

• Corrosion resistance: Resistant to rust and oxidation, ideal for outdoor use.
• Durability: Long lifespan due to the high quality of the material.
• Versatility: Suitable for various applications in different sectors.

Assembly advice

When installing this hex bolt, it is important to use the correct 24 mm wrench size for optimal grip and to prevent damage to the bolt head. Ensure that the bolt is properly aligned with the material to be fastened to guarantee a strong and safe connection.

Available packaging

This hex bolt is available individually or in packs of 25, depending on your project needs. This offers flexibility for both small and large projects.

Compliance and quality

The bolt complies with DIN 931 and ISO 4014 standards, ensuring high quality and reliability. The strength class of 70 indicates a tensile strength of 700 N/mm², providing a robust and durable fastening.

With this stainless steel A2 hex bolt M16x120 mm, you choose a reliable and durable solution for all your fastening needs.
