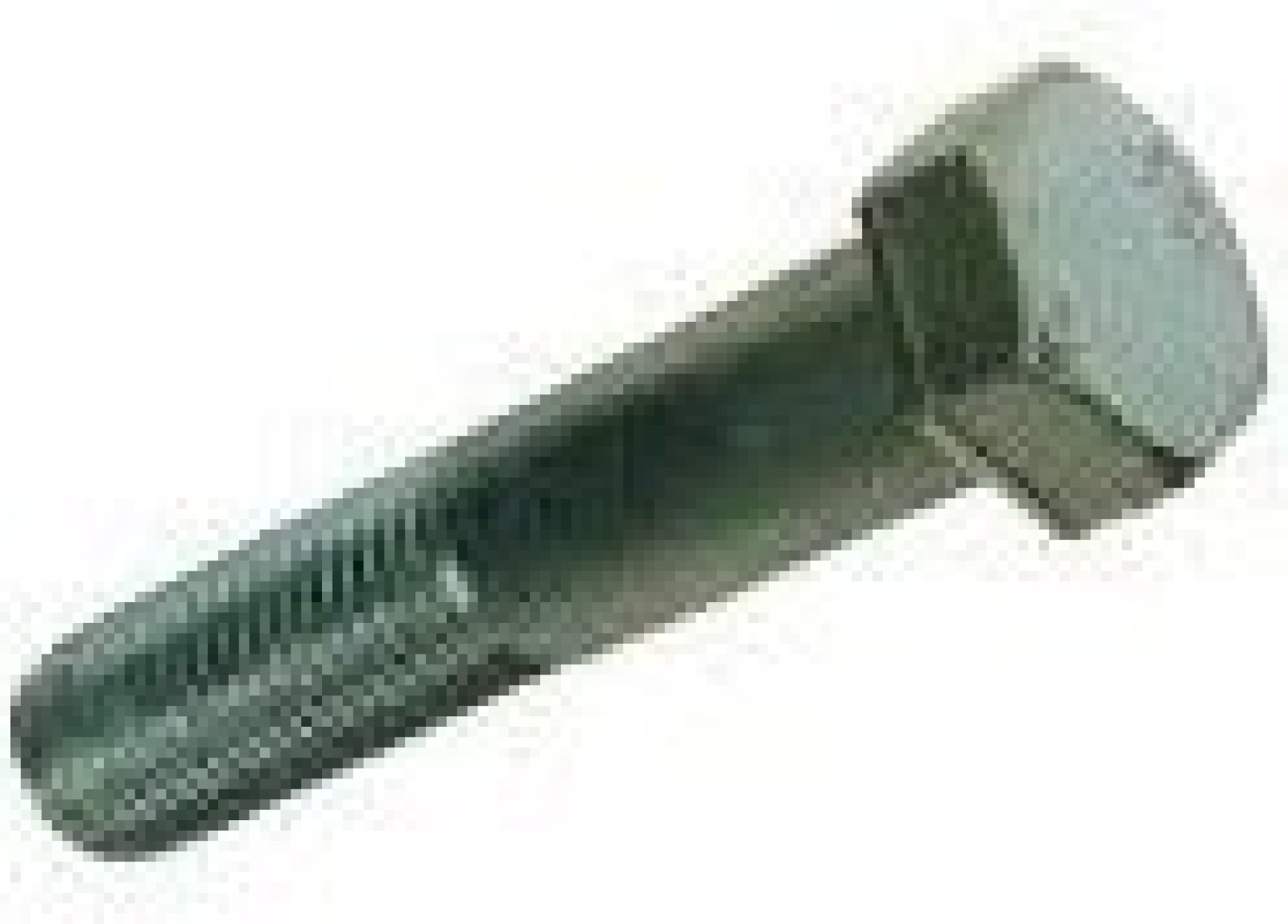

High-quality stainless steel A2 hex bolt M5x50 for reliable fastening

This hex bolt with a diameter of M5 and a length of 50 mm is made from stainless steel (A2), providing excellent corrosion resistance. The bolt complies with DIN 931 and ISO 4014 standards, ensuring precision and reliability in various applications.

Technical specifications

• Diameter (d): M5
• Length (l): 50 mm
• Thread length (b): 16 mm
• Head height (k): 3.5 mm
• Wrench size (s): 8 mm
• Thread direction: Right
• Thread type: Metric thread
• Material: Stainless steel A2 (AISI 304)
• Strength class: 70 (700 N/mm²)

Applications and benefits

This hex bolt is ideal for joining and fastening parts in various sectors, including the automotive industry. Thanks to the A2 stainless steel composition, the bolt offers:

• Excellent corrosion resistance: Suitable for use in humid and corrosive environments.
• High tensile strength: With a strength class of 70, the bolt delivers reliable performance under load.
• Precise dimensions: Meets international standards for a perfect fit and easy installation.

Compatibility with nuts and washers

For optimal fastening, it is recommended to combine this hex bolt with matching nuts and washers:

• Hex nut M5 stainless steel A2: Ensures a strong and secure connection.
• Washer M5 stainless steel A2: Increases the contact surface and reduces the risk of damage to the fastened material.

Packaging and availability

These hex bolts are supplied in packs of 100 pieces, making them convenient for both small and large projects. The bolts are available directly from stock, so you can quickly get started with your fastening work.

Compliance and quality

The hex bolt meets the following standards and specifications:

• DIN 931 / ISO 4014: International standards for hex bolts with partial thread.
• Material certification: Made from high-quality stainless steel A2 (AISI 304) for durability and reliability.

With this stainless steel A2 hex bolt M5x50, you are assured of a high-quality fastening solution that meets the highest quality standards.
