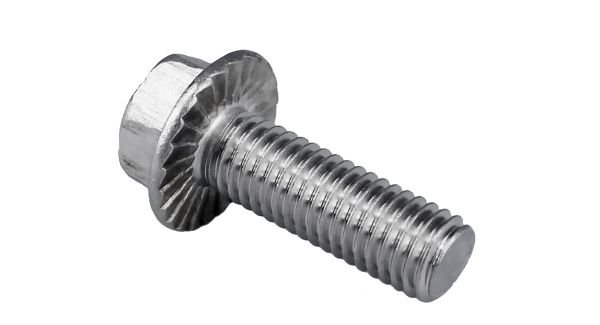

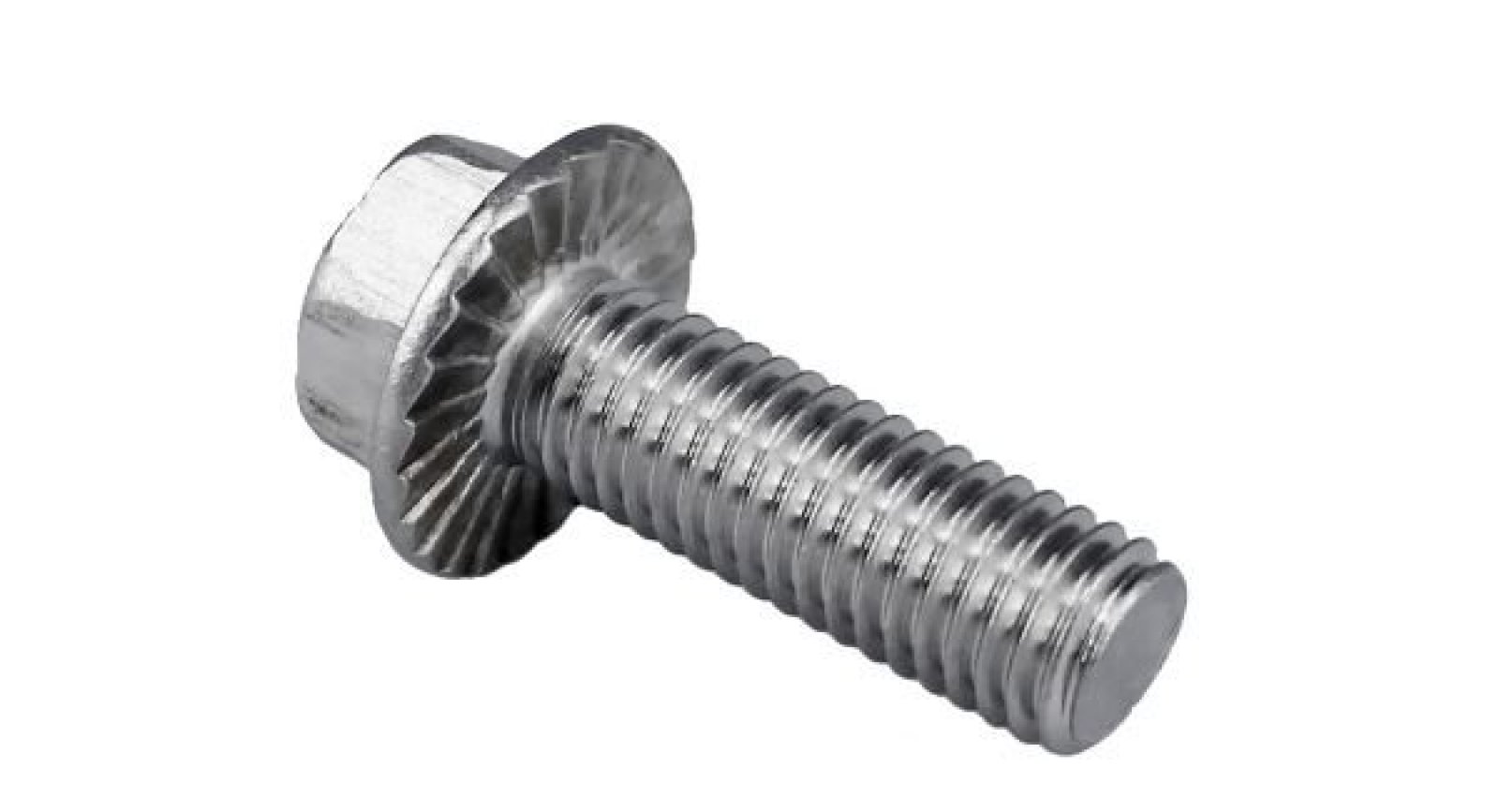

High-quality stainless steel flange bolt

This M6x30 flange bolt is made from A2 type stainless steel (AISI 304), providing excellent corrosion resistance and durability. This makes the bolt suitable for various applications, both indoors and outdoors.

Practical design with hex head and flange

The bolt features a hex head with an integrated flange, offering several advantages:

• Even force distribution : The flange distributes the pressure evenly over the surface, reducing the risk of material damage.
• Reduction of extra components : Thanks to the flange, the use of additional washers is unnecessary, simplifying assembly.

Serration for extra grip

The serration under the flange increases friction between the bolt and the fastened material. This results in:

• Better self-locking properties : The bolt stays firmly in place, even under vibrations or dynamic loads.
• Increased reliability : The risk of the bolt coming loose is significantly reduced.

Technical specifications

• Diameter : M6
• Length : 30 mm
• Wrench size : 10 mm
• Head height : 6.6 mm
• Flange diameter : 14.2 mm
• Thread type : Metric with a pitch of 1.0 mm
• Material : Stainless steel A2 (AISI 304)
• Standard : DIN 6921

Application possibilities

This flange bolt is ideal for various applications, including:

• Automotive sector : Fastening parts in cars where vibration resistance is essential.
• Construction sector : Assembly of structures where corrosion resistance is required.
• Mechanical engineering : Assembly of machines and equipment exposed to dynamic loads.

Advantages at a glance

• Corrosion resistant : Suitable for use in humid and corrosive environments.
• Self-locking : Thanks to the serration, the bolt stays firmly in place.
• Easy assembly : The integrated flange eliminates the need for extra washers.
• Versatile : Suitable for various industries and applications.

With this stainless steel A2 flange bolt DIN 6921 M6x30 with serration, you choose a reliable and durable fastening solution that meets high quality standards.
