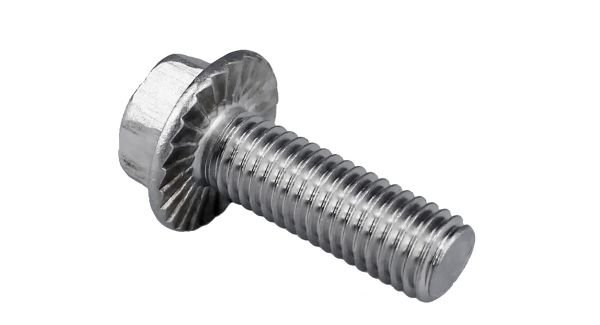

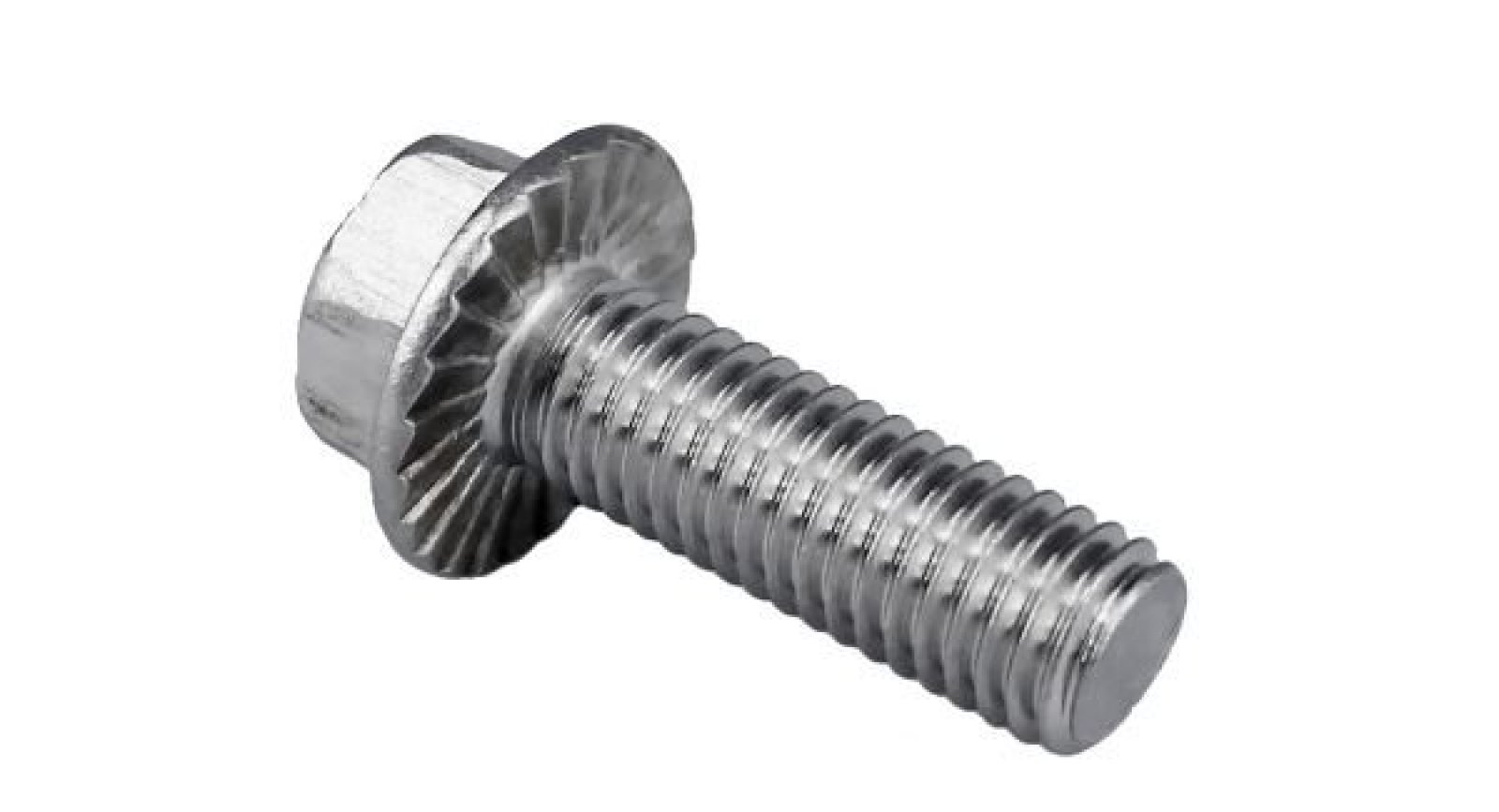

High-quality stainless steel A2 flange bolt M8x16

This hex flange bolt M8x16 is made from A2 grade stainless steel, providing excellent corrosion resistance. This makes the bolt suitable for both indoor and outdoor applications, even in humid environments.

Specifications according to DIN 6921

The bolt meets the DIN 6921 standard, ensuring precise dimensions and reliable performance. The main specifications are:

• Diameter (d): M8
• Length (L): 16 mm
• Wrench size (s): 13 mm
• Head height (k): 8.1 mm
• Head diameter (dc): 18 mm
• Thread type: Metric coarse thread (standard)
• Material: Stainless steel A2
• Strength class: 70

Advantages of the hex flange head

The integrated flange under the hex head increases the contact surface, improving pressure distribution and reducing the risk of damage to the fastened material. This often makes extra washers unnecessary and saves time during assembly.

Applications in various sectors

Thanks to its robust construction and corrosion resistance, this flange bolt is ideal for use in:

• Automotive sector
• Construction
• Mechanical engineering
• Installation technology

Set of 20 pieces

This set contains 20 M8x16 flange bolts, which is convenient for projects requiring multiple fastening points. The bolts are individually packaged to prevent damage during transport.

Easy assembly

The hex head with flange enables quick and easy assembly with standard tools. The metric coarse thread ensures a strong and reliable connection.

Quality guarantee

These flange bolts are produced according to strict quality standards and comply with DIN 6921 specifications. This guarantees a reliable and durable fastening solution for various applications.
