Product description

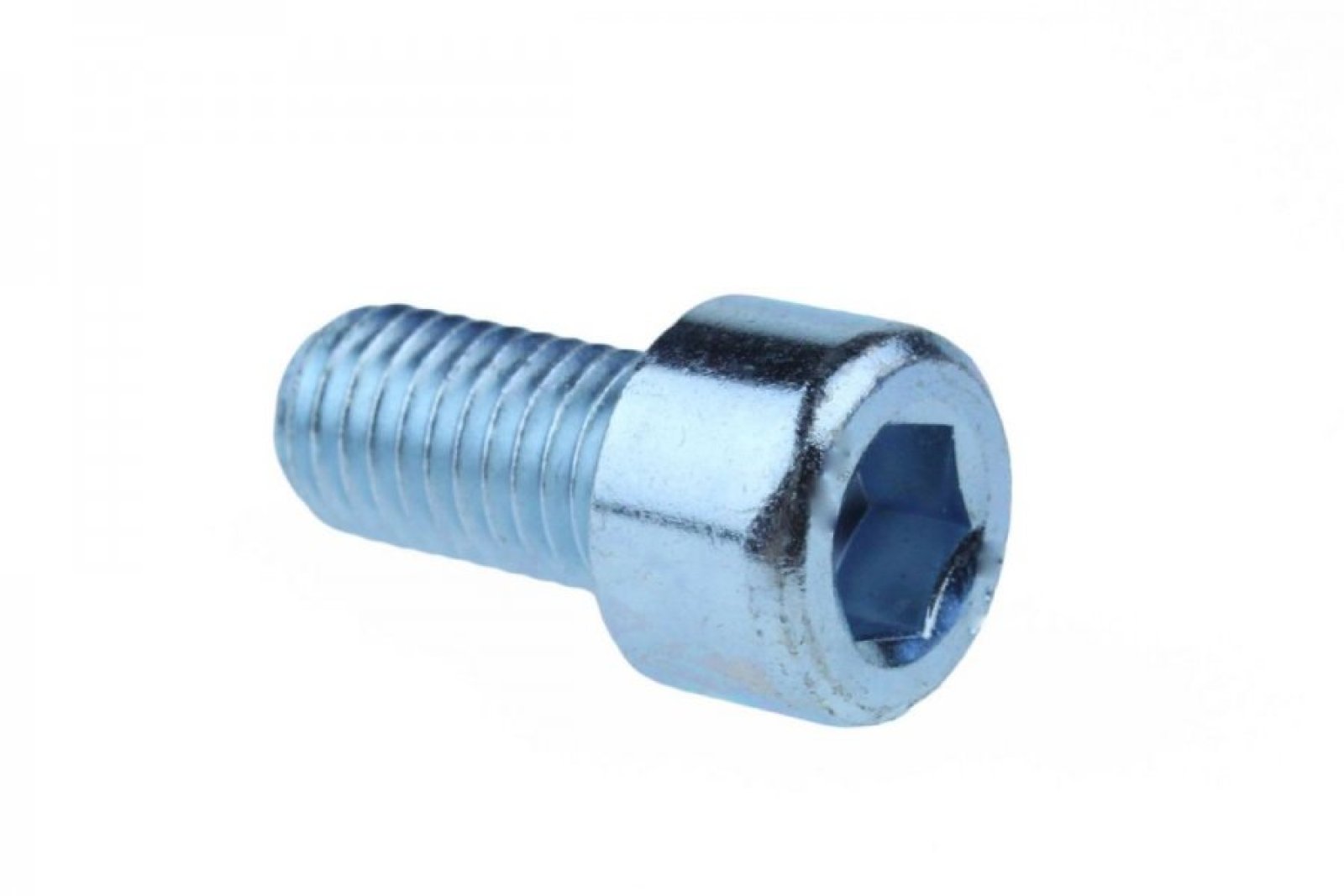

These hex socket head cap screws with cylinder head comply with the DIN 912 standard and are made from grade 8.8 steel. They have a diameter of M3 and a length of 10 mm, making them suitable for various applications in the automotive sector.

Material and finish

• Material: Grade 8.8 steel
• Surface treatment: Electroplated zinc

The electroplated zinc coating provides excellent corrosion protection, extending the lifespan of the screws.

Technical specifications

• Diameter: M3
• Length: 10 mm
• Thread direction: Right
• Thread type: Metric thread
• Wrench size: 2.5 mm
• Head height: 3 mm
• Head diameter: 5.5 mm
• Pitch: 0.5 mm

Applications

These screws are ideal for:

• Fastening parts in engine compartments
• Mounting body panels
• General repairs and maintenance work

Advantages

• High tensile strength: Thanks to grade 8.8 steel
• Corrosion resistant: Due to electroplated zinc coating
• Easy assembly: Hex socket head for firm grip

Standards

These screws comply with the following standards:

• DIN 912
• ISO 4762
• NEN 1241
• BS 4168-1
• ASME B18.3.1M
• NF E25-125

Packaging

The screws are supplied in sets of 20 pieces, which is convenient for both small and larger projects.

Dimensions

• b: 18 mm
• d-D: M3
• dk (max.): 5.5 mm
• Full thread if L ≤: 20 mm
• k (max.): 3 mm
• L (mm): 10 mm
• P: 0.5 mm
• s: 2.5 mm
