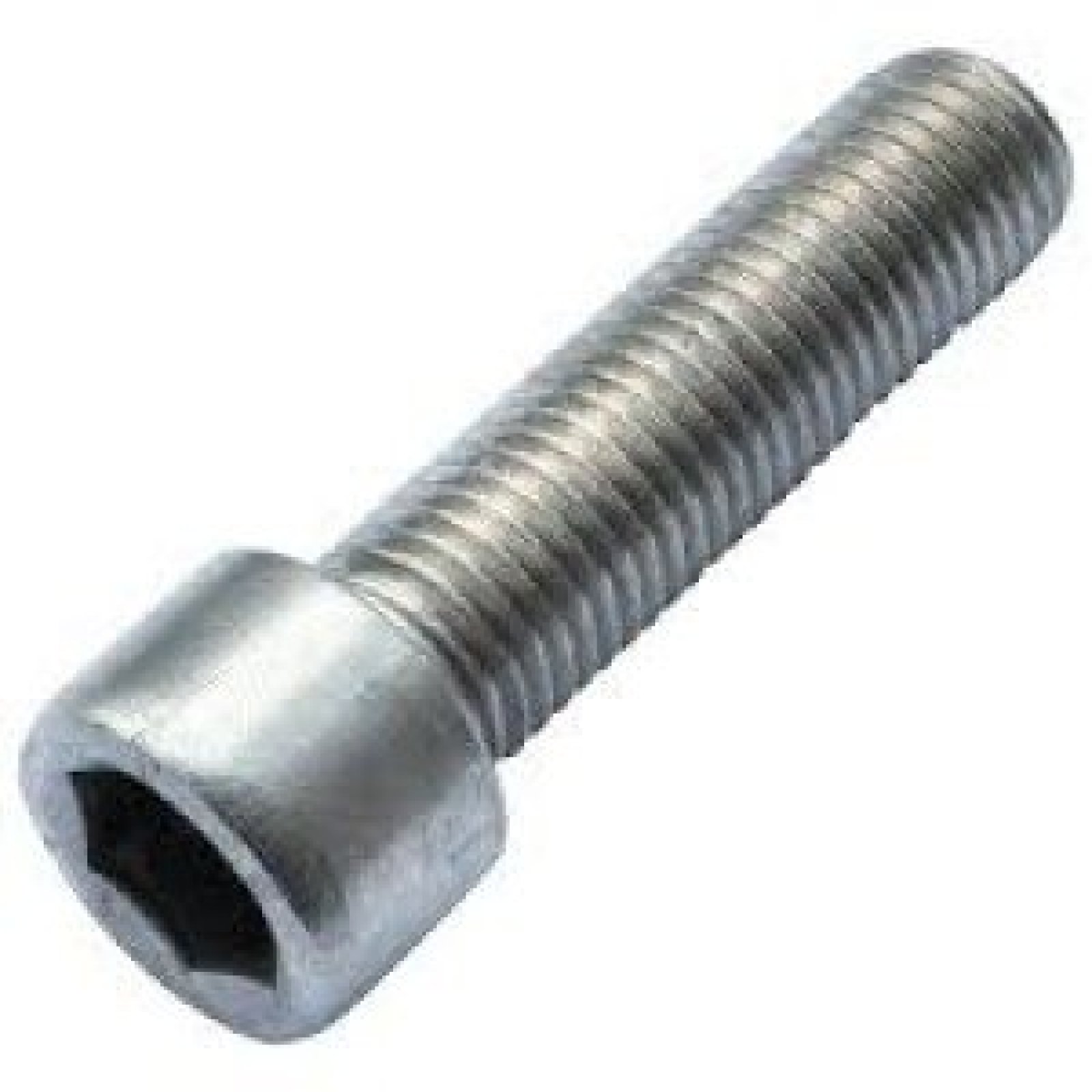

High-quality stainless steel hex socket cap screw

This hex socket cap screw, also known as an Allen bolt, is made from A2 (AISI 304) quality stainless steel. This material offers excellent corrosion resistance, making the bolt suitable for various applications, both indoors and outdoors.

Specifications and dimensions

• Thread size: M12
• Length: 50 mm
• Head diameter: 18 mm
• Head height: 12 mm
• Wrench size: 10 mm
• Thread length: 36 mm
• Thread pitch: 1.75 mm

These dimensions comply with DIN 912 and ISO 4762 standards, ensuring reliable and consistent quality.

Applications in the automotive sector

In the automotive industry, the reliability of fasteners is crucial. This M12x50 hex socket cap screw with cylinder head is often used for:

• Fastening engine components
• Mounting chassis components
• Installing suspension systems

The hex socket drive provides a firm grip and allows for higher tightening torques without risking damage to the bolt head.

Advantages of the cylinder head with hex socket

• Space-saving design: The cylinder head protrudes less than traditional bolt heads, which is useful in tight spaces.
• Easy installation: The hex socket drive enables quick and efficient assembly with standard Allen keys.
• Aesthetically pleasing: The sleek design contributes to a neat finish of constructions.

Durability and reliability

The combination of A2 stainless steel and precise finishing according to DIN 912 standards ensures a long lifespan and reliable performance, even under harsh conditions.

Important considerations when using

When using stainless steel bolts, it is important to prevent 'galling' or 'seizing.' This phenomenon can occur when stainless steel bolts and nuts are assembled without lubricant. Recommended measures include:

• Use of a suitable lubricant on the thread.
• Careful assembly to prevent thread damage.
• Avoid reuse of damaged bolts and nuts.

By following these guidelines, the reliability and lifespan of the connections are significantly improved.
