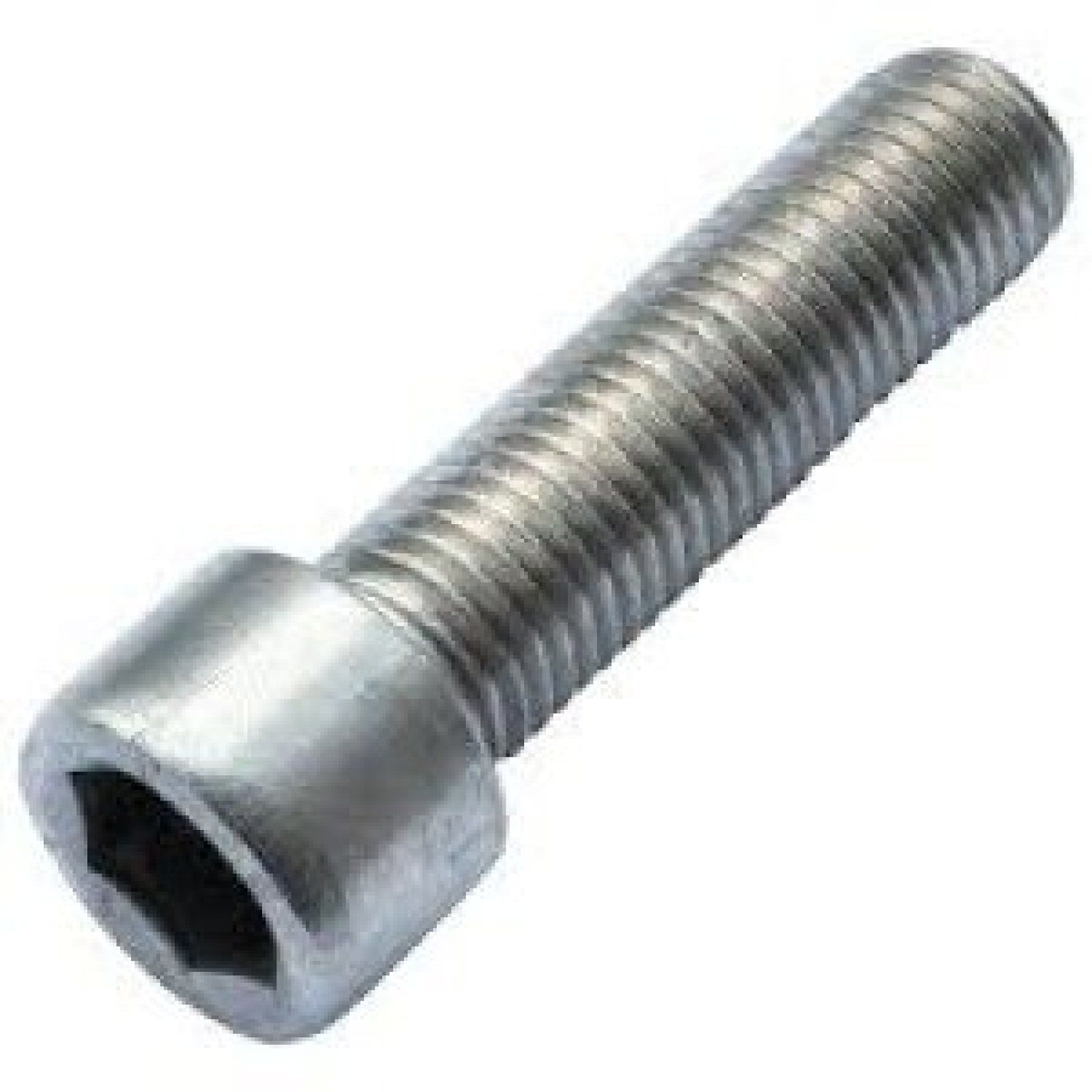

High-quality stainless steel hex socket cap screw

This hex socket cap screw, also known as an Allen bolt, is made from A2 (AISI 304) grade stainless steel. This material offers excellent resistance to corrosion, making the bolt suitable for various applications, both indoors and outdoors.

Technical specifications

• Diameter (d): M12
• Length (L): 80 mm
• Thread type: Metric thread with a pitch of 1.75 mm
• Head diameter (dk): 18 mm
• Head height (k): 12 mm
• Wrench size (s): 10 mm
• Thread length (b): 36 mm
• Strength class: 70

Applications and benefits

This cylinder head screw with hex socket is ideal for situations where a strong and reliable connection is required. The Allen head ensures a flush installation without protruding parts, contributing to a neat finish.

Standards and quality

The bolt complies with DIN 912 and ISO 4762 standards, ensuring consistency and reliability in dimensions and performance. The strength class 70 indicates high tensile strength, suitable for demanding applications.

Packaging and availability

These hex socket cap screws are available in packs of 25, which is convenient for both small and larger projects.

Important considerations

Please note that these bolts can be supplied with either full or partial thread, depending on availability. Both variants meet DIN standards and offer the same high quality and performance.
