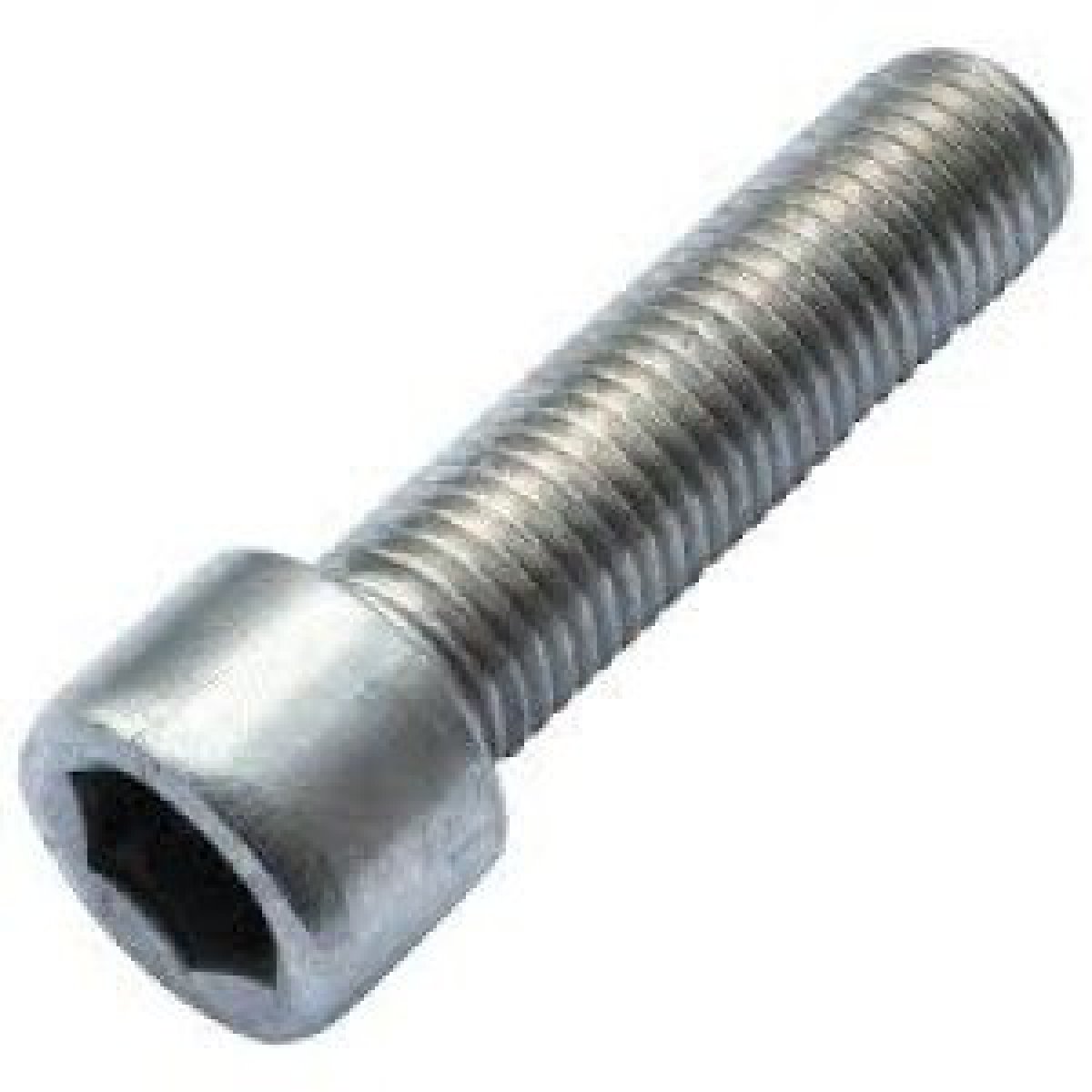

High-quality stainless steel hex socket cap screw

This hex socket cap screw, also known as an Allen bolt, is made from A2 grade (AISI 304) stainless steel. This material offers excellent corrosion resistance, making the bolt suitable for various applications, both indoors and outdoors.

Precise dimensions for reliable connections

With a diameter of M5 and a length of 10 mm, this bolt is ideal for applications where precision and strength are required. The metric thread with a pitch of 0.8 mm ensures a strong and reliable connection.

Practical cylinder head with hex socket

The cylinder head has a diameter of 8.5 mm and a height of 5 mm, providing even force distribution when tightening. The hex socket (Allen) drive with a key size of 4 mm allows you to fasten the bolt easily and securely, even in hard-to-reach places.

Versatile applications in various sectors

This hex socket cap screw is suitable for a wide range of applications, including:

• Automotive : Fastening parts in cars where corrosion resistance and strength are required.
• Construction : Assembly of structures and installations, both indoors and outdoors.
• Mechanical engineering : Assembly of machines and equipment where precision and reliability are essential.

Compliance with international standards

The bolt complies with DIN 912 and ISO 4762 standards, ensuring consistency in quality and dimensions. This makes it easy to integrate the bolt into existing systems and applications.

Packaging and availability

The hex socket cap screws are available in various package quantities, depending on the supplier. This offers flexibility for both small and large projects.

Key specifications at a glance

• Material : Stainless steel A2 (AISI 304)
• Diameter : M5
• Length : 10 mm
• Thread : Metric, pitch 0.8 mm
• Head diameter : 8.5 mm
• Head height : 5 mm
• Key size : 4 mm
• Standard : DIN 912 / ISO 4762

With these specifications, you are assured of a reliable and durable fastening solution for various applications.
