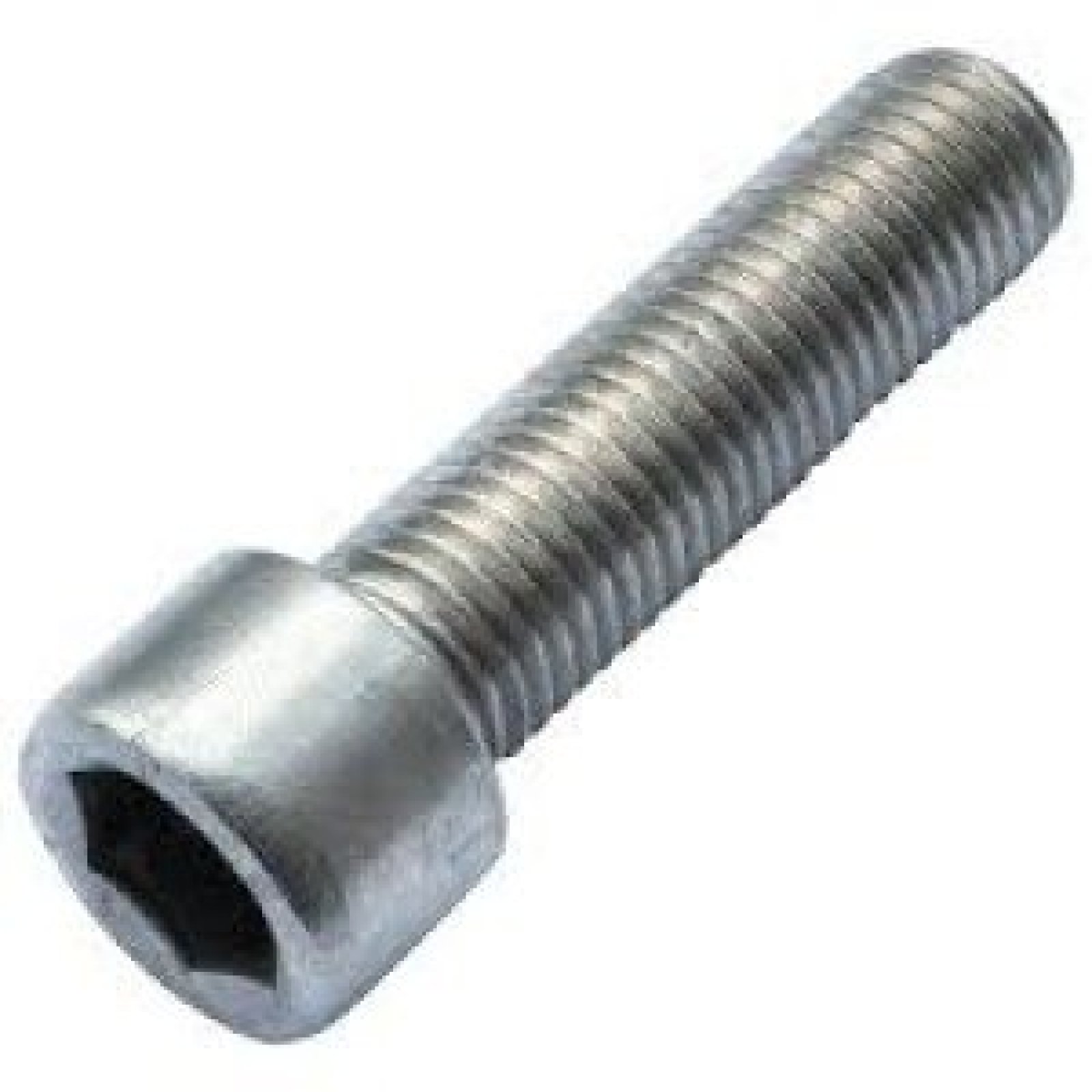

High-quality stainless steel A2 hex socket cap screw M5x35

This hex socket cap screw, also known as an Allen bolt, complies with the DIN 912 standard and is made from stainless steel (A2). With a diameter of M5 and a length of 35 mm, this bolt offers a reliable solution for various fastening applications.

Technical specifications

• Diameter (d): M5
• Length (L): 35 mm
• Thread pitch (P): 0.8 mm
• Head diameter (dk): 8.5 mm
• Head height (k): 5 mm
• Wrench size (s): 4 mm
• Thread length (b): 22 mm
• Material: Stainless steel A2 (AISI 304)
• Strength class: 70
• Thread direction: Right
• Thread type: Metric thread

Advantages of stainless steel A2 material

Stainless steel A2, also known as AISI 304, is renowned for its excellent corrosion resistance. This makes the bolt suitable for use in humid environments or where exposure to mild chemicals occurs. In addition, the material offers high strength and durability, resulting in a long service life for the fastening.

Application possibilities

This hex socket cap screw is versatile for use in various sectors, including:

• Automotive: Fastening components in cars where a strong and corrosion-resistant connection is required.
• Construction: Assembly of metal structures and installations.
• Mechanical engineering: Assembly of machines and equipment.
• Furniture industry: Fastening metal and wooden parts.

Standards and quality

This bolt complies with the following standards:

• DIN 912: German industrial standard for hex socket cap screws.
• ISO 4762: International standard for hex socket cap screws.
• NEN 1241: Dutch standard for hex socket cap screws.

By meeting these standards, you are assured of a product that meets high quality and performance requirements.

Installation and tools

To install this hex socket cap screw, a 4 mm Allen key is required. Make sure the bolt is tightened correctly to ensure a safe and secure connection. Using the correct tools and tightening torques contributes to the optimal performance of the fastening.

Availability and packaging

These hex socket cap screws are available in various packaging quantities, depending on your needs. Whether you need a small quantity for a specific job or a larger stock for regular use, there are options available to meet your requirements.

With this high-quality stainless steel A2 hex socket cap screw M5x35, you are assured of a reliable and durable fastening solution for various applications.
