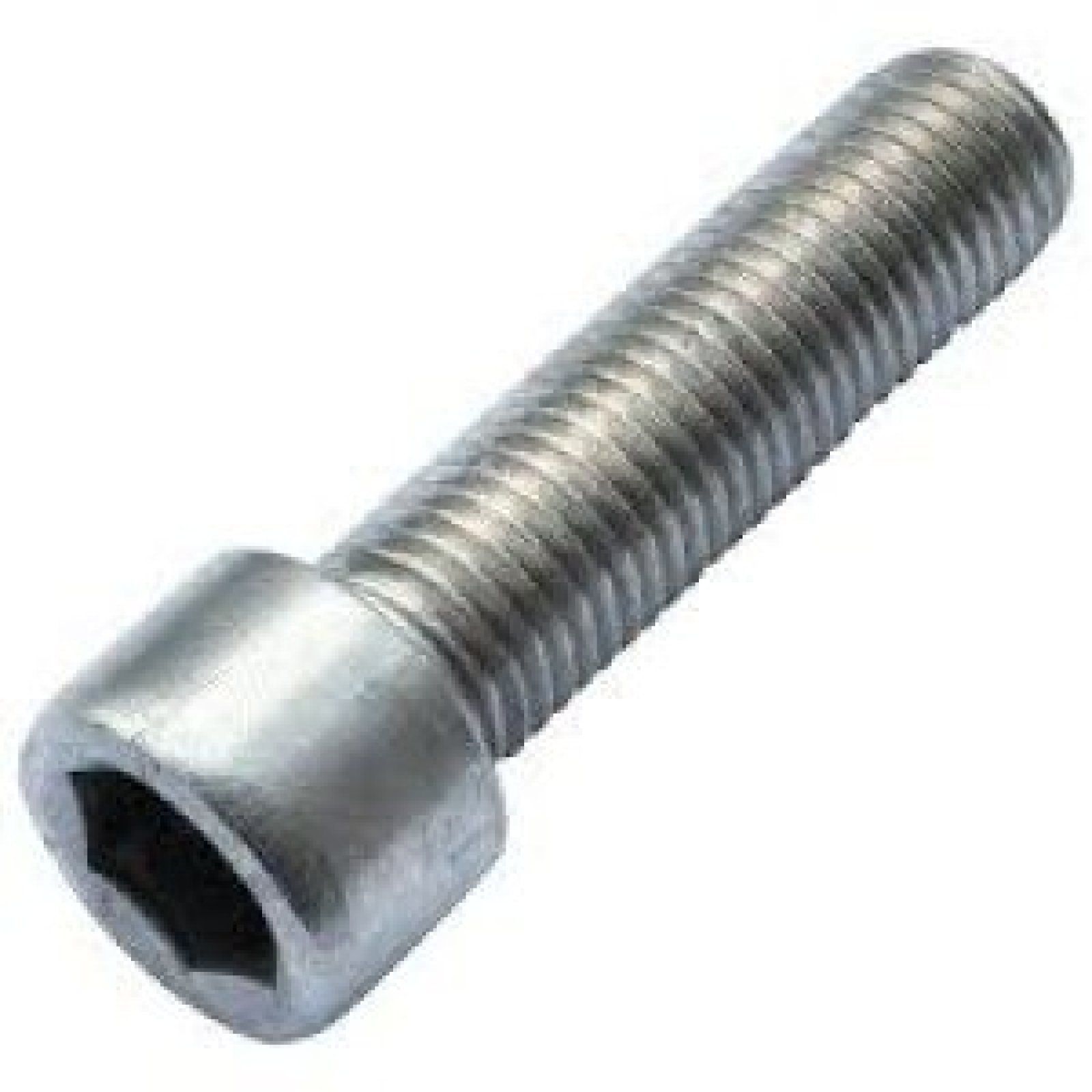

Robust hex socket cap screw for various applications

This hex socket cap screw, also known as an Allen bolt, with an M8 diameter and 100 mm length, is made from corrosion-resistant A2 grade stainless steel. This makes the bolt suitable for a wide range of applications, both indoors and outdoors.

Technical specifications

• Diameter : M8
• Length : 100 mm
• Material : Stainless steel A2 (AISI 304)
• Standard : DIN 912 / ISO 4762
• Head type : Cylinder head with hex socket
• Wrench size : 6 mm
• Head height : 8 mm
• Head diameter : 13 mm
• Thread length : 28 mm
• Thread type : Metric thread with 1.25 mm pitch

Advantages of A2 stainless steel

A2 grade stainless steel, also known as AISI 304, offers excellent corrosion resistance under normal atmospheric conditions. This makes the bolt ideal for use in humid environments and applications where rust formation is undesirable.

Application possibilities

This hex socket cap screw is suitable for various applications, including:

• Automotive sector : Fastening parts where precision and strength are required.
• Construction : Assembly of metal structures and components.
• Mechanical engineering : Assembly of machines and equipment.

Installation and use

The hex socket (Allen) drive ensures a firm grip during tightening, reducing the risk of damaging the bolt. Use a 6 mm Allen key for optimal installation.

Important considerations

Although A2 stainless steel is suitable for many applications, it is less resistant to aggressive environments with high concentrations of chlorine or acids. For such conditions, A4 stainless steel is recommended.
