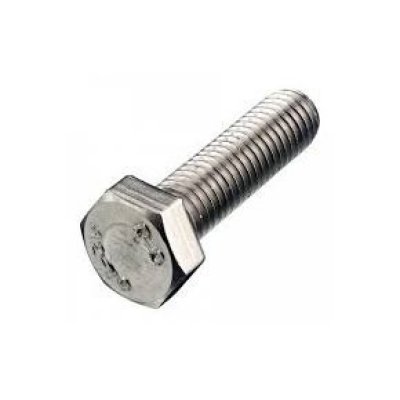

Robust hexagon set screw for various applications

This hexagon set screw with full thread is made of stainless steel (A2), providing excellent corrosion resistance. With a diameter of M14 and a length of 55 mm, this bolt is suitable for a wide range of fastening purposes.

Technical specifications

• Diameter : M14
• Length : 55 mm
• Material : Stainless steel A2 (AISI 304)
• Standard : DIN 933 / ISO 4017
• Wrench size : 22 mm
• Head height : 8.8 mm
• Thread direction : Right
• Thread type : Metric thread with a pitch of 2 mm

Application possibilities

Thanks to the full thread and the use of A2 stainless steel, this set screw is ideal for use in damp environments and situations where corrosion resistance is required. The hexagon head allows the bolt to be firmly tightened with a standard wrench.

Advantages of A2 stainless steel material

• Corrosion resistance : Resistant to rust and oxidation in normal atmospheric conditions.
• Durability : Long lifespan due to the high quality of the material.
• Versatility : Suitable for various applications in construction, industry, and the automotive sector.

Standards and quality

This set screw meets the DIN 933 and ISO 4017 standards, ensuring consistent quality and dimensions. The strength class of 70 N/mm² provides a reliable and strong connection.

Packaging and availability

The set screws are supplied in packs of 50 pieces, which is convenient for both small and larger projects. They are available directly from stock, so you can quickly get started with your fastening work.
