Product description

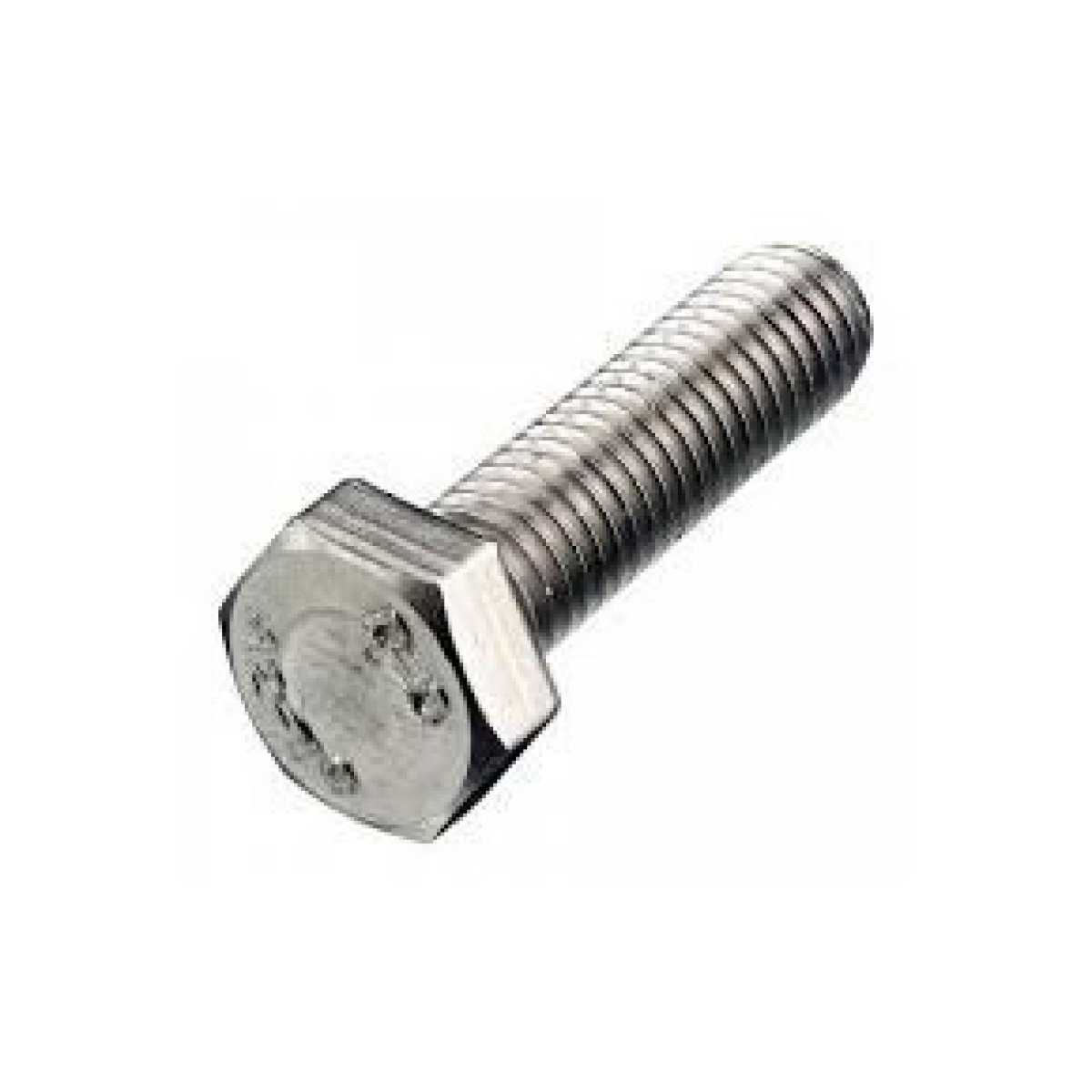

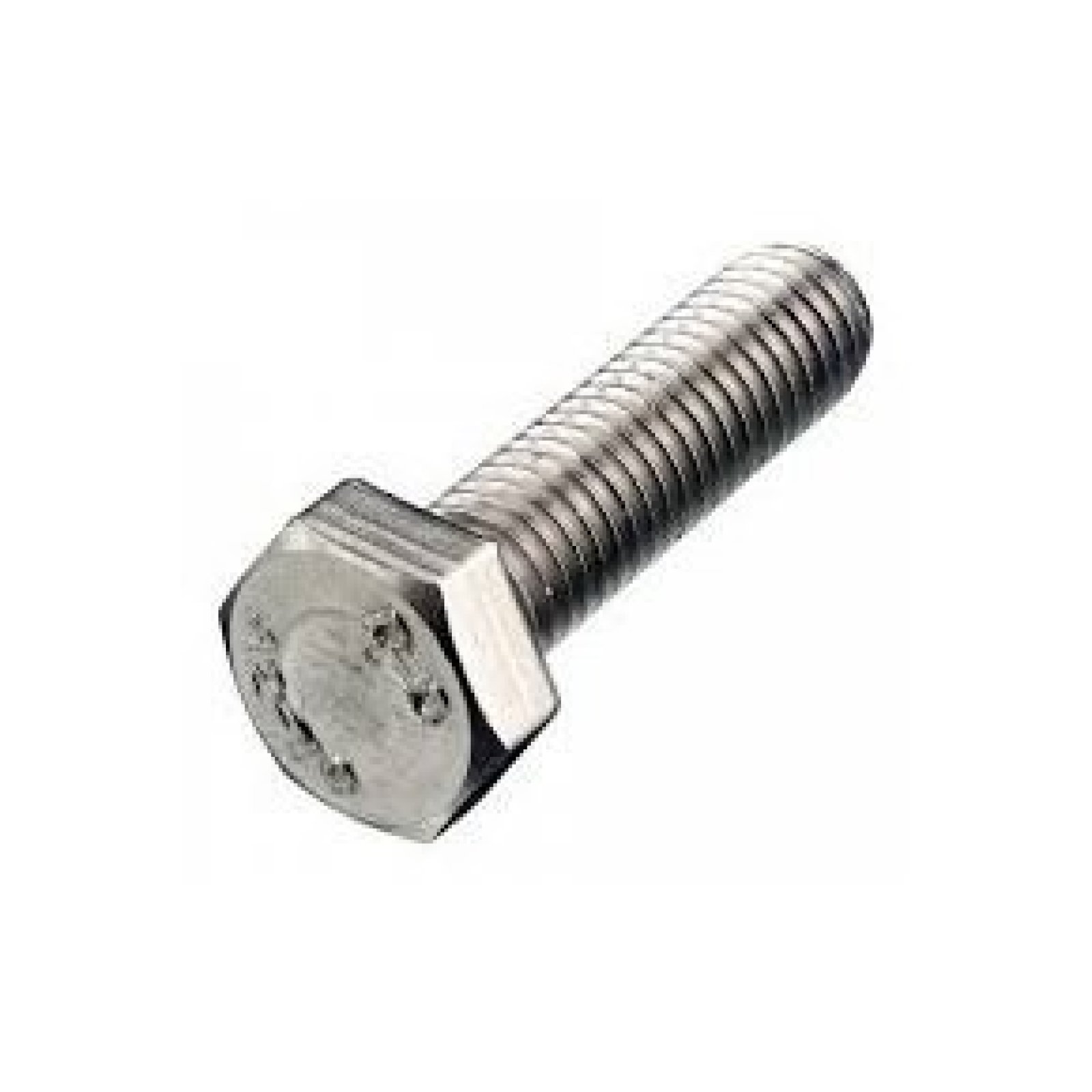

This stainless steel A2 hex bolt according to DIN 933 standard has a diameter of M14 and a length of 55 mm. The bolt is fully threaded with metric thread and features a hexagon head for easy installation with a 22 mm wrench size.

Material specifications

The hex bolt is made of stainless steel type A2, also known as AISI 304. This material offers excellent corrosion resistance under normal atmospheric conditions and in humid environments.

Technical specifications

• Diameter (d): M14
• Length (l): 55 mm
• Head height (k): 8.8 mm
• Wrench size (s): 22 mm
• Thread pitch (P): 2 mm
• Standard: DIN 933 / ISO 4017
• Material: Stainless steel A2 (AISI 304)
• Strength class: 70

Applications

This hex bolt is suitable for various applications in the automotive sector, mechanical engineering, and construction. Thanks to the full thread and stainless steel material, the bolt is ideal for connections exposed to moisture and other corrosive influences.

Advantages

• Corrosion resistant: Suitable for use in humid and mildly corrosive environments.
• Easy installation: Hexagon head allows quick and secure installation with standard tools.
• Versatile: Applicable in various sectors and constructions.

Standards and certifications

This hex bolt complies with DIN 933 and ISO 4017 standards, ensuring consistency in dimensions and quality.

Packaging

The hex bolts are supplied in packs of 10 pieces, which is convenient for both small and larger projects.
