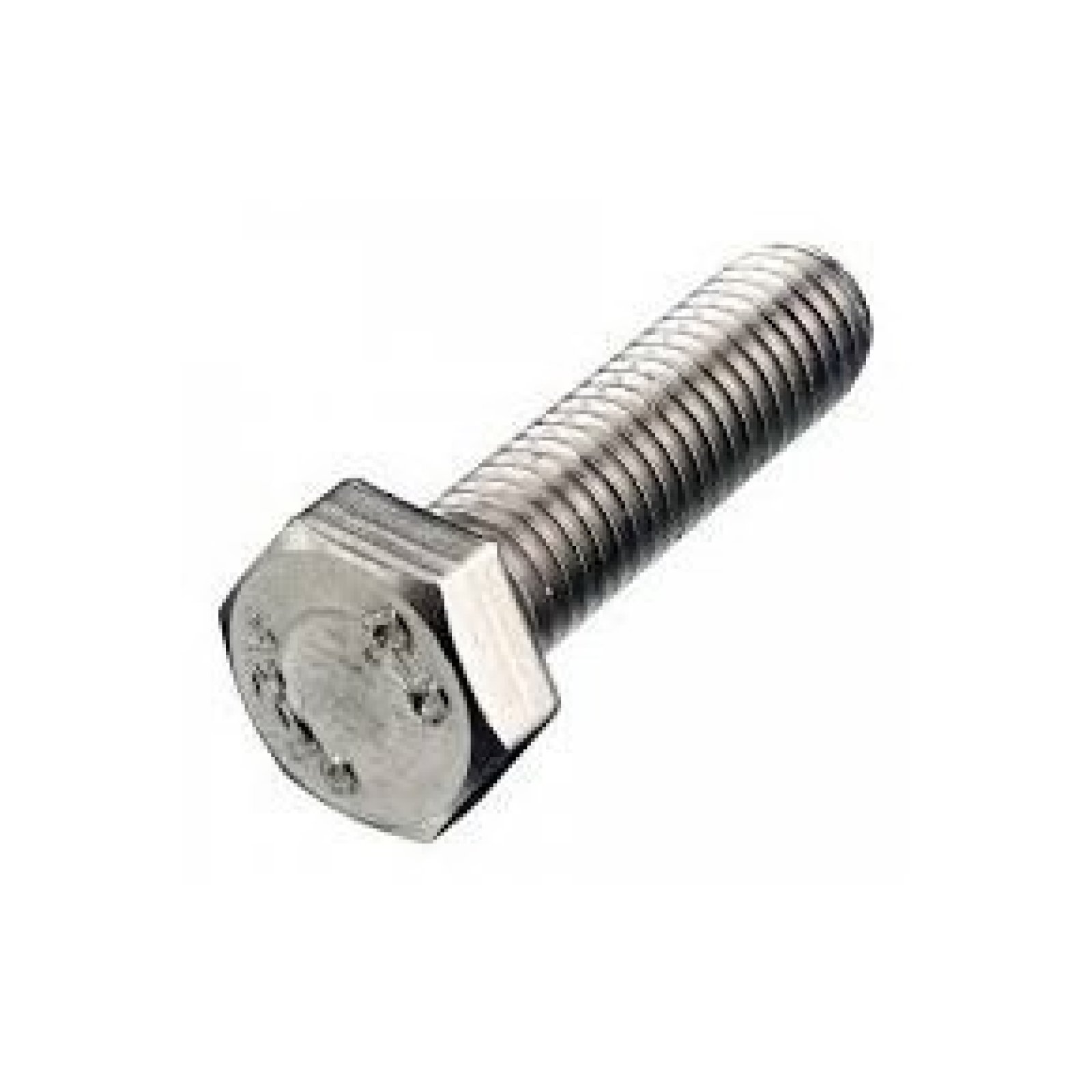

High-quality stainless steel A2 hexagon set screw M6x10 mm

This hexagon set screw with a diameter of M6 and a length of 10 mm is made from A2 grade stainless steel. Thanks to the fully metric thread and hexagon head, this bolt is suitable for various applications where corrosion resistance and reliability are required.

Technical specifications

• Diameter (d): M6
• Length (l): 10 mm
• Head height (k): 4 mm
• Wrench size (s): 10 mm
• Thread type: Metric, fully threaded
• Material: Stainless steel A2 (AISI 304)
• Standard: DIN 933 / ISO 4017
• Strength class: 70

Applications and benefits

This stainless steel A2 hexagon set screw is ideal for use in humid environments and outdoor installations, thanks to the excellent corrosion resistance of A2 stainless steel. The fully threaded design ensures a strong and reliable connection, while the hexagon head is easy to tighten with standard tools.

• Suitable for construction and assembly work
• Resistant to rust and corrosion
• Easy to install with standard hex keys

Compatibility and accessories

For optimal fastening, it is recommended to combine this set screw with matching stainless steel A2 nuts and washers. This ensures uniform corrosion resistance and a strong connection.

• Matching nut: DIN 934 / ISO 4032 hexagon nut M6 stainless steel A2
• Matching washer: DIN 125 flat washer M6 stainless steel A2

Quality and standards

This set screw meets DIN 933 and ISO 4017 standards, ensuring consistent dimensions and quality. The strength class 70 indicates a tensile strength of 700 N/mm², which is sufficient for most standard applications.

Practical tips for use

• Use a 10 mm wrench size to tighten the bolt.
• Ensure that the materials to be joined are suitable for A2 stainless steel to prevent galvanic corrosion.
• Check if the length of 10 mm is sufficient for the thickness of the materials to be joined.

With this stainless steel A2 hexagon set screw M6x10 mm, you choose a reliable and durable solution for all your fastening needs.
