Features of the M10x160 carriage bolt

The M10x160 carriage bolt is made of steel with a strength class of 4.6 and has an electroplated finish. This provides increased corrosion resistance, making the bolt suitable for various applications.

• Diameter : M10
• Length : 160 mm
• Strength class : 4.6
• Finish : Electroplated

Design and functionality

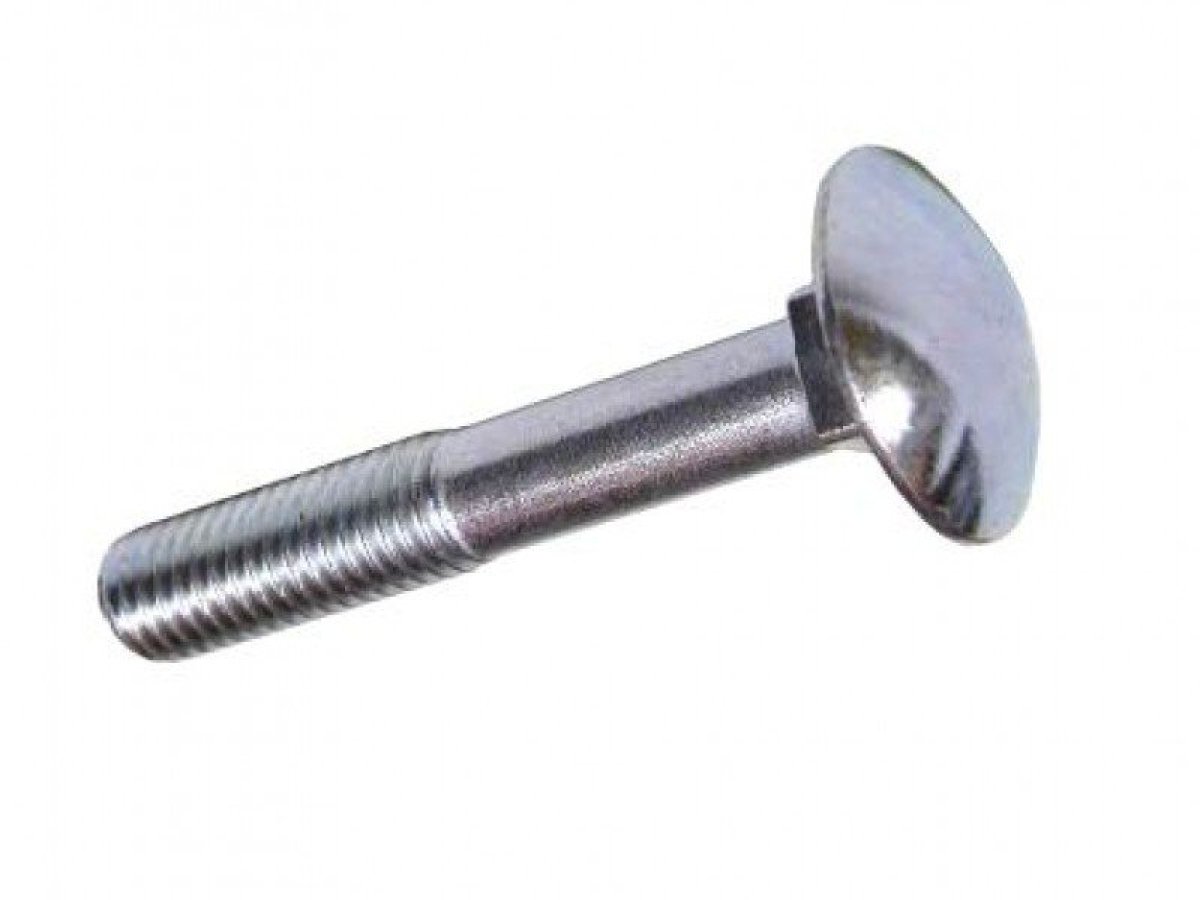

This carriage bolt features a round, low-domed head with a square section underneath. This design prevents turning during installation, resulting in a strong and reliable connection. The included hex nut (DIN 934) ensures a complete fastening set.

Applications in timber constructions

Carriage bolts like this are often used in timber constructions. They are ideal for:

• Canopies : Fastening wooden beams and girders.
• Greenhouses : Assembly of wooden frames and structures.
• Gates : Anchoring wooden panels and hinges.

Technical specifications

• Thread length : 32 mm
• Head diameter : 24.65 mm
• Head height : 5.38 mm
• Nut width across flats : 17 mm

Advantages of electroplating

The electroplated finish offers:

• Corrosion resistance : Protection against rust formation.
• Aesthetic finish : Smooth and shiny appearance.
• Durability : Extended bolt lifespan.

Standards and quality

This carriage bolt meets DIN 603/555 standards and has a strength class of 4.6. This guarantees reliable and safe use in various constructions.

Packaging and contents

The carriage bolts are supplied in sets of 50 pieces, including matching hex nuts. This ensures efficient and quick assembly in the workshop.
