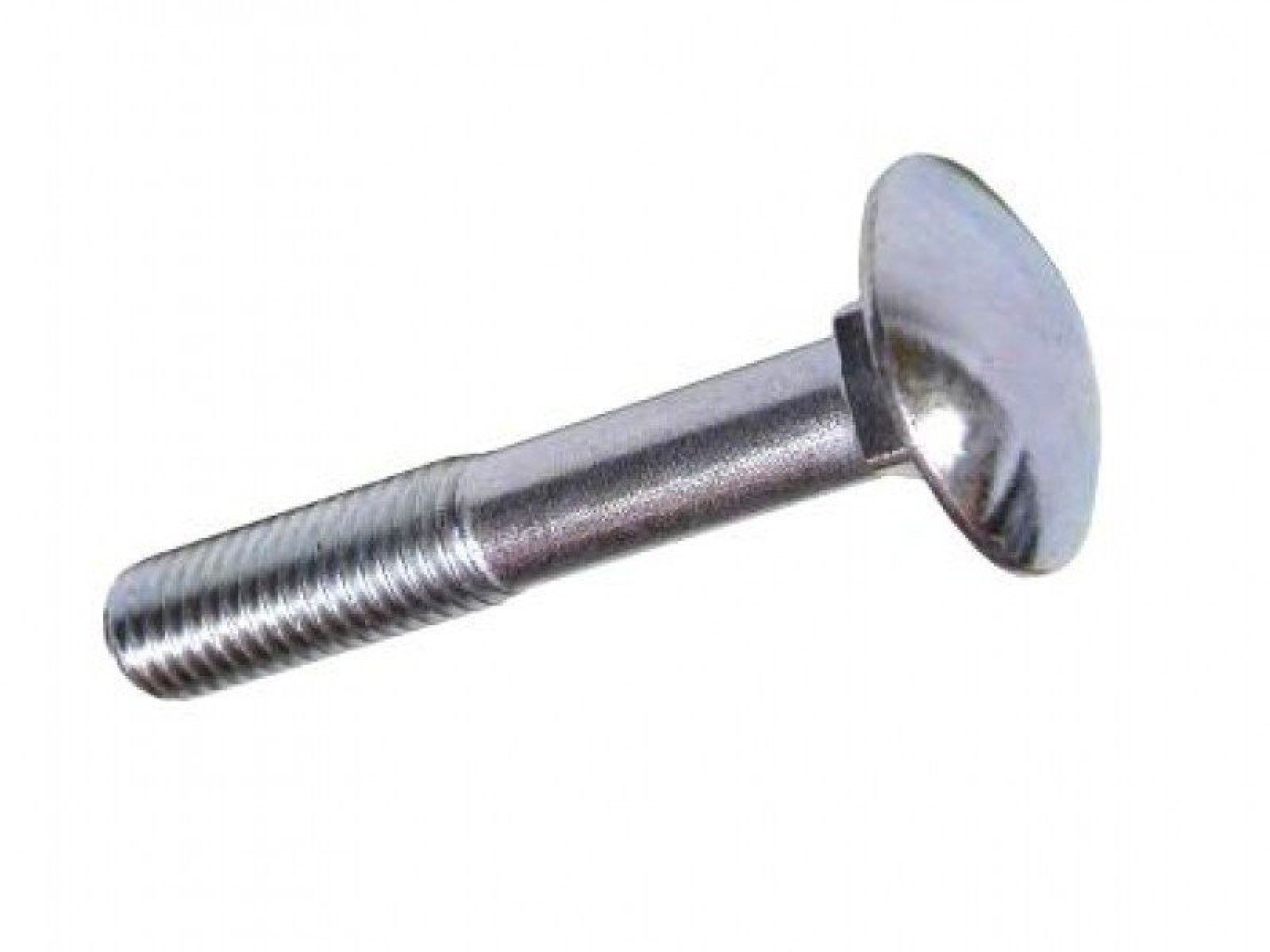

Features of the carriage bolt M6x50 mm

The M6x50 mm carriage bolt is made from high-quality steel and has an electrolytically galvanized finish. This provides excellent protection against corrosion, significantly extending the bolt's lifespan. The bolt has a strength class of 4.6, meaning it is suitable for applications with medium loads.

Technical specifications

• Thread size: M6
• Length: 50 mm
• Thread length: 18 mm
• Head diameter: 16.5 mm
• Head height: 3.9 mm
• Material: Steel
• Surface treatment: Electrolytically galvanized
• Strength class: 4.6
• Standard: DIN 603/555

Applications

These carriage bolts are ideal for securely connecting wooden and metal parts. They are often used in structures such as canopies, greenhouses, and gates. Thanks to the electrolytically galvanized finish, they are suitable for both indoor and outdoor applications.

Advantages of electrolytic galvanization

• Corrosion protection: The galvanized layer protects the steel from rust.
• Aesthetically pleasing: The smooth, shiny finish provides a neat appearance.
• Durability: Extended lifespan of the bolts due to increased resistance to weather influences.

Packaging and contents

This set contains 20 carriage bolts of M6x50 mm. The bolts are supplied without nuts, so you can choose the nuts that best suit your application.

Installation instructions

1. Preparation: Ensure that the materials to be joined are clean and dry.
2. Drill a hole: Drill a hole with a diameter of 6 mm at the desired location.
3. Insert the bolt: Insert the carriage bolt through the hole so that the round head is on the visible side.
4. Attach the nut: Screw a suitable nut onto the bolt on the other side and tighten it firmly with a wrench.

With these carriage bolts, you are assured of a reliable and durable connection for your projects.
