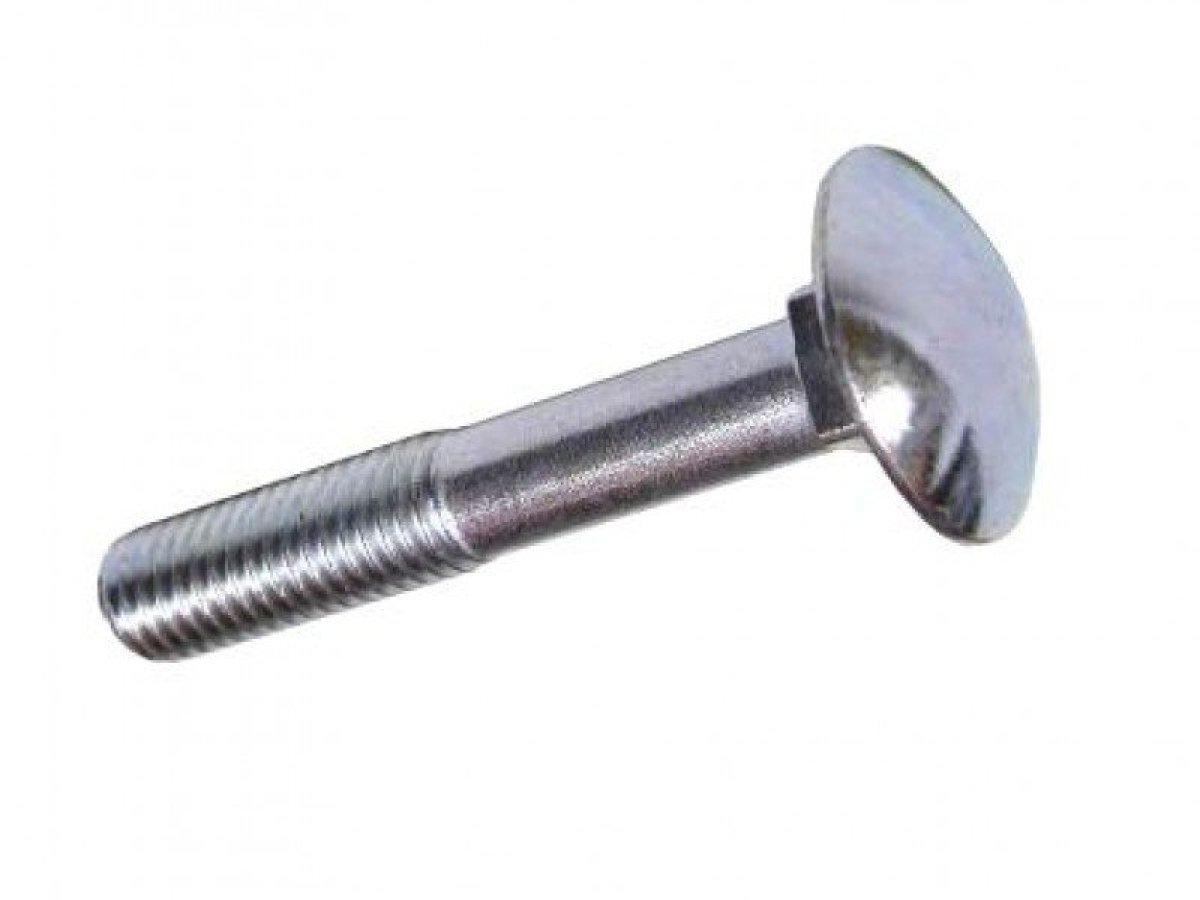

Robust carriage bolt for various applications

This carriage bolt with a diameter of M10 and a length of 120 mm is designed for strong fastening in a wide range of constructions. Thanks to the electrolytic galvanization, the bolt offers increased resistance to corrosion, which significantly extends its lifespan.

Technical specifications

• Diameter: M10
• Length: 120 mm
• Material: Steel
• Strength class: 4.6
• Surface treatment: Electrolytically galvanized
• Standard: DIN 603/555

Design and functionality

The bolt features a round low-profile head with a square section directly under the head. This design prevents rotation during tightening of the nut, ensuring a stable and secure fastening. The included hex nut allows the bolt to be firmly secured.

Areas of application

This carriage bolt is particularly suitable for:

• Wooden constructions such as canopies and gates
• Fastening metal parts to wooden structures
• Various automotive applications where strong fastening is required

Advantages of electrolytic galvanization

The electrolytic galvanization offers:

• Protection against rust and corrosion
• A smooth and aesthetic finish
• Extended lifespan of the bolt

Installation instructions

For optimal fastening:

1. Drill a hole with a diameter of 10 mm at the desired location.
2. Insert the carriage bolt through the hole, ensuring the square section grips well into the material.
3. Tighten the included hex nut until the desired tension is reached.

With this carriage bolt, you are assured of a reliable and durable fastening in your construction projects.
