Product description

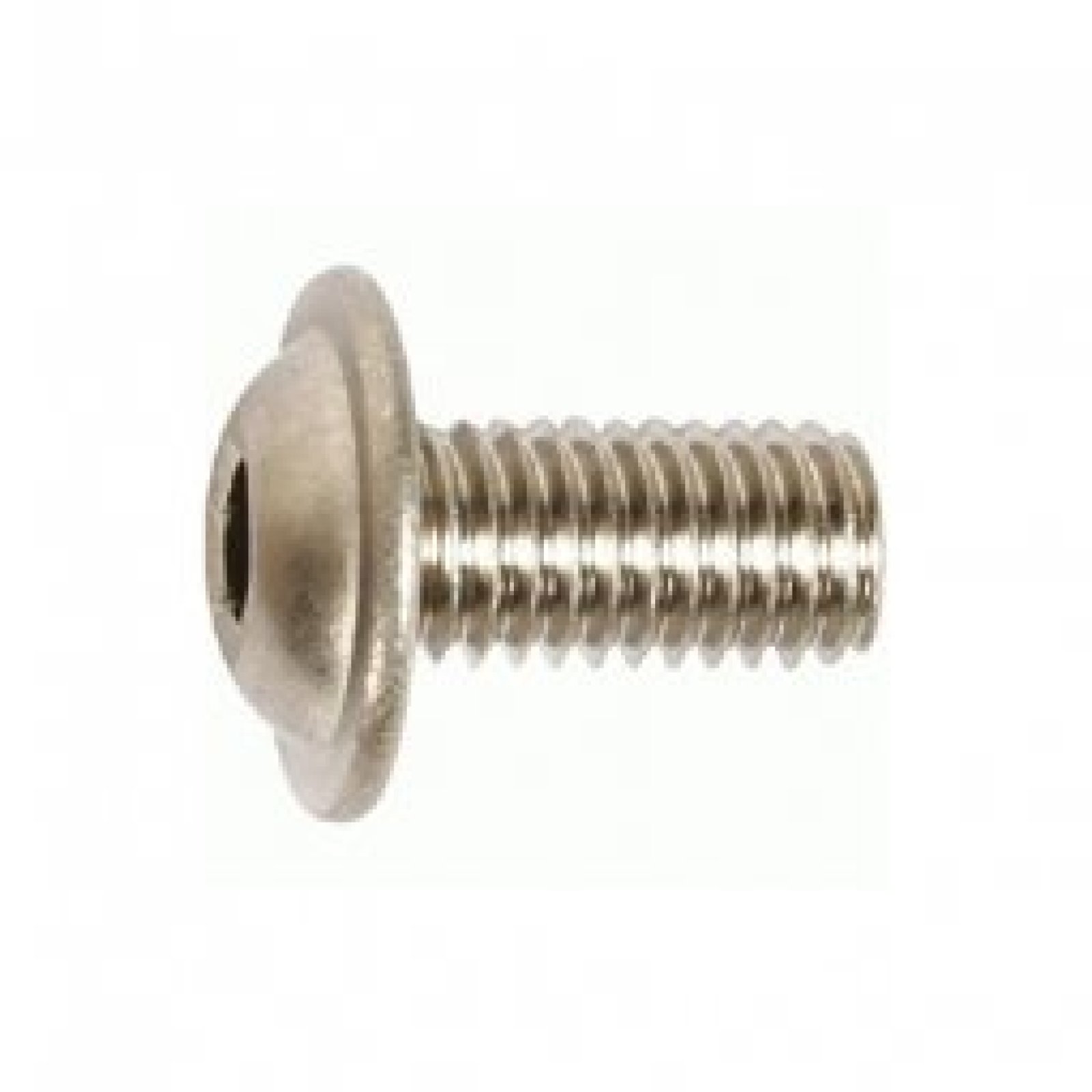

These low round head flange bolts with hex socket are designed according to the ISO 7380-2 standard and offer a reliable fastening solution for various applications. With a diameter of M5 and a length of 25 mm, they are suitable for a wide range of assembly tasks.

Material and finish

The bolts are made of steel with a strength class of 10.9, ensuring high tensile strength and durability. The electroplated zinc (EV) finish provides an extra layer of protection against corrosion, making the bolts suitable for use in different environments.

Technical specifications

• Diameter (d): M5
• Length (L): 25 mm
• Head height (k): 2.75 mm
• Head diameter (dc): 11.8 mm
• Wrench size (s): 3 mm
• Thread direction: Right
• Thread type: Metric thread

Applications

These bolts are ideal for applications where a low profile and a wide contact surface are desired. The integrated flange distributes the load evenly, contributing to a strong and secure connection. They are often used in the automotive sector, mechanical engineering, and other industrial applications.

Advantages

• High strength: Thanks to the 10.9 strength class, these bolts offer excellent tensile strength.
• Corrosion resistant: The electroplated finish protects against rust formation.
• Efficient assembly: The hex socket drive allows for quick and easy installation using an Allen key.

Packaging

This set contains 100 low round head flange bolts, which is sufficient for both small and larger projects. The bolts are carefully packed to prevent damage during transport.

Standardization

These bolts comply with the ISO 7380-2 standard, ensuring consistency in quality and dimensions.

Important notes

When electroplating steel products, there is a risk of hydrogen embrittlement. It is advisable to take this into account for critical applications.
