Product description

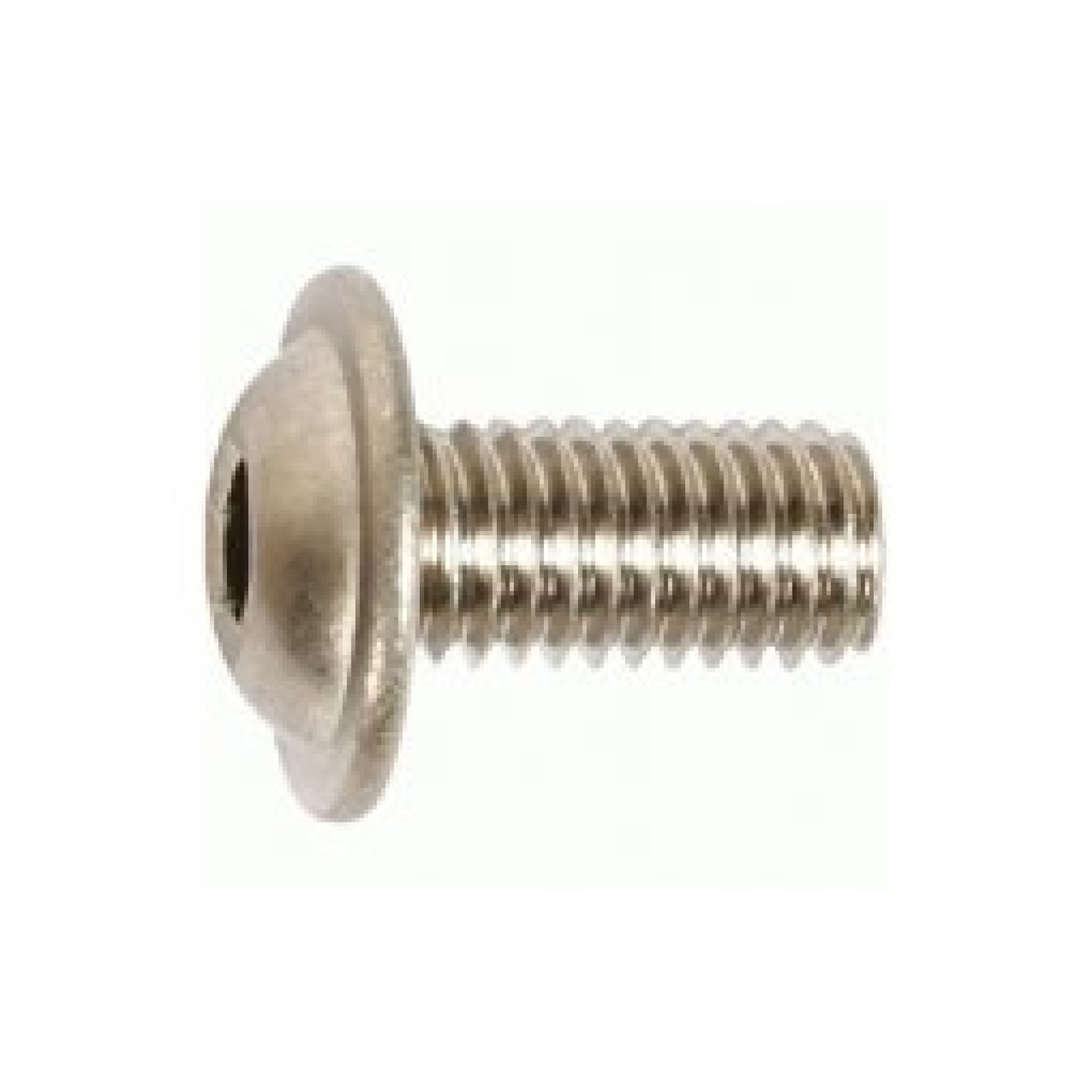

This low dome head flange bolt M6x8 is designed for applications where a compact head and even force distribution are essential. The integrated flange provides a larger contact surface, reducing pressure on the fastened material.

Specifications

• Diameter: M6
• Length: 8 mm
• Head height: 3.3 mm
• Flange thickness: 1.2 mm
• Head diameter: 13.6 mm
• Drive: Internal hex (wrench size 4 mm)
• Material: Steel, strength class 8.8
• Surface treatment: Electrolytically zinc-plated
• Standard: ISO 7380-2

Applications

These bolts are ideal for:

• Fastening car body parts
• Assembly of machine components
• Constructions where a low profile and strong fastening are required

Benefits

• Even force distribution: The flange increases the contact area, reducing pressure on the material.
• Compact design: The low dome head ensures a sleek appearance and prevents protruding parts.
• Durability: The electrolytic zinc plating provides protection against corrosion, extending the bolt's lifespan.

Packaging

These bolts are supplied in a pack of 100 pieces, suitable for both professional and private use.

Installation

For optimal performance, it is recommended to use a 4 mm internal hex key during assembly. Make sure the bolts are tightened correctly according to the recommended torque for M6 bolts in strength class 8.8.

Compatibility

These bolts are compatible with nuts and other fastening materials with metric M6 thread, making them versatile for various applications.
