Application and functionality

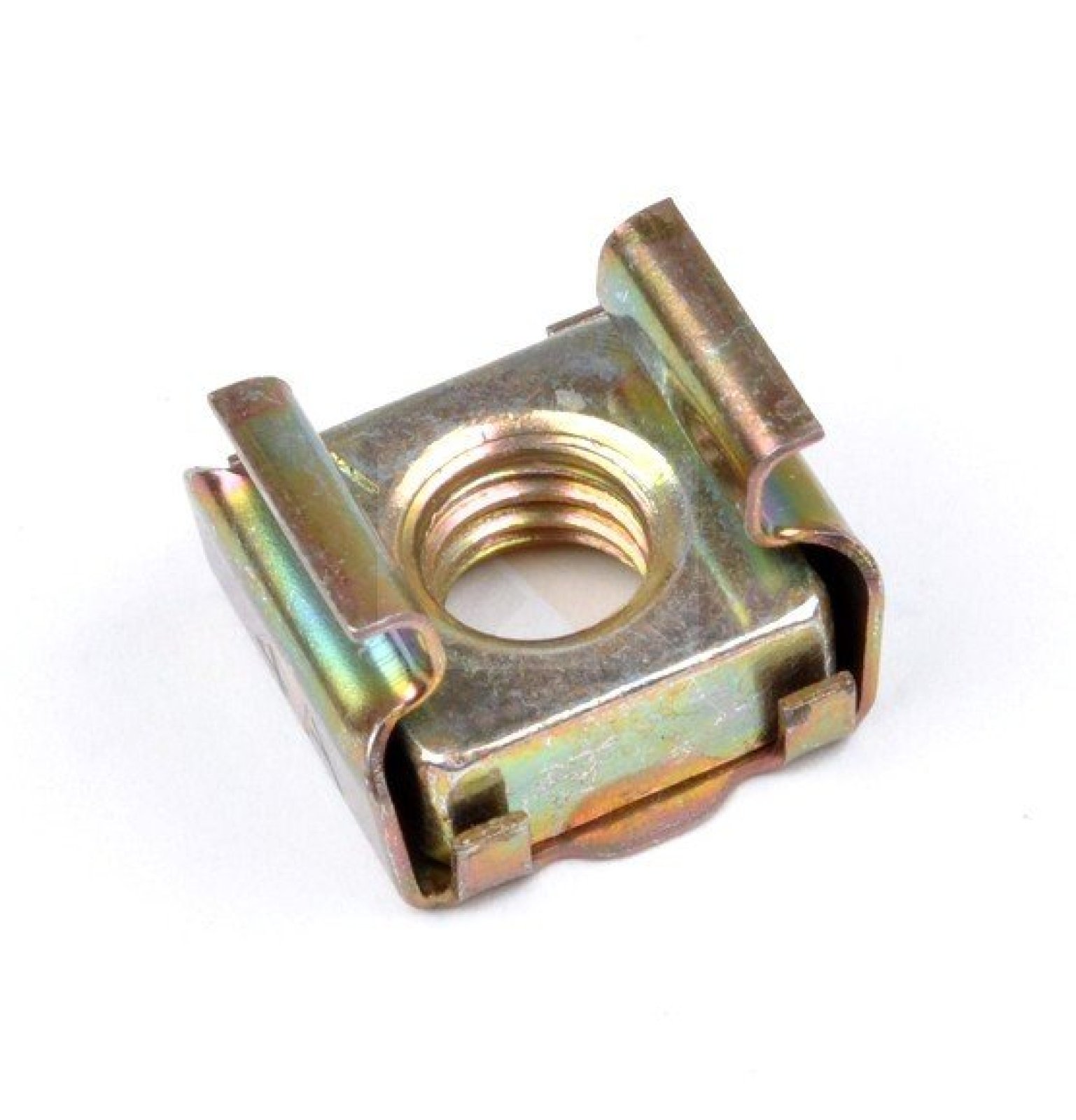

The Cage nut SMG A M8 is designed for a strong and reliable fastening in thin sheet materials with a thickness between 1.0 and 1.7 mm. Thanks to the cage concept, the nut can easily be placed in a square hole, after which it remains firmly in place. This makes it possible to screw in bolts from the outside without needing to hold them at the back.

Material and finish

This cage nut is made of high-quality spring steel, which ensures excellent resilience and durability. The electrolytic zinc plating provides an extra protective layer against corrosion, making the nut suitable for use in various environments, including humid conditions.

Technical specifications

• Thread diameter: M8
• Suitable sheet thickness: 1.0 to 1.7 mm
• Material: Spring steel
• Surface treatment: Electrolytically zinc plated
• Dimensions:
• a: 16.6 mm
• b: 16 mm
• c: 7.8 mm
• d-D: M8
• g: 12.1 mm
• r: 0.5 mm
• s: 0.6 mm

Advantages of the Cage nut SMG A M8

• Easy installation: Can be quickly placed in a square hole without special tools.
• Strong fastening: Remains firmly in place, ensuring a reliable connection.
• Corrosion resistant: Thanks to the electrolytic zinc plating, the nut is resistant to rust.
• Versatile use: Suitable for various applications in the automotive sector and other industries where thin sheet materials are used.

Areas of application

The Cage nut SMG A M8 is widely used in:

• Automotive industry: For mounting panels, trim, and other components in cars.
• Electronics: Fastening components in enclosures and control cabinets.
• Machine building: Assembly of parts in machines and devices.

With the Cage nut SMG A M8 you are assured of a reliable and durable fastening solution for thin sheet materials.
